Cooling Fan: Removal: Notes

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain engine coolant from radiator. Refer to "Changing Engine Coolant  ".
    CAUTION:
    • Perform this step when engine is cold.
    • Do not spill engine coolant on drive belts.
  2. Remove air duct (inlet) and air cleaner case. Refer to AIR CLEANER AND AIR DUCT .
  3. Disconnect radiator hose (upper) at radiator side.
  4. Disconnect fan motor harness connectors at the right-lower portion of fan shroud.

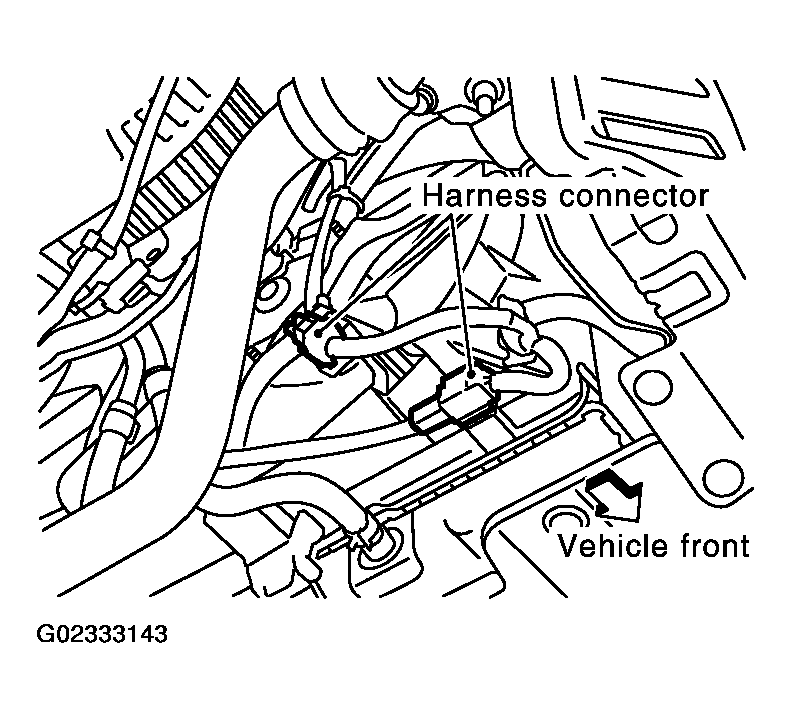

    Fig 1: Locating Harness Connector
    G02333143Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove radiator cooling fan assembly.
    CAUTION: Be careful not to damage or scratch on radiator core.
