Standards By Consult-II

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Items displayed are data calculated by control unit and may indicate normal operation even if output circuit (harness) is open or shorted

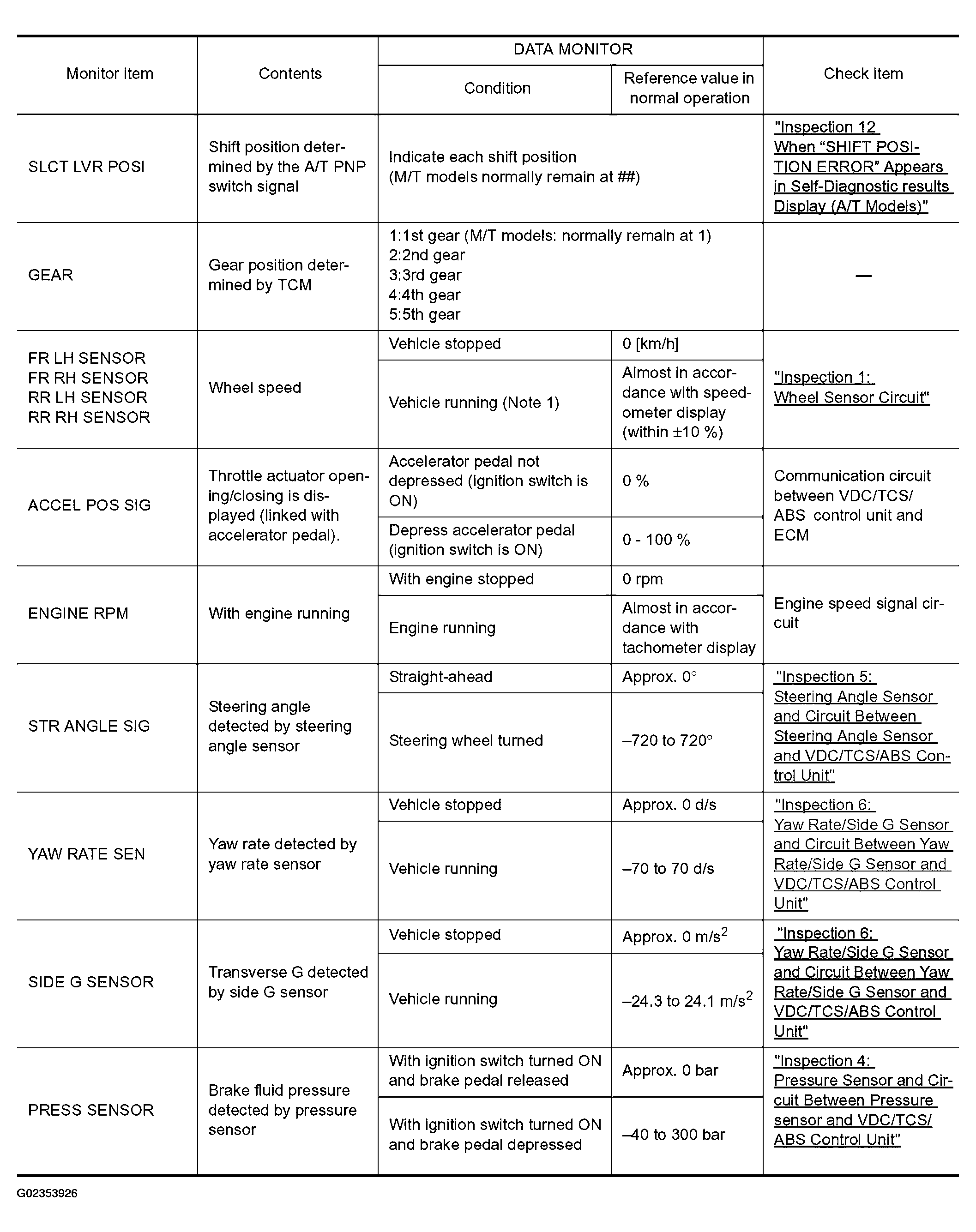

Fig 1: Control Unit Input/Output Signal Standard Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

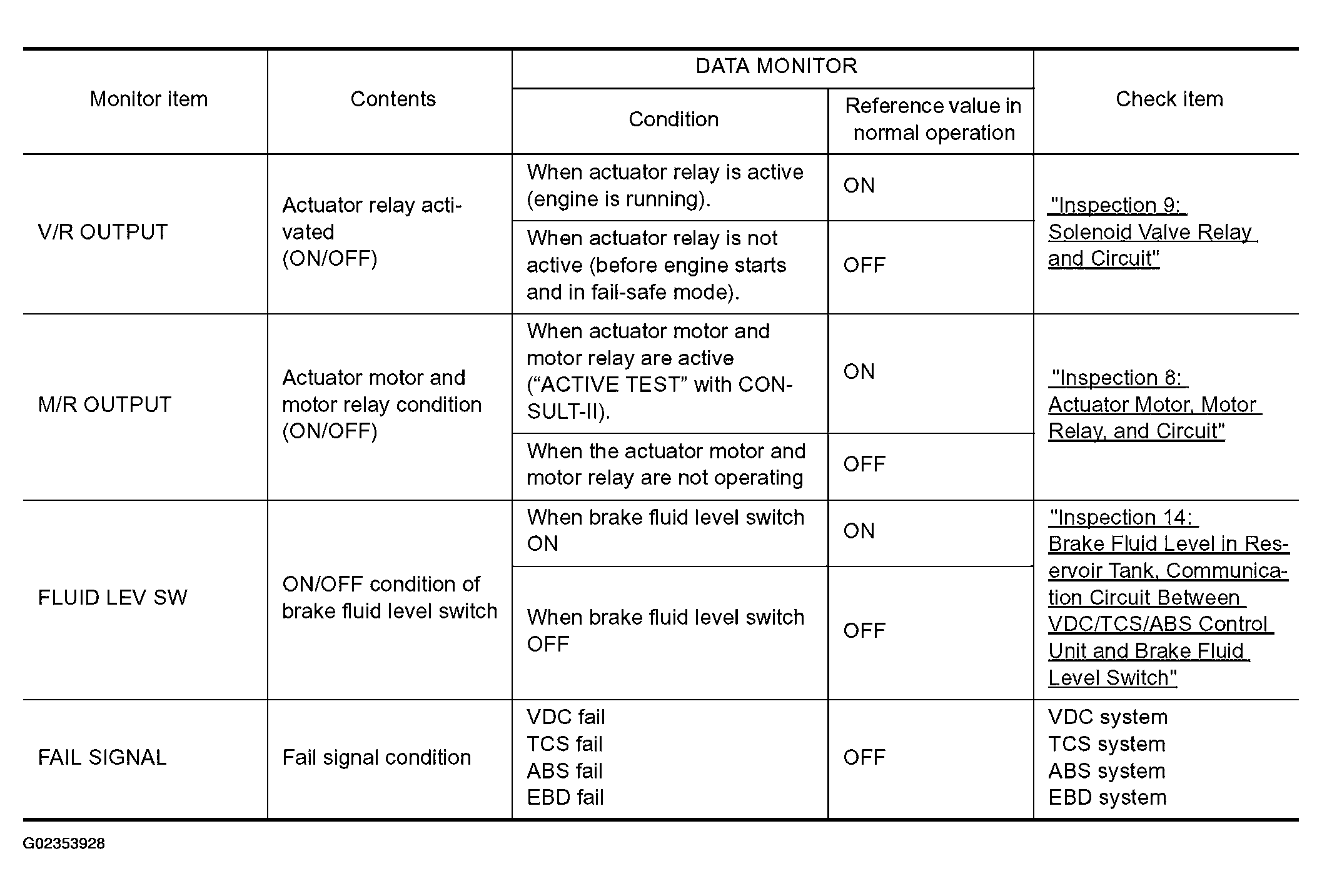

Fig 2: Control Unit Input/Output Signal Standard Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

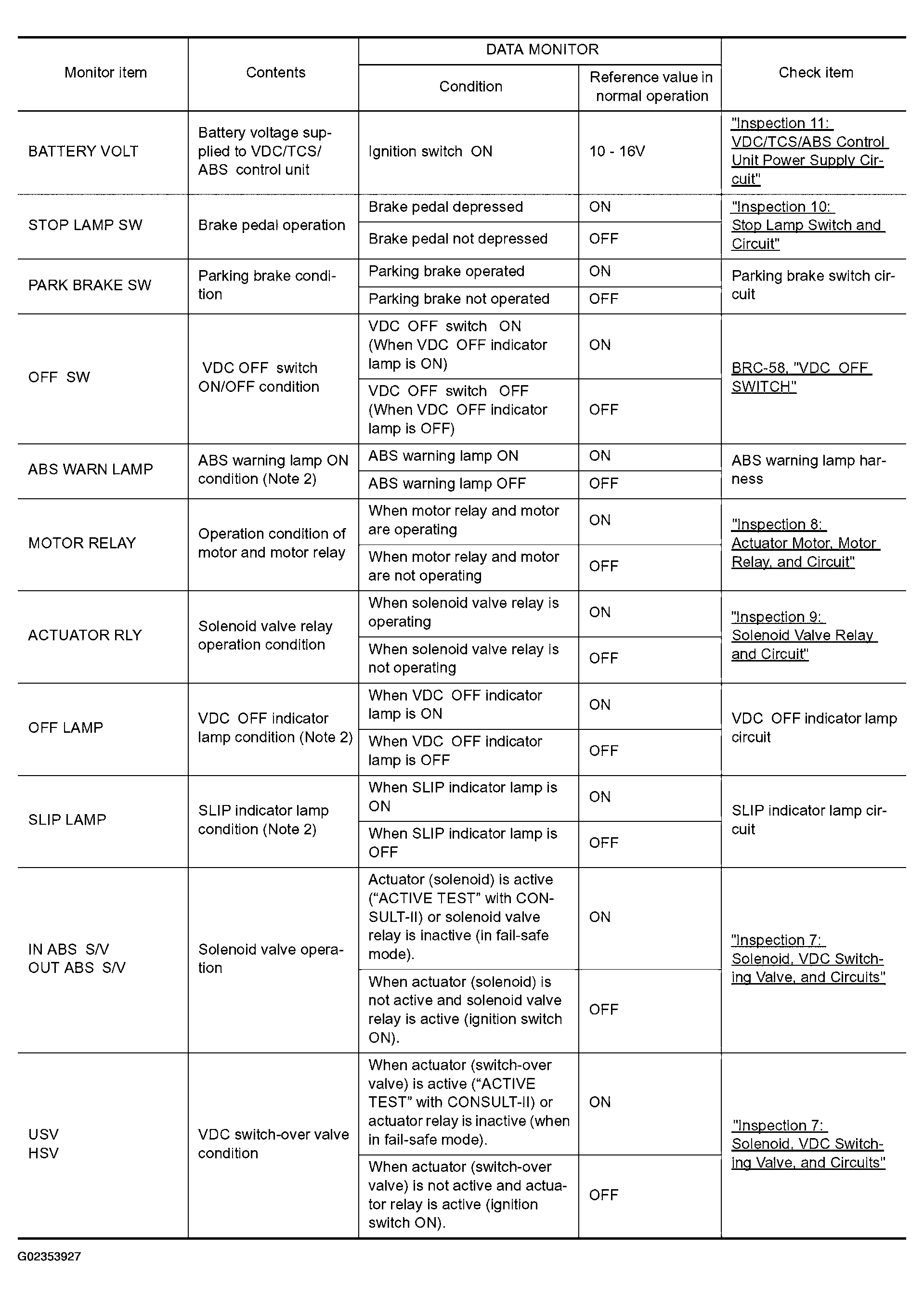

Fig 3: Control Unit Input/Output Signal Standard Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
