Check Door Switch

With CONSULT-II

Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL" and "DOOR SW-RR") in "DATA MONITOR" mode with CONSULT-II.

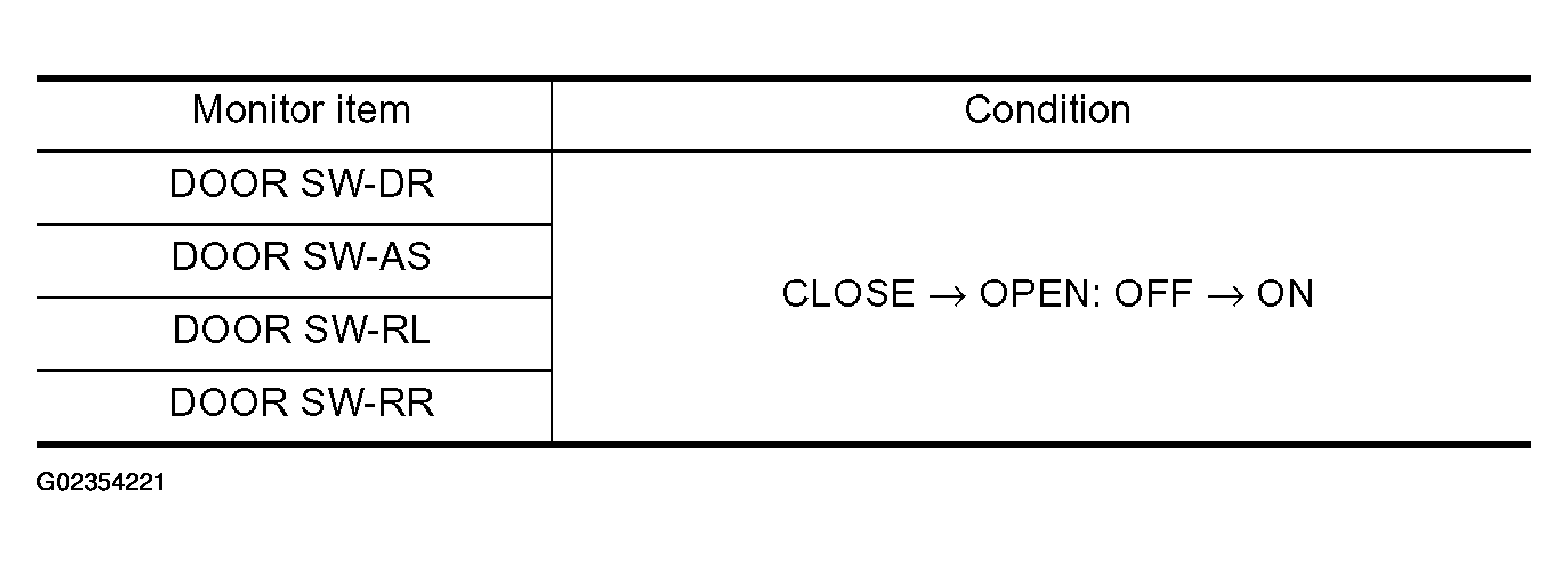

Fig 1: Door Switch Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

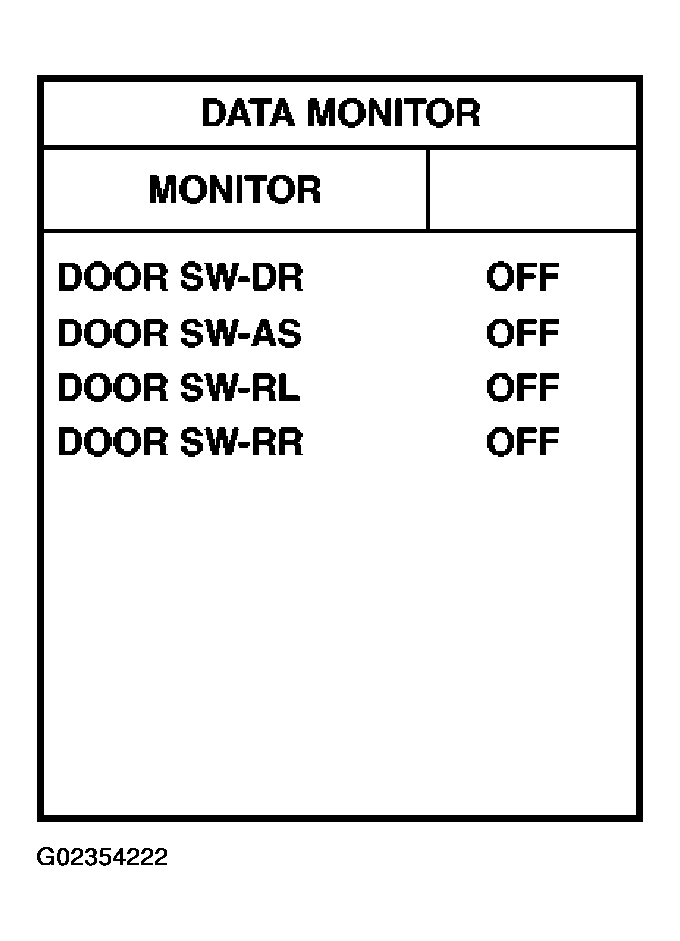

Fig 2: Consult-II Data Monitor Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

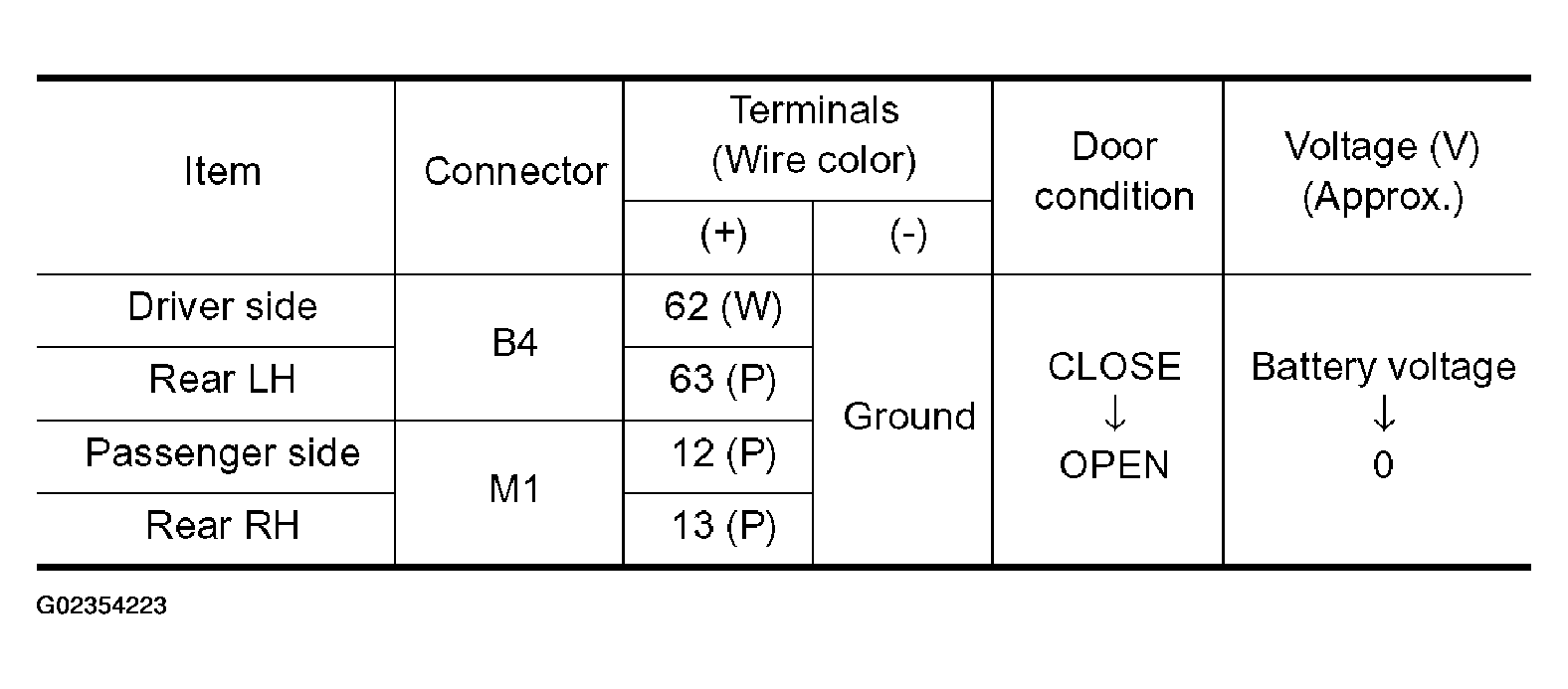

Fig 3: BCM Connector And Ground Voltage Table

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Door switch circuit is OK.
2. NG: GO TO 2.

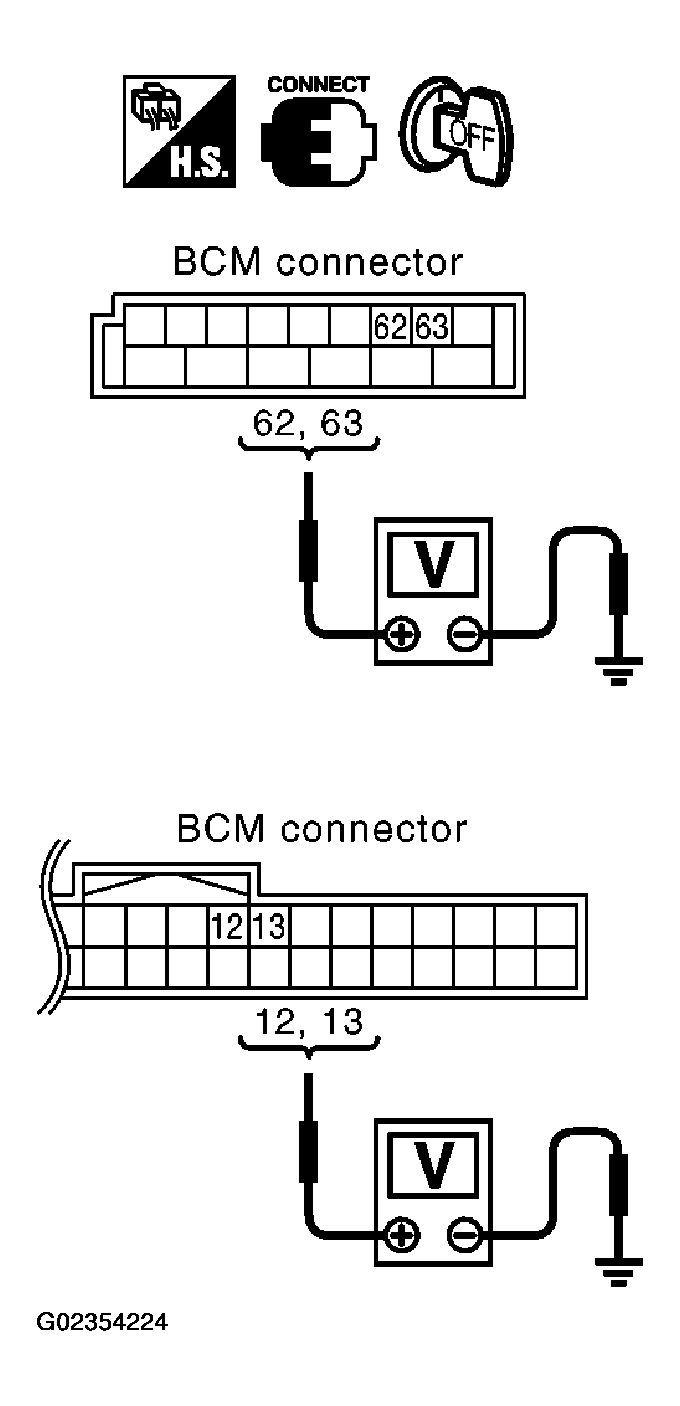

   Fig 4: Checking Voltage Between BCM Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect door switch connector.
3. Check continuity between door switch terminal 1 and ground part of door switch.

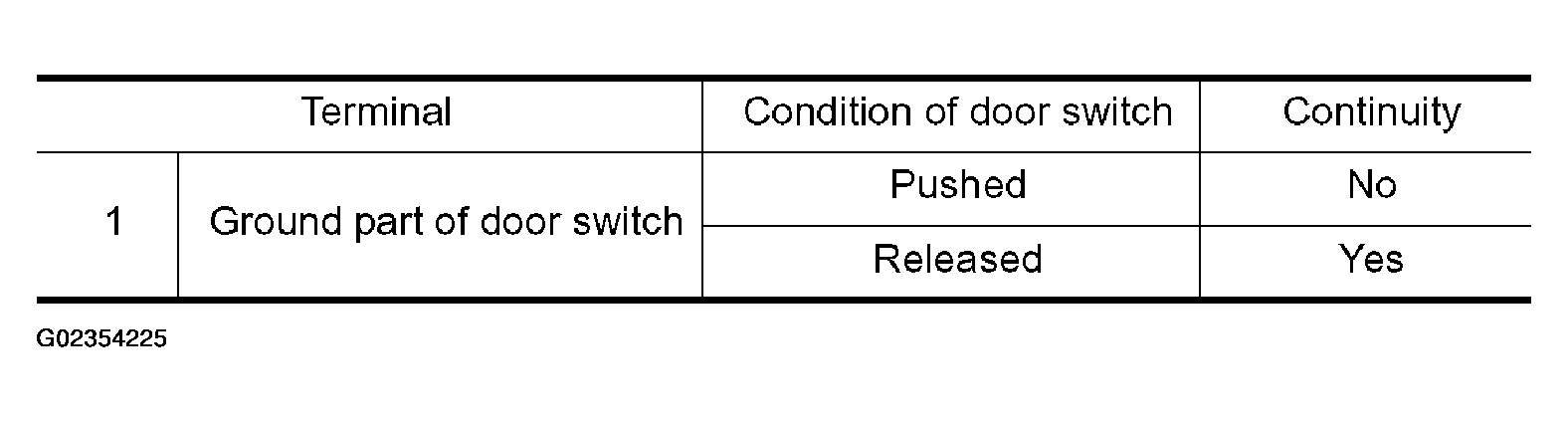

   Fig 5: Door Switch Terminal 1 And Ground Part Of Door Switch Continuity Table

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Replace door switch.

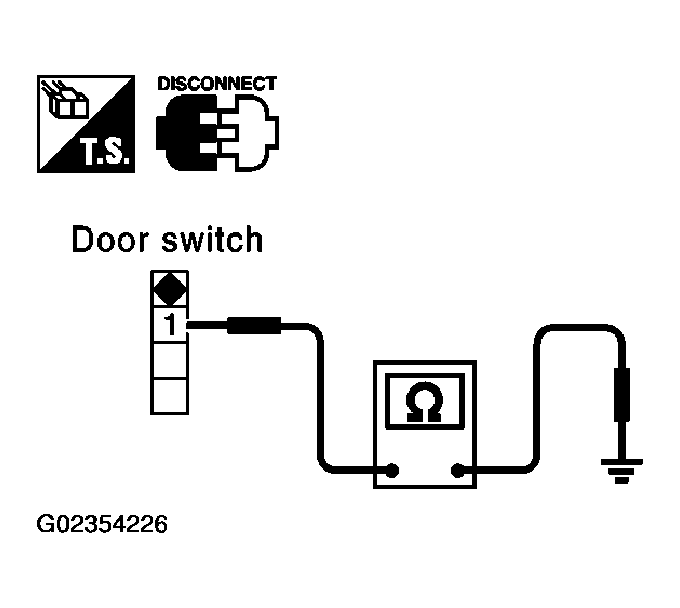

   Fig 6: Checking Continuity Between Door Switch Terminal 1 And Ground Part Of Door Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM connector.

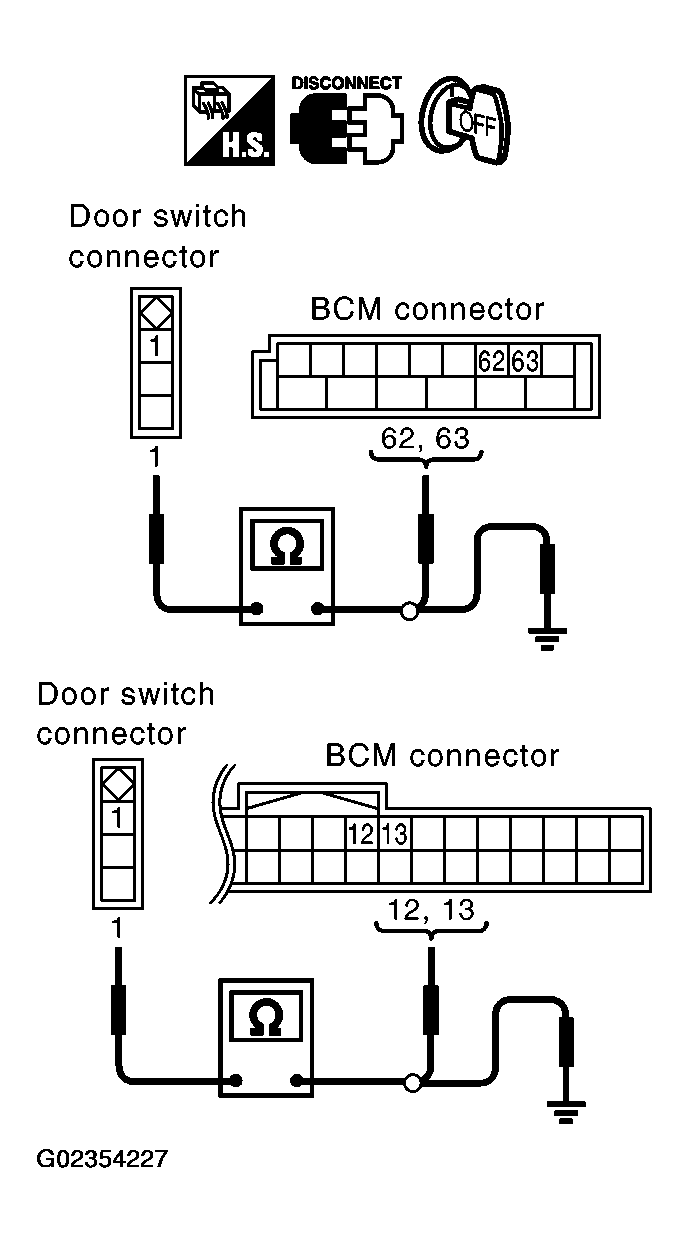

2. Check continuity between door switch connector B17, B20, B23, B32 terminals 1 and BCM connector M1, B4 terminals 62, 12, 63, 13.

   Driver side door

   1 (W) - 62 (W): Continuity should exist.

   Passenger side door

   1 (P) - 12 (P): Continuity should exist.

   Rear door LH

   1 (P) - 63 (P): Continuity should exist.

   Rear door RH

   1 (P) - 13 (P): Continuity should exist.

3. Check continuity between door switch connector B17, B20, B23, B32 terminal 1 and ground.

   1 (W or P) - Ground: Continuity should not exist.

   Fig 7: Checking Continuity Between Door Switch Connector B17, B20, B23, B32 Terminal 1 And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Check door switch case ground condition.
2. NG: Repair or replace harness.
