Oil Level

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before starting engine, put vehicle horizontally and check the oil level. If engine is already started, stop it and allow 10 minutes before checking.

Pull out oil level gauge and wipe it clean.
Insert oil level gauge and make sure the oil level is within the range shown in the figure.
If it is out of range, adjust it.

Fig 1: Identifying Oil Level
Courtesy of NISSAN MOTOR CO., U.S.A.

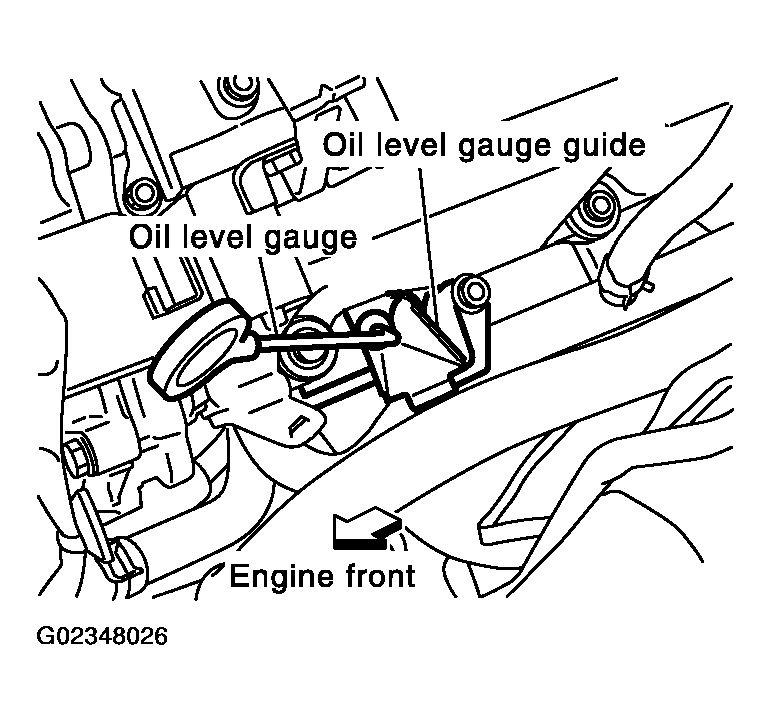

NOTE: When checking oil level, insert oil level gauge with its tip aligned with oil level gauge guide on cylinder head. (In the figure, air cleaner case and air duct are removed.)

Fig 2: Inspecting Oil Level Using Oil Level Gauge

Courtesy of NISSAN MOTOR CO., U.S.A.
