CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

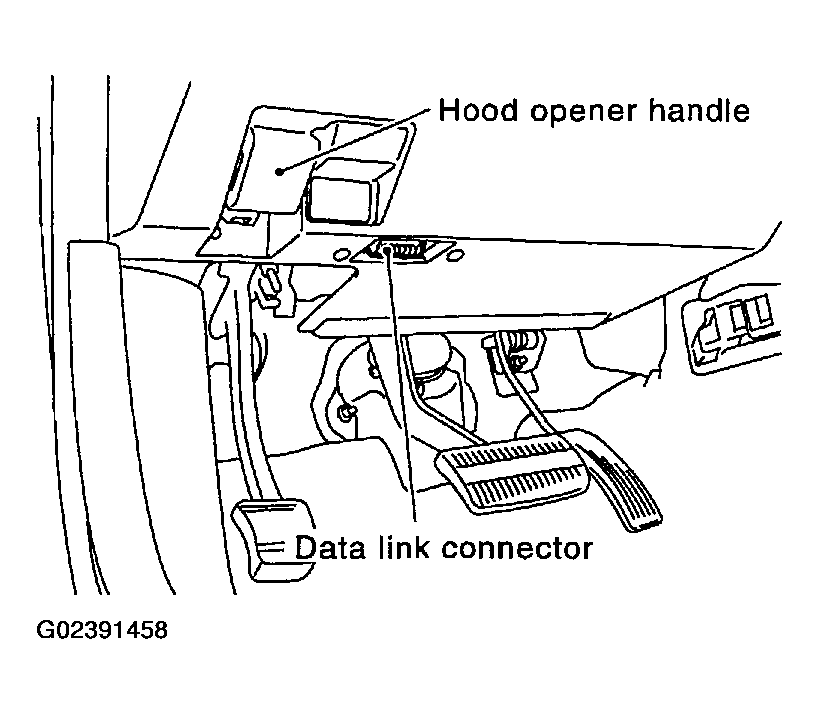

Fig 1: Locating Data Link Connector (DLC)
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

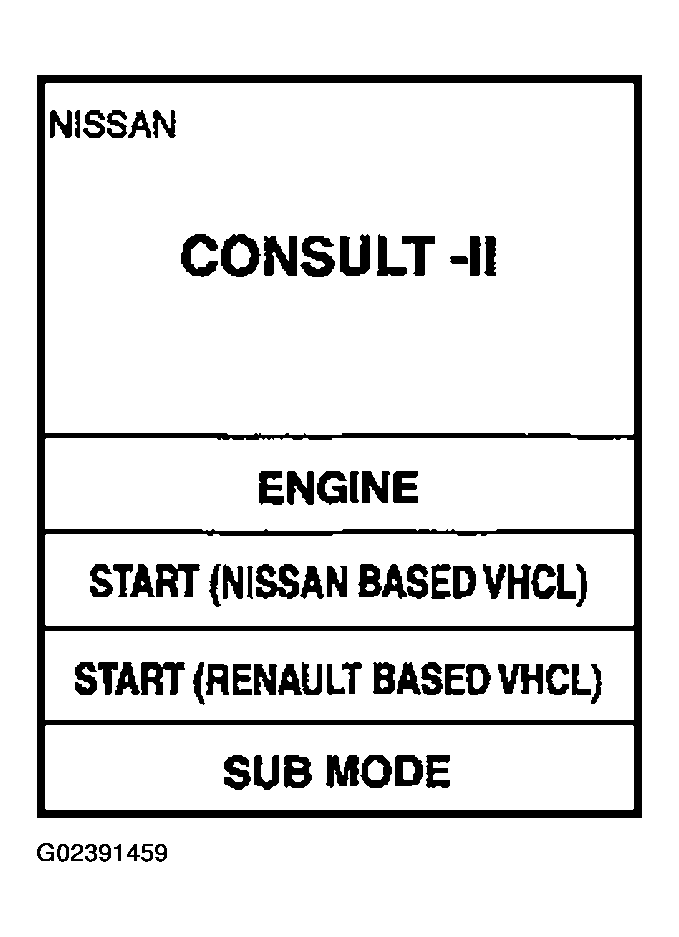

Fig 2: Identifying Start (Nissan Based VHCL) Display On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM.
If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

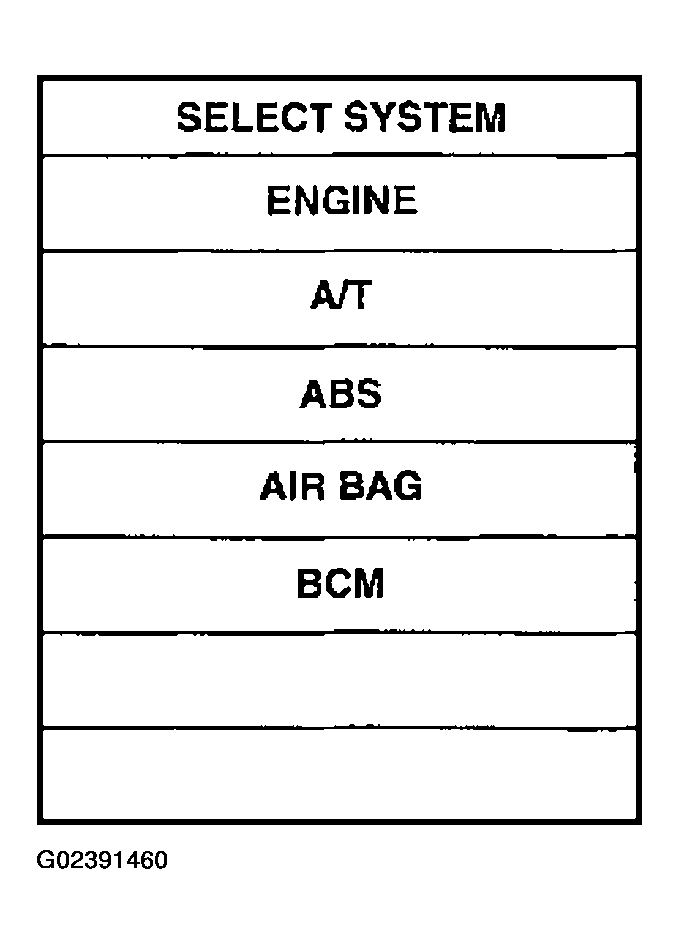

Fig 3: Identifying BCM Display On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch REAR DEFOGGER.

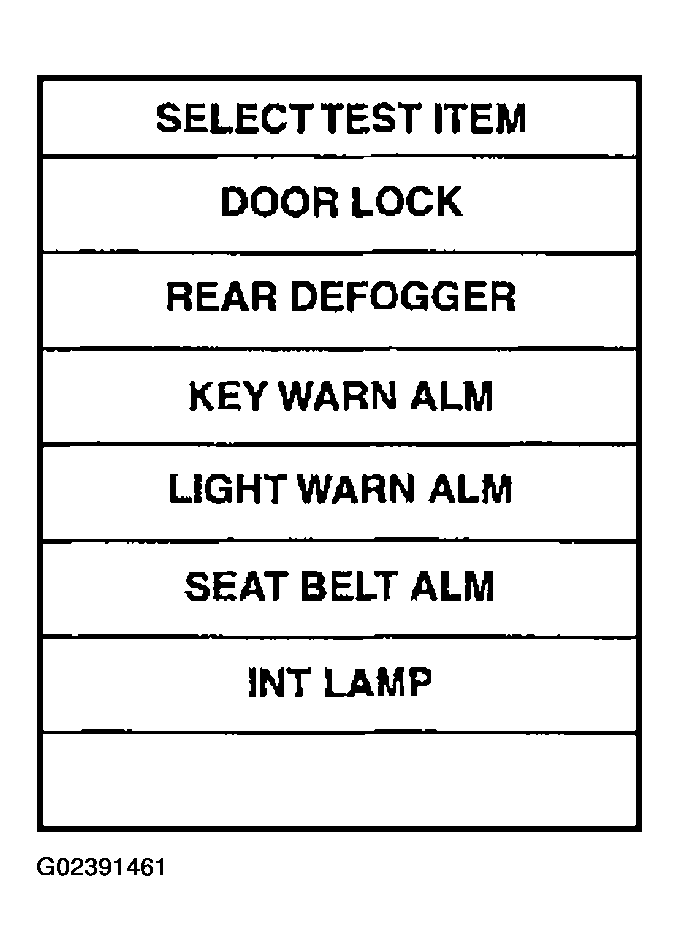

Fig 4: Identifying Rear Defogger Display On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode, DATA MONITOR and ACTIVE TEST.

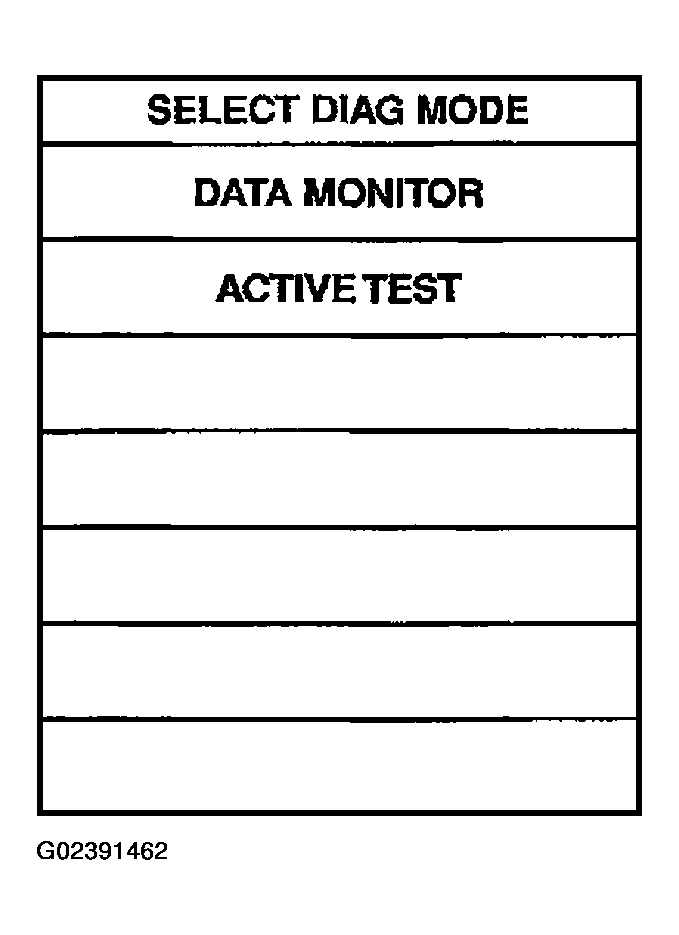

Fig 5: Identifying Data Monitor And Active Test Display On CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
