WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity and operation delay time under the following conditions.

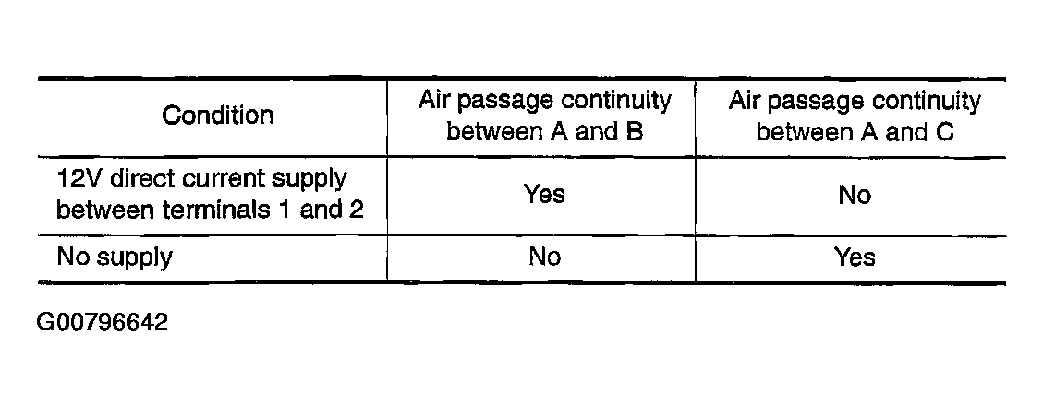

Fig 1: Inspecting Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

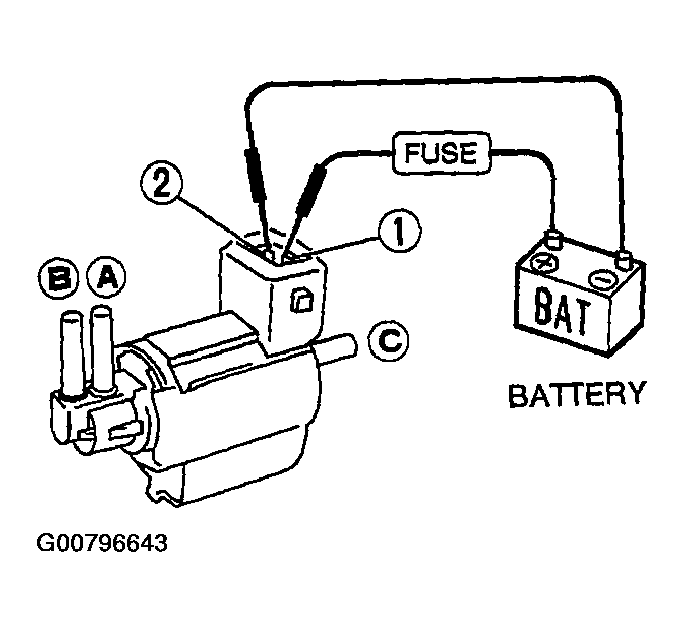

Fig 2: Manually Checking Solenoid

Courtesy of NISSAN MOTOR CO., U.S.A.
