With CONSULT-II

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect vacuum hose to EVAP canister purge volume control solenoid valve at EVAP service port.
  2. Start engine.
  3. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode.

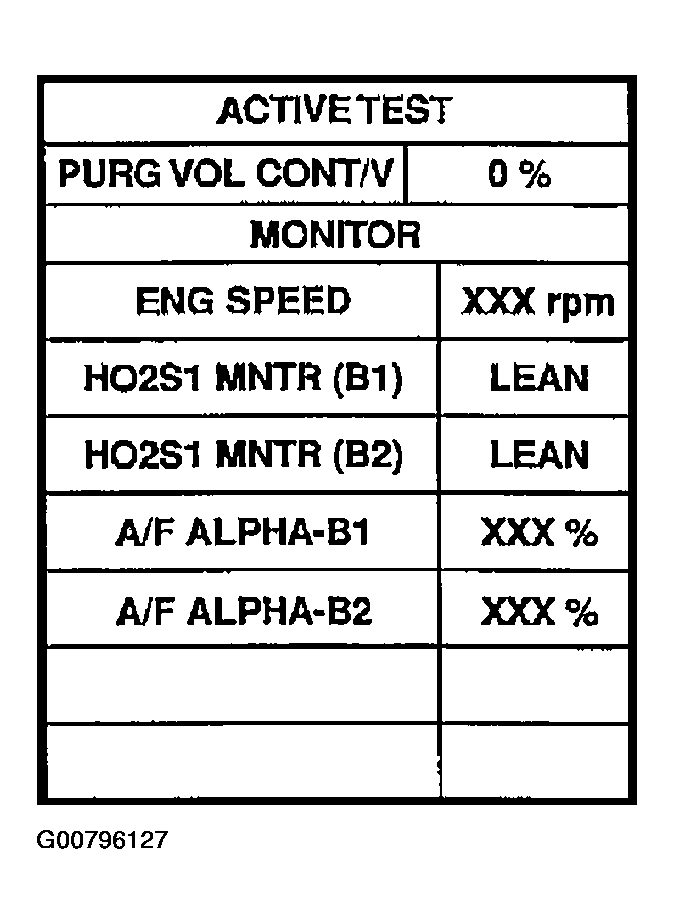

    Fig 1: Scan Tool Display - Active Test
    G00796127Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "Qu" on CONSULT-II screen to increase "PURG VOL CONT/V" opening to 100%.
  5. Check vacuum hose for vacuum when revving engine up to 2,000 RPM.

Vacuum should exist.

OK or NG

  1. OK: GO TO 16. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE .
  2. NG: GO TO 15. CHECK VACUUM HOSE .
