Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front final drive. Refer to FRONT FINAL DRIVE ASSEMBLY .
  2. Remove differential side shaft and side flange using suitable tool.

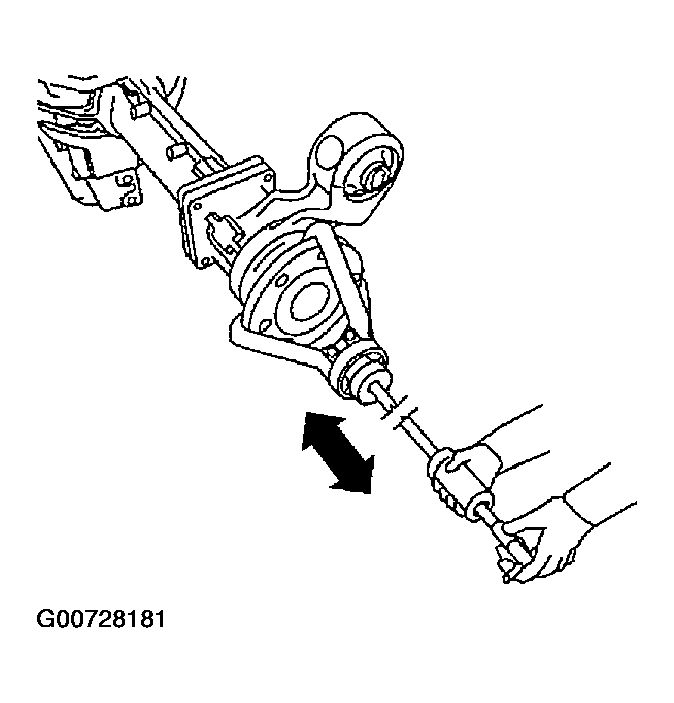

    Fig 1: Removing Differential Side Flange
    G00728181Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Using a punch or drill, place a small hole in case.

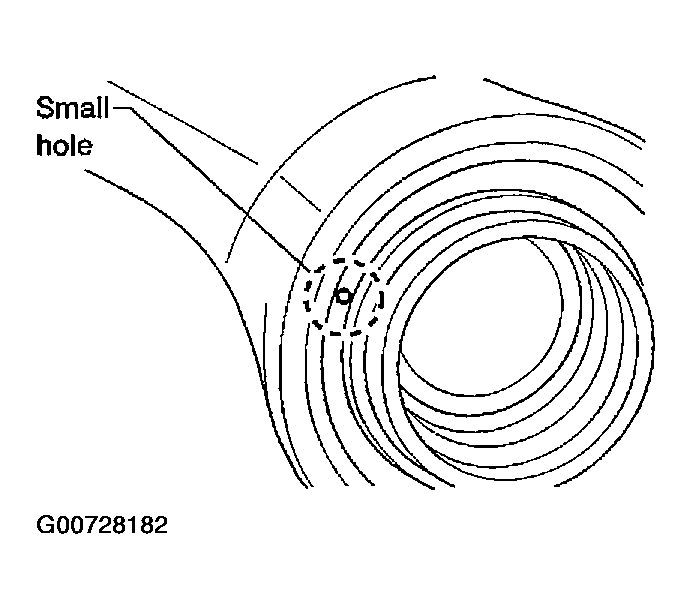

    Fig 2: Placing A Small Hole In Case
    G00728182Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Assemble Tool as shown and remove seal.

    Tool number : SP8P

  5. Installation is in the reverse order of removal.

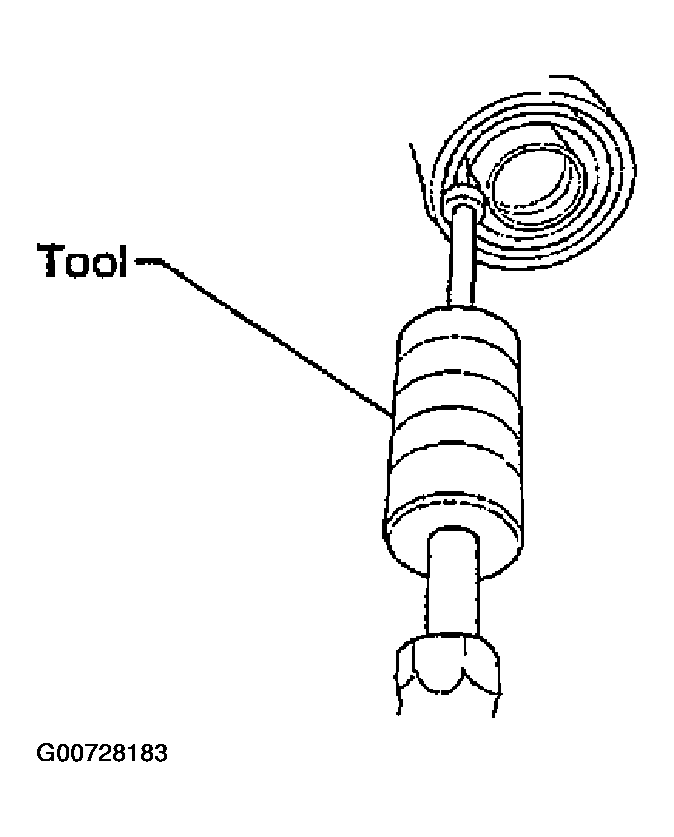

Fig 3: Removing Seal With Tool
G00728183Courtesy of NISSAN MOTOR CO., U.S.A.
