Seatback Trim And Pad

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Removal of front side air bag module should only be done to allow deployment of front side air bag module prior to disposal of seatback assembly.

NOTE: Only complete outboard seatback assemblies can be replaced on vehicles equipped with side air bags.

NOTE: Be sure to set the front/rear cushion lifter to the top position.

Remove the seatback board from the back of the seatback.

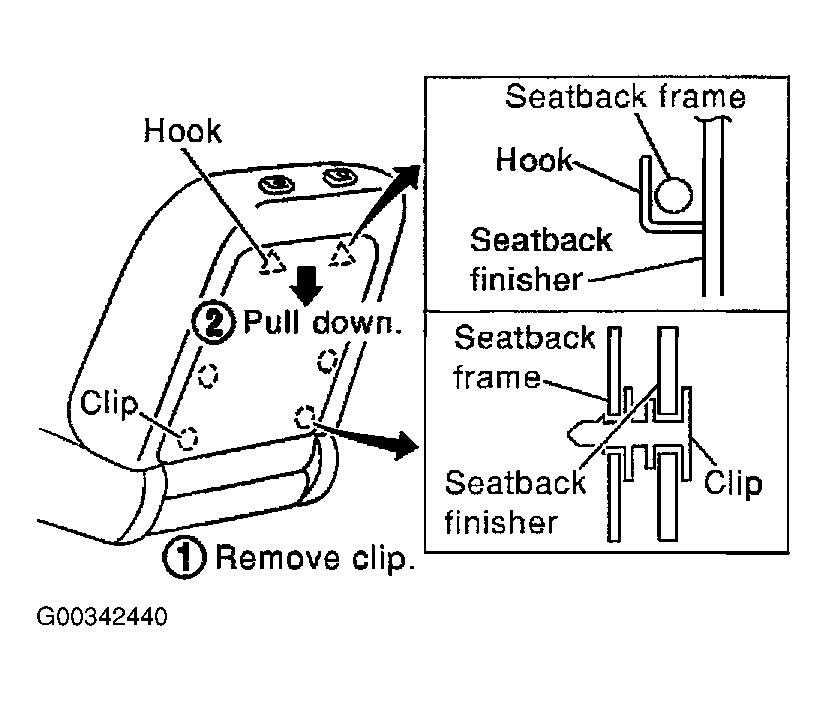

Fig 1: Removing The Seatback Board
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retainer.

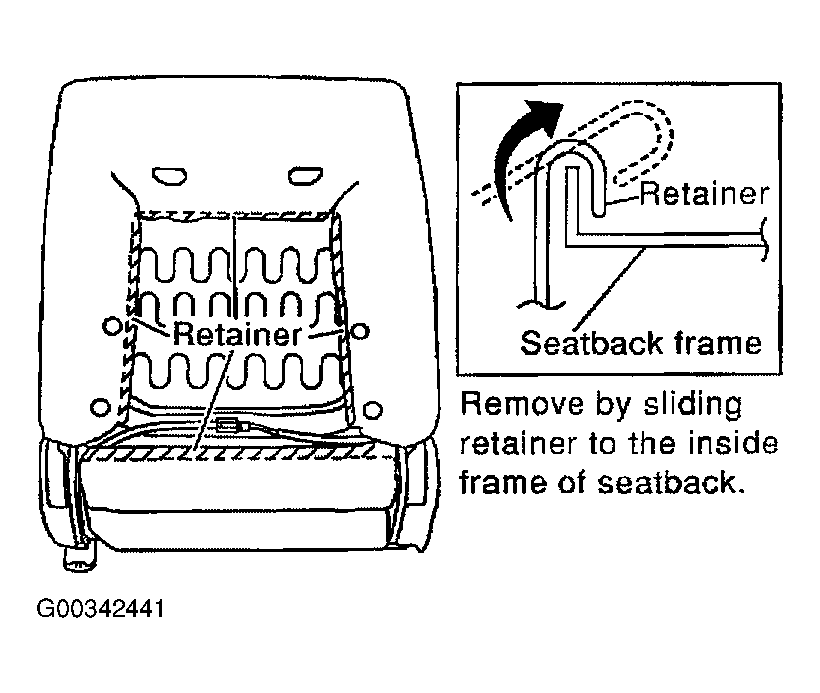

Fig 2: Removing The Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the headrest.
From inside of the seatback, squeeze the headrest holder tabs at the base of the stay pipe and pull the up to remove.
NOTE: Before installing the headrest holder, check its orientation (front/rear and right/left).

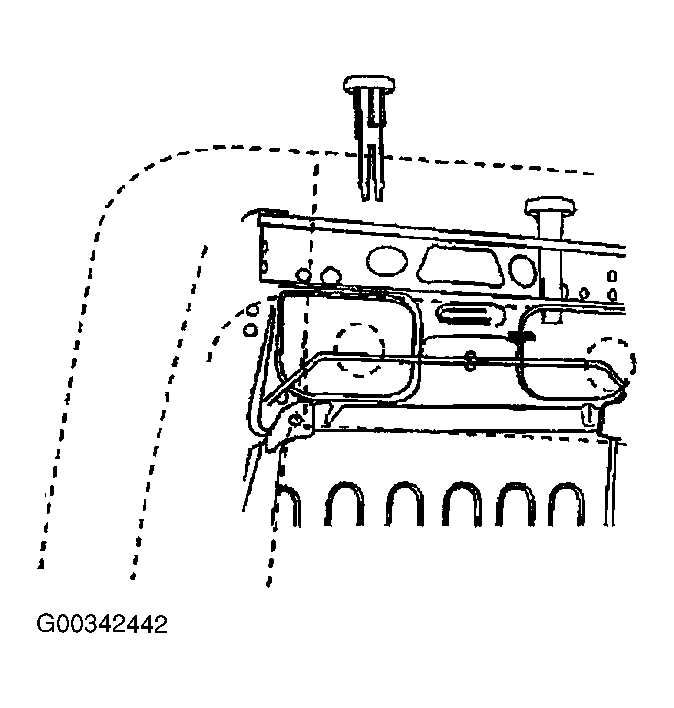

Fig 3: Removing Headrest Holder Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring and the lumbar support lever knob.

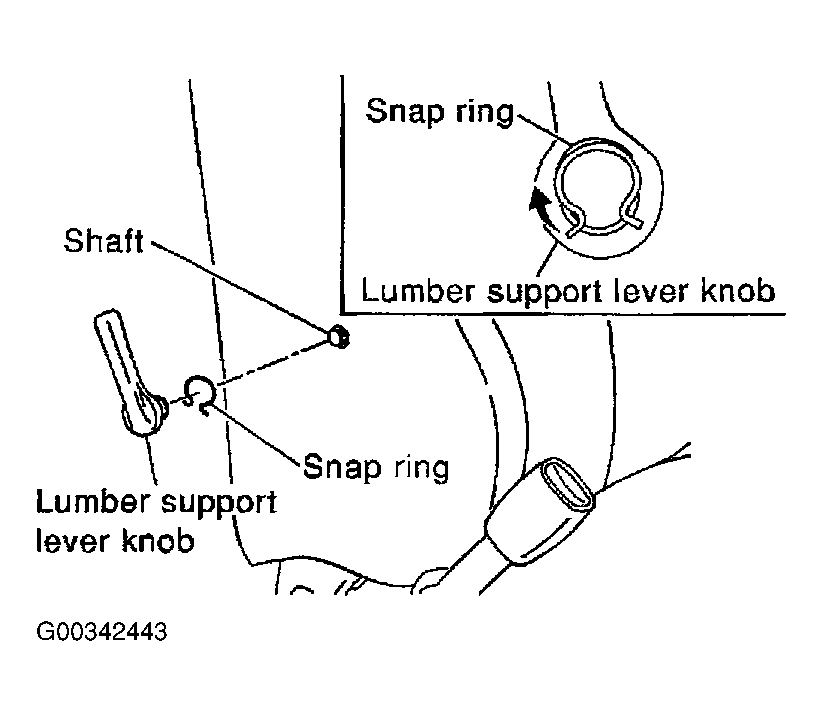

Fig 4: Removing The Snap Ring And The Lumbar Support Lever Knob
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the seatback heater harness. Remove the seatback trim and pad assembly. Remove the hog ring to separate the seatback trim from the pad and the heater unit.
