3. Check Harness Continuity

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect automatic drive positioner control unit.
Check continuity between automatic drive positioner control unit connector M33 terminals 9, 24, 25 and seat memory switch connector D5 terminals 1, 2, 3.
9 (LG/B) - 1 (LG/B) : Continuity should exist.

24 (G/O) - 3 (G/O) : Continuity should exist.

25 (P/L) - 2 (P/L) : Continuity should exist.
Check continuity between automatic drive positioner control unit connector M33 terminals 9, 24, 25 and ground.
9 (LG/B) - Ground : Continuity should not exist.

24 (G/O) - Ground : Continuity should not exist.

25 (P/L) - Ground : Continuity should not exist.

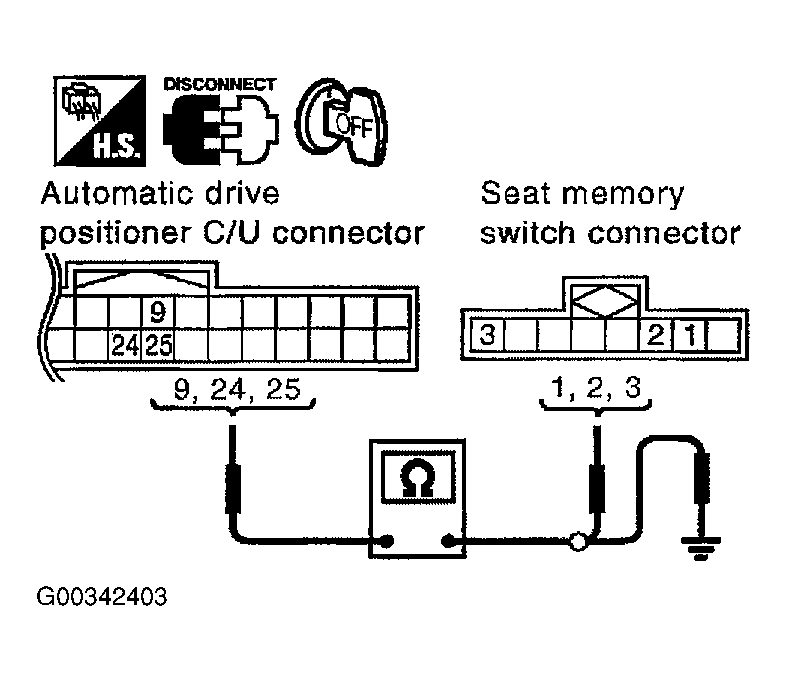

Fig 1: Checking Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 4.
NG >> Repair or replace harness.
