Check Automatic Drive Positioner Control Unit Ground Circuit

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between the automatic drive positioner control unit connector M34 terminal 40, 48 and ground.

40 (B/W) - Ground : Continuity should exist.

48 (B) - Ground : Continuity should exist.

OK or NG

  1. OK >> Automatic drive positioner control unit circuit is OK.
  2. NG >> Repair or replace harness.

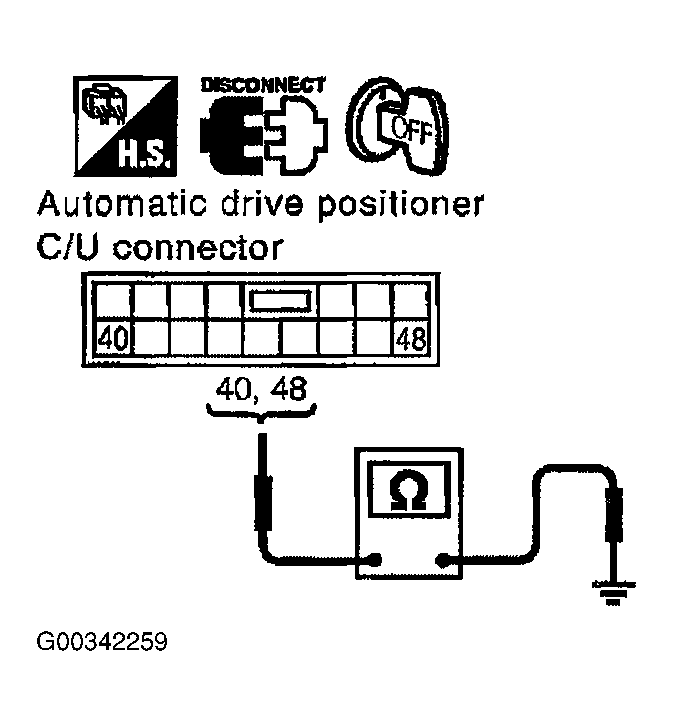

Fig 1: Checking Continuity
G00342259Courtesy of NISSAN MOTOR CO., U.S.A.
