4. Check Harness Continuity 2

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check continuity between automatic drive positioner control unit connector M33 terminal 6, 22 and door mirror LH connector D4 terminal 7, 8.

    6 (L/Y) - 7 (L/Y) : Continuity should exist.

    22 (G) - 8 (G) : Continuity should exist.

  2. Check continuity between automatic drive positioner control unit connector M33 terminal 6, 22 and ground.

    6 (L/Y) - Ground : Continuity should not exist.

    22 (G) - Ground : Continuity should not exist.

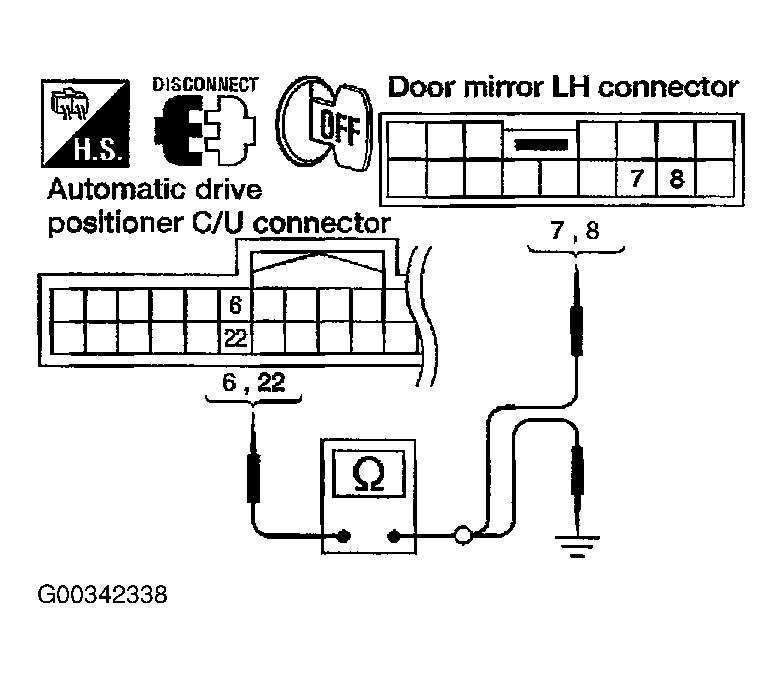

Fig 1: Checking Continuity
G00342338Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK >> Replace door mirror LH.
  2. NG >> Repair or replace harness.
