Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Disconnect the intake sensor electrical connector.
    NOTE: The intake sensor is located on the top of the front heater and cooling unit assembly next to the A/C evaporator cover.
  3. Twist the intake sensor to remove the intake sensor from the front heater and cooling unit assembly.

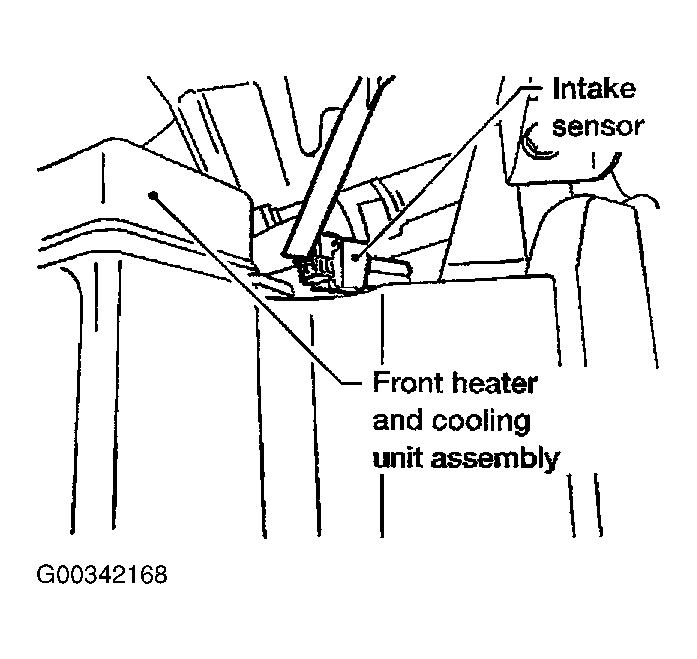

    Fig 1: Removing The Intake Sensor
    G00342168Courtesy of NISSAN MOTOR CO., U.S.A.
