With Consult-II
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "ON". (Do not start engine.)

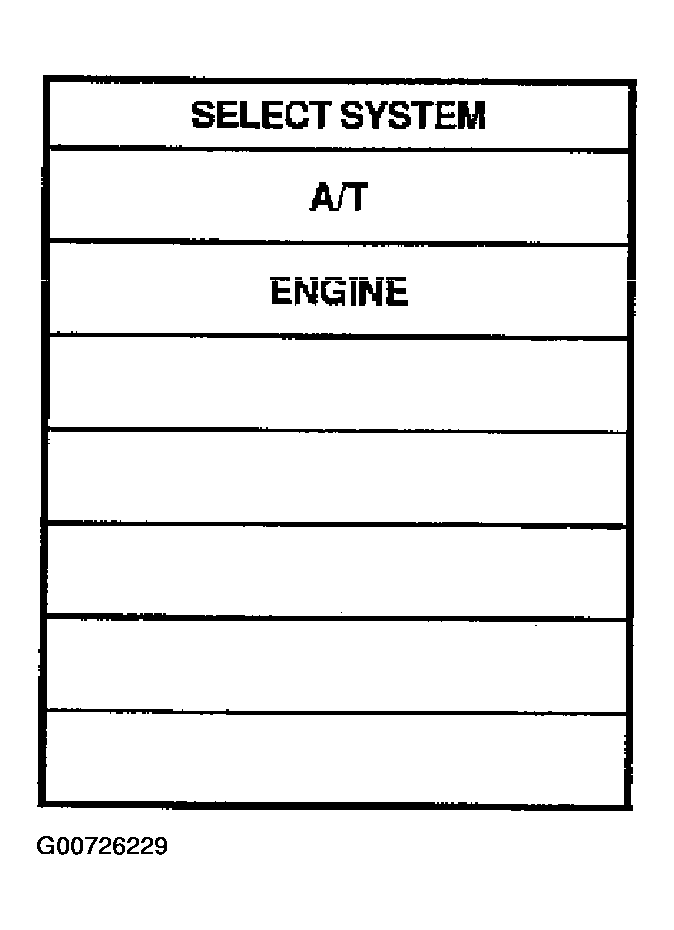

- Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
- Start engine.
- Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
THRTL POS SEN: More than 1.2V
- If DTC is detected, go to DIAGNOSTIC PROCEDURE .
