Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool.
  2. Remove cotter pin and nut from upper link ball joint.
  3. Separate upper link ball joint stud from steering knuckle using Tool.
    • Support lower link with jack.

      Tool number : ST29020001 (J-24319-01)

  4. Remove fender protector.

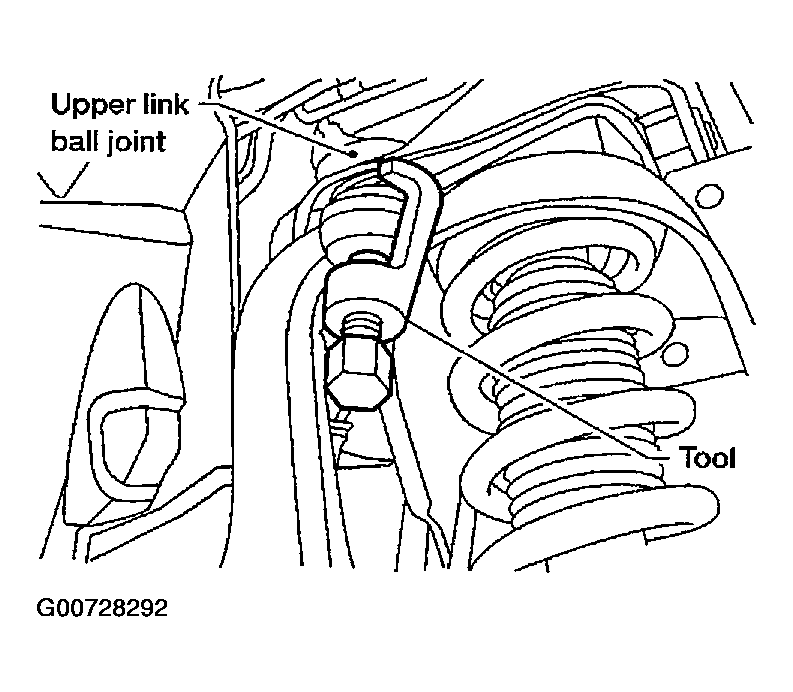

    Fig 1: Separating Upper Link Ball Joint Stud From Steering Knuckle
    G00728292Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove upper link mounting bolts and nuts.

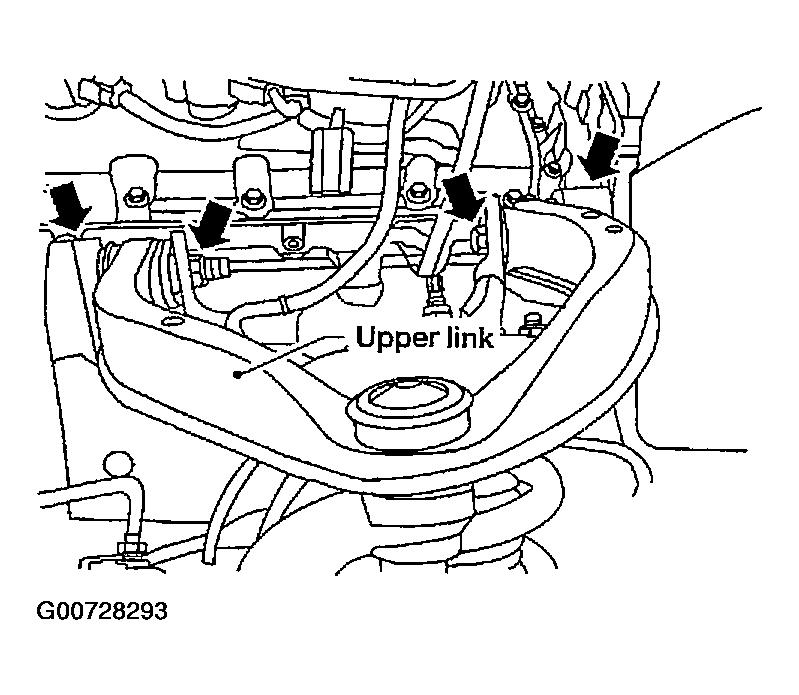

Fig 2: Removing Upper Link Mounting Bolts And Nuts
G00728293Courtesy of NISSAN MOTOR CO., U.S.A.
