Removal And Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool.
  2. Remove lower shock absorber bolt.
  3. Remove stabilizer bar connecting rod lower nut using power tool, then separate connecting rod from lower link. Refer to STABILIZER BAR .
  4. Remove drive shaft, if equipped. Refer to DRIVE SHAFT .
  5. Remove pinch bolt from steering knuckle using power tool, then separate lower link ball joint from steering knuckle.

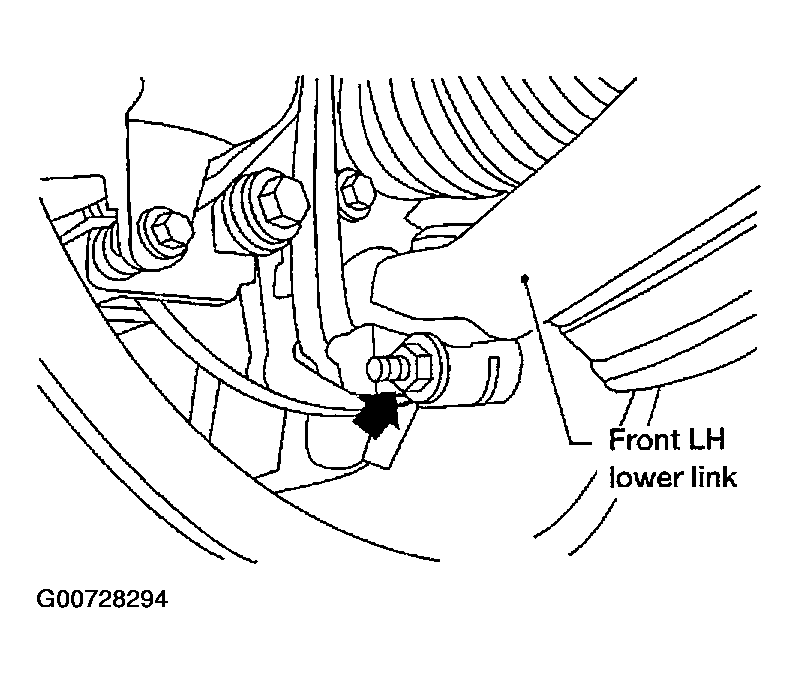

    Fig 1: Removing Pinch Bolt
    G00728294Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove lower link adjusting bolts and nuts, then the lower link.

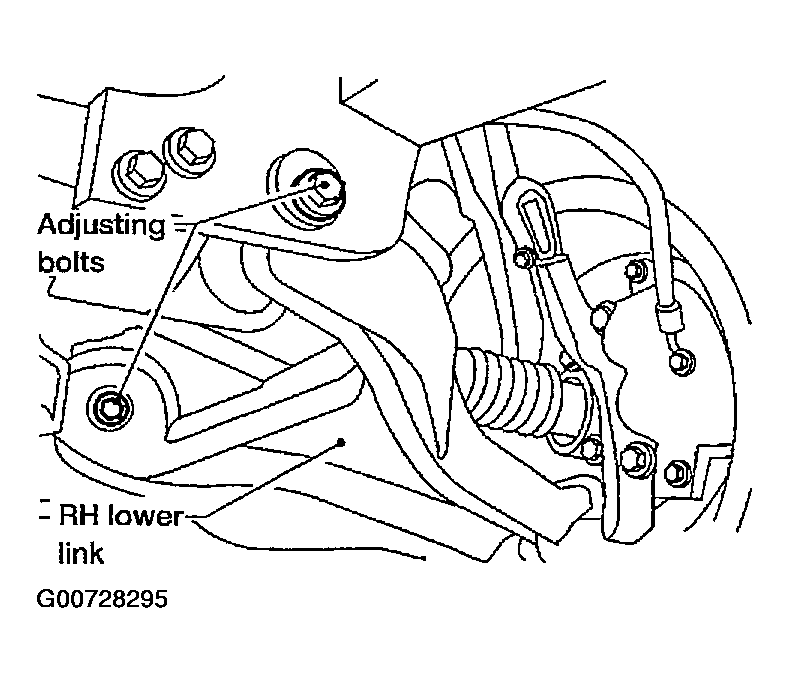

Fig 2: Removing Lower Link Adjusting Bolts And Nuts
G00728295Courtesy of NISSAN MOTOR CO., U.S.A.
