Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install cylinder head gasket.
  2. Follow the steps below to tighten the bolts in the numerical order shown in the figure to install cylinder head.
    CAUTION:
    NOTE: Apply engine oil to threads and seating surface of bolts.

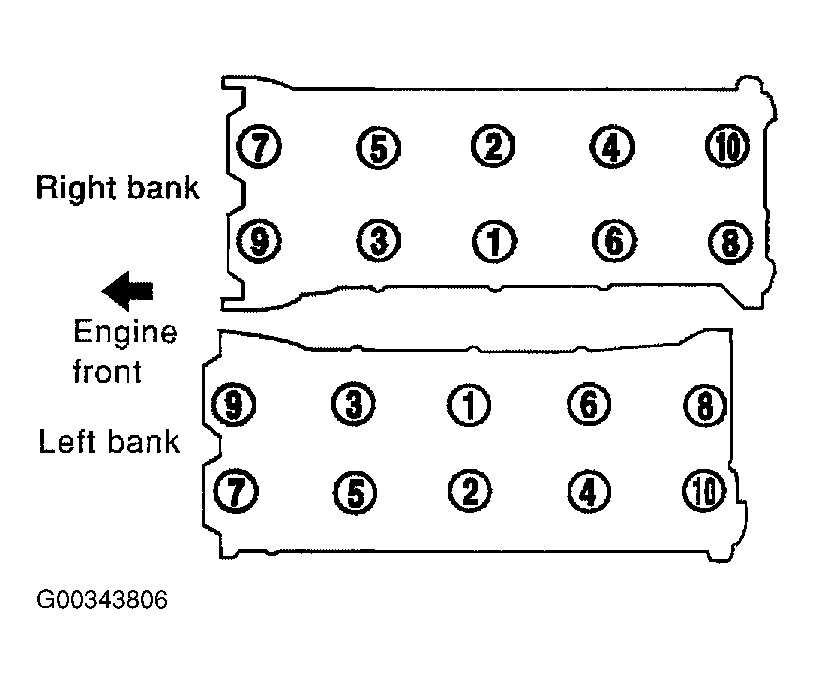

    Fig 1: Cylinder Head Bolt Tightening Sequence
    G00343806Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Tool number : KV10112100 (BT-8653-A)
    2. Step a : 98.1 N.m (10 kg-m, 72 ft-lb)
    3. Step b : 0 N.m Loosen in the reverse order of tightening.
    4. Step c : 44.1 N.m (4.5 kg-m, 33 ft-lb)
    5. Step d : 60° degrees clockwise
    6. Step e : 60° degrees clockwise
    CAUTION: Check and confirm the tightening angle by using suitable tool. Avoid judgment by visual inspection without the tool.

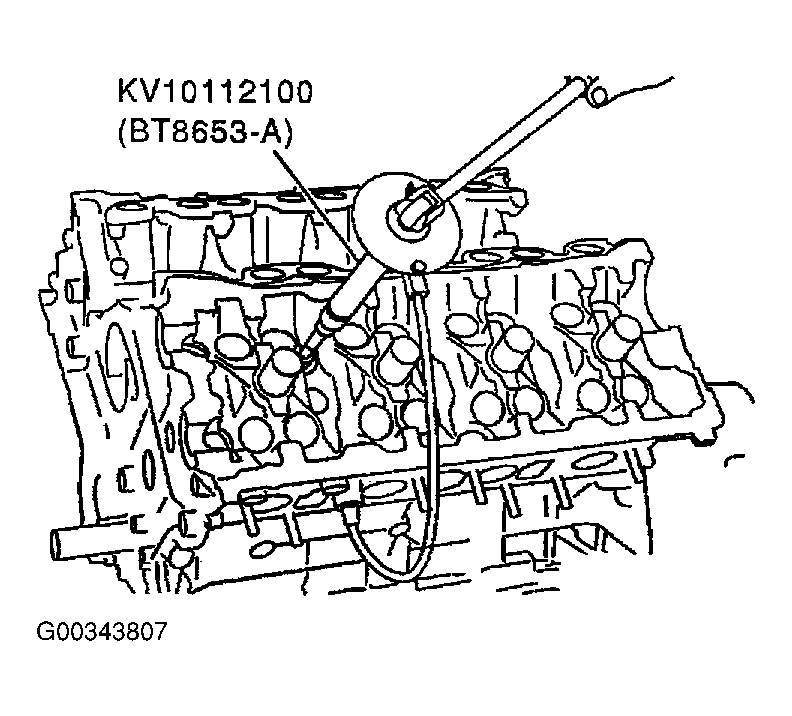

    Fig 2: Tightening Cylinder Head Bolts
    G00343807Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Installation of the remaining components is in the reverse order of removal.
