SRT Service Procedure

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence.

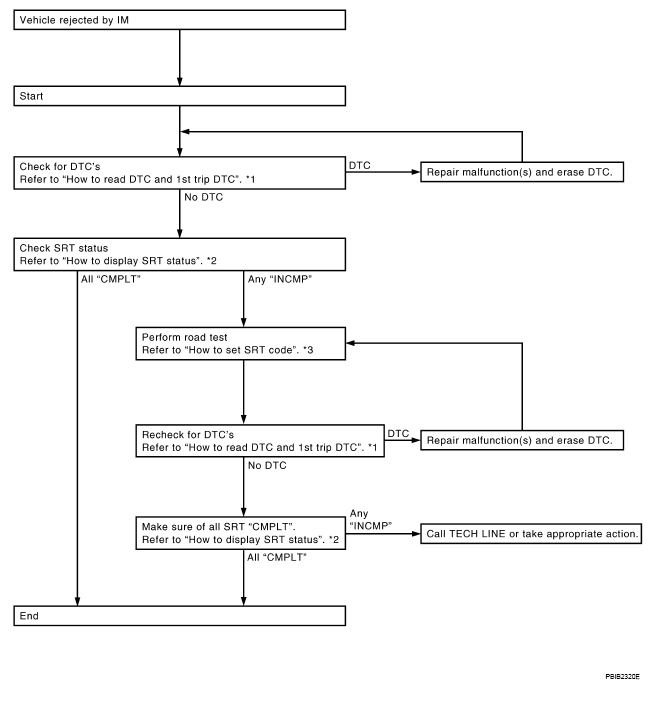

Fig 1: SRT Flow Chart
G04915141Courtesy of NISSAN MOTOR CO., U.S.A.
*1: How to Read DTC and 1st Trip DTC
*2: How to Display SRT Status
*3: How to Set SRT Code
