Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Journal

  1. Assemble the journal bearings. Apply multipurpose grease on the bearing inner surface.
    NOTE: During assembly, use caution so that the needle bearings do not fall down.
    Fig 1: Identifying Journal Bearings On Vice
    G04901789
  2. Select new snap rings that will provide the specified play in an axial direction of the journal, and install them. Refer to "SNAP RING ".
    CAUTION: Do not reuse snap rings
    NOTE: Select snap rings with a difference in thickness at both sides within 0.02 mm (0.0008 in).

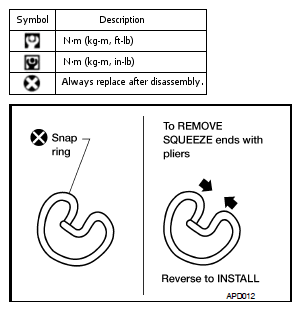

    Fig 2: Identifying Snap Ring
    G06580296
  3. Adjust the thrust clearance between the bearing and snap ring to zero by tapping the yoke.
    Fig 3: Adjusting Thrust Clearance Between Bearing And Snap Ring
    G04901787
  4. Make sure that the journal moves smoothly and is below the propeller joint flex effort specification. Refer to "GENERAL SPECIFICATION ".
    Fig 4: Checking Journal Movement
    G04901792
