DTC P1574: ASCD Vehicle Speed Sensor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC P0500, DTC P0605, DTC U1000 or DTC U1001 is also set, perform diagnosis for those DTCs first. See DTC P0500: VEHICLE SPEED SENSOR , DTC P0605: ECM and/or DTC U1000 OR DTC U1001: CAN COMMUNICATION LINE .

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1 and Fig 2 .

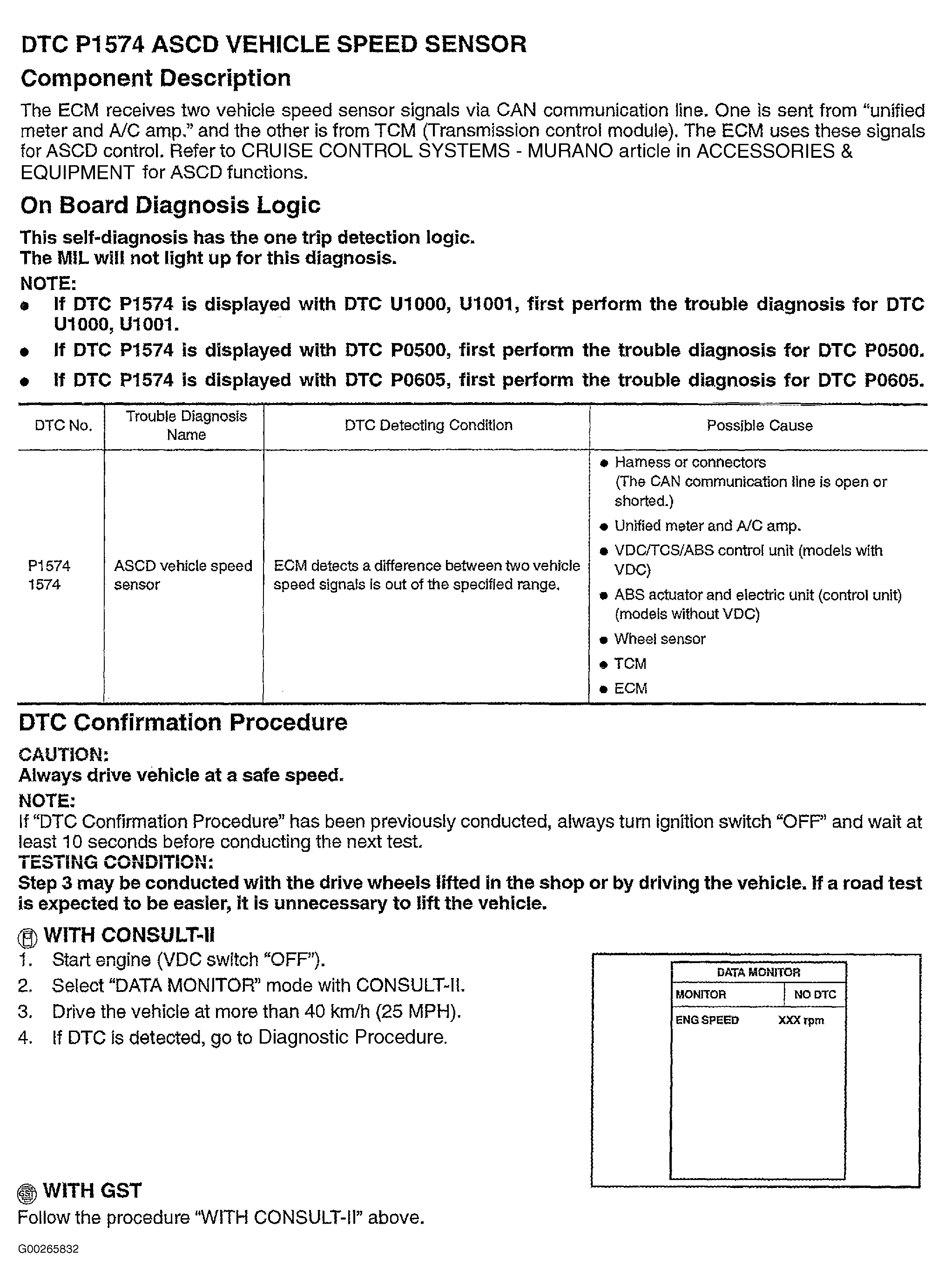

Fig 1: DTC P1574 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: DTC P1574 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
