DTC P1572: ASCD Brake Switch

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If DTC P0605 is also set, perform diagnosis for that DTC first. See DTC P0605: ECM .
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 9 .

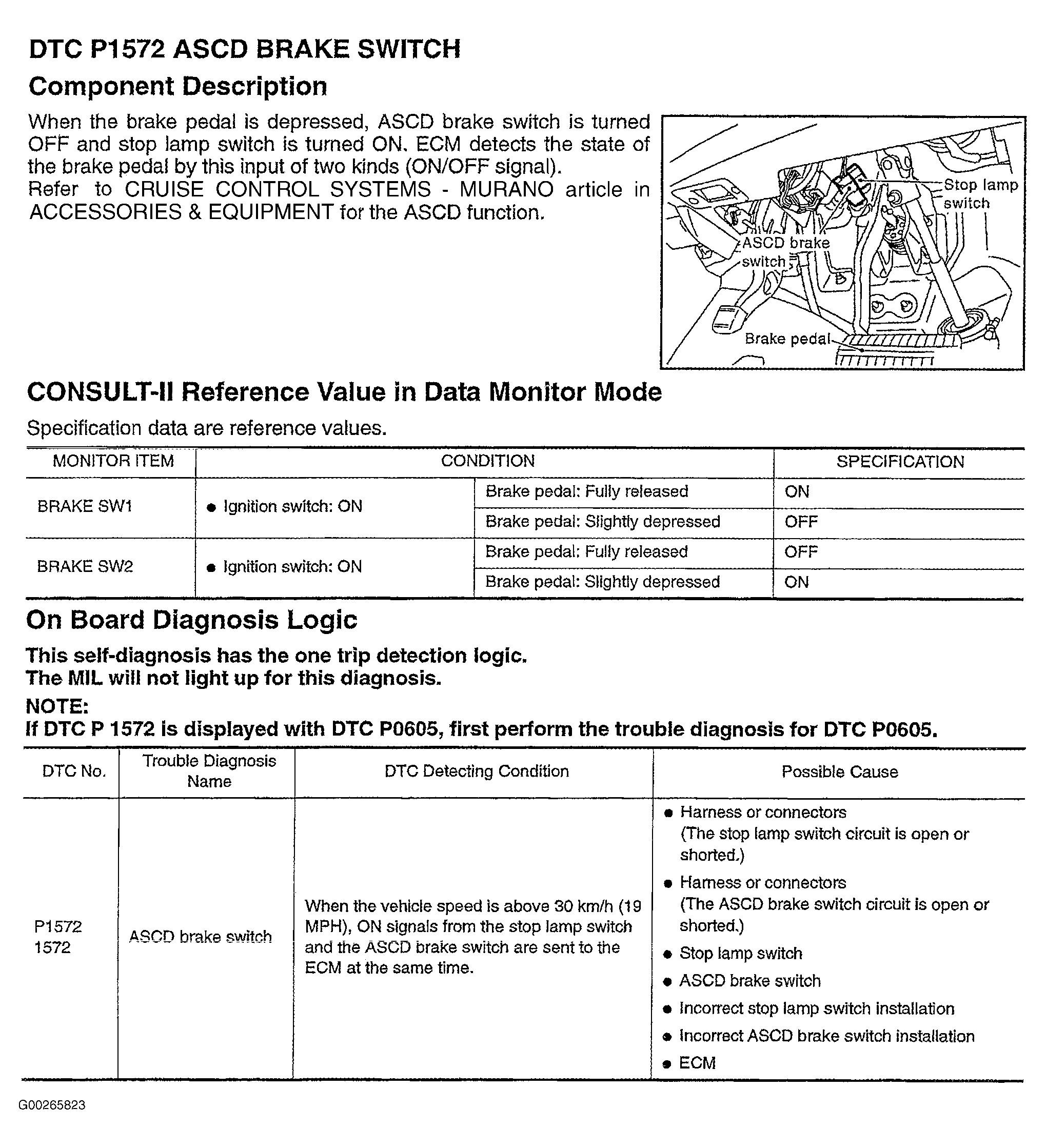

Fig 1: DTC P1572 (1 Of 8)
G00265823Courtesy of NISSAN MOTOR CO., U.S.A.

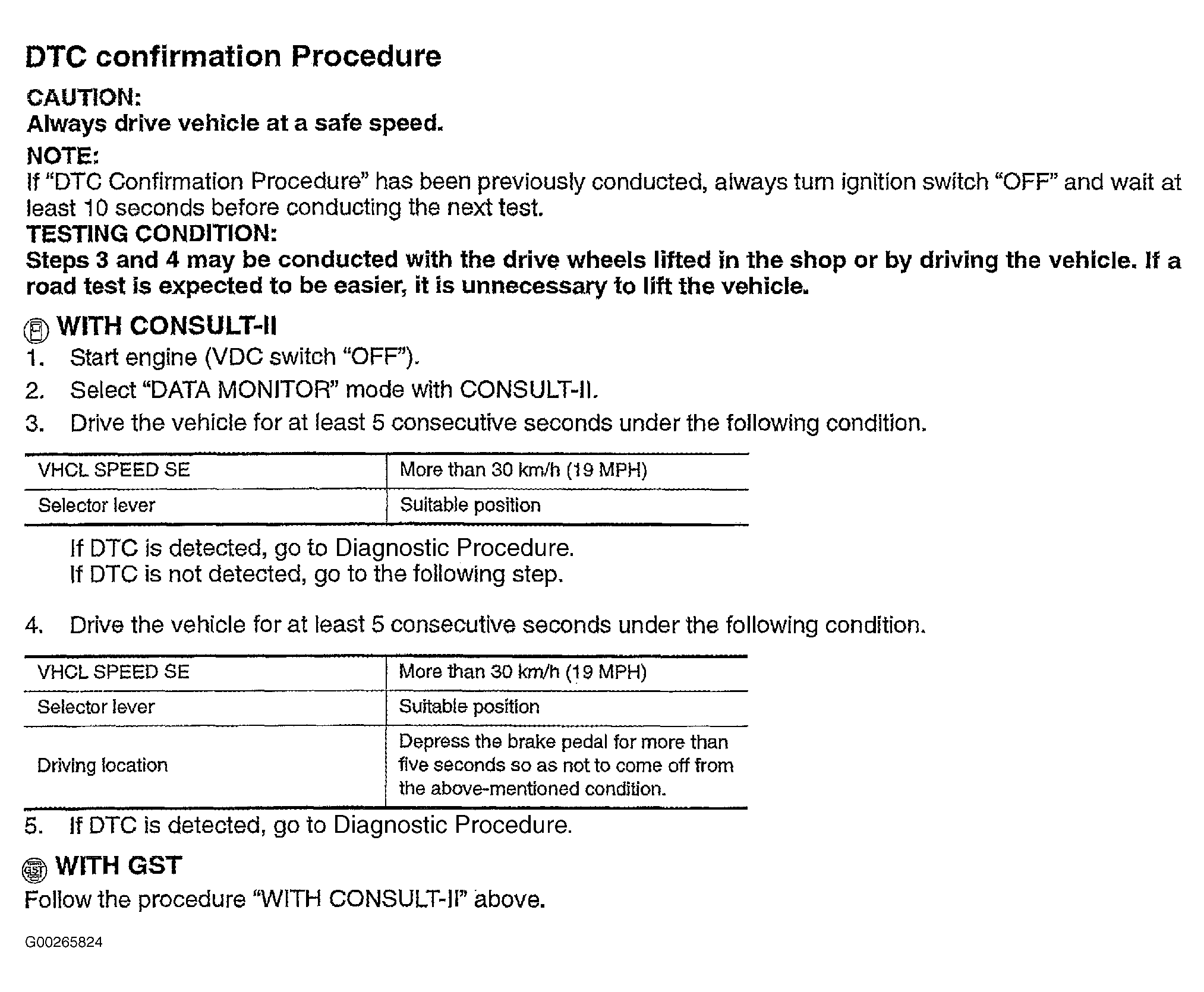

Fig 2: DTC P1572 (2 Of 8)
G00265824Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: DTC P1572 (3 Of 8)
G00265825Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: DTC P1572 (4 Of 8)
G00265826Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: DTC P1572 (5 Of 8)
G00265827Courtesy of NISSAN MOTOR CO., U.S.A.

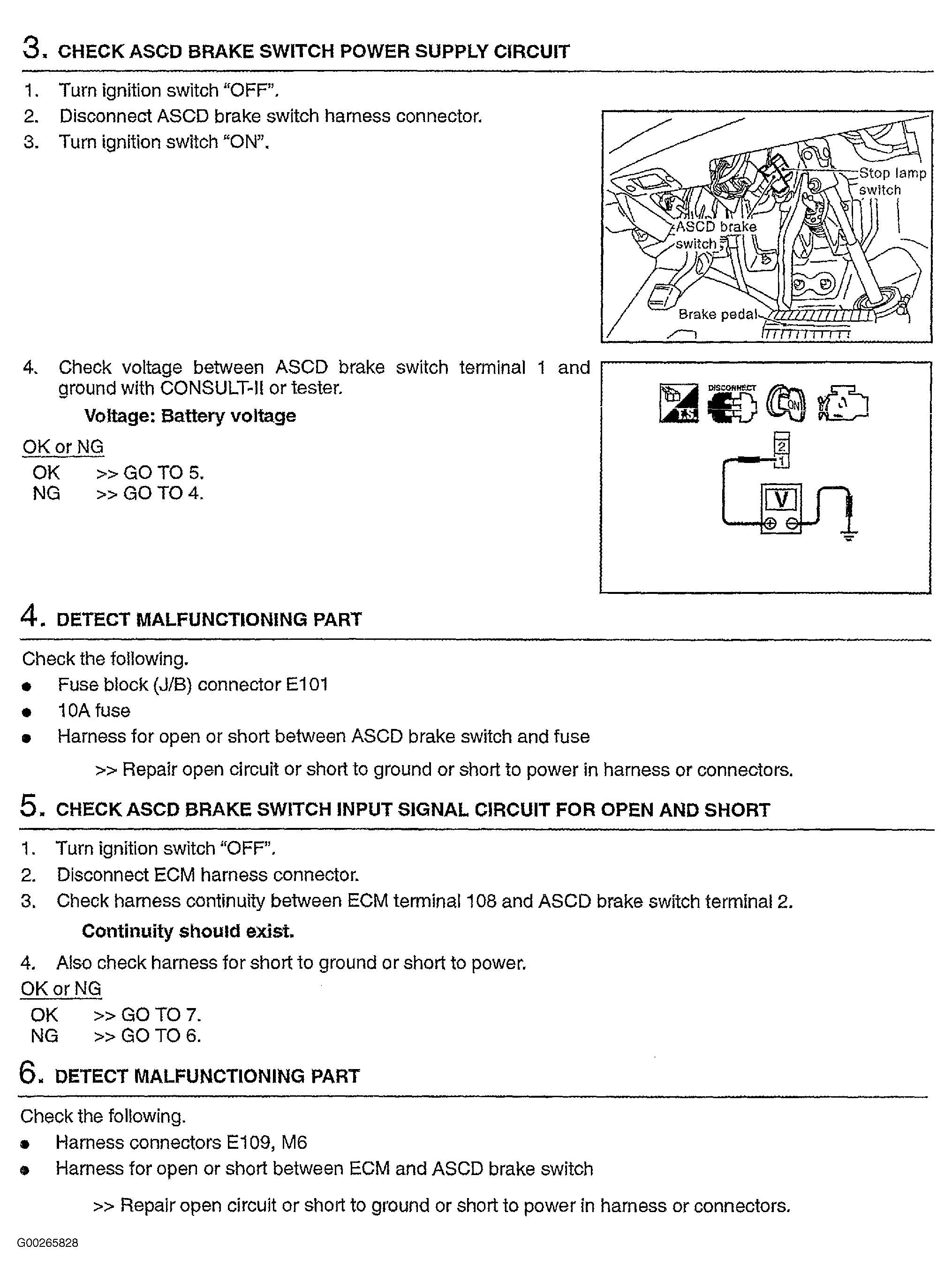

Fig 6: DTC P1572 (6 Of 8)
G00265828Courtesy of NISSAN MOTOR CO., U.S.A.

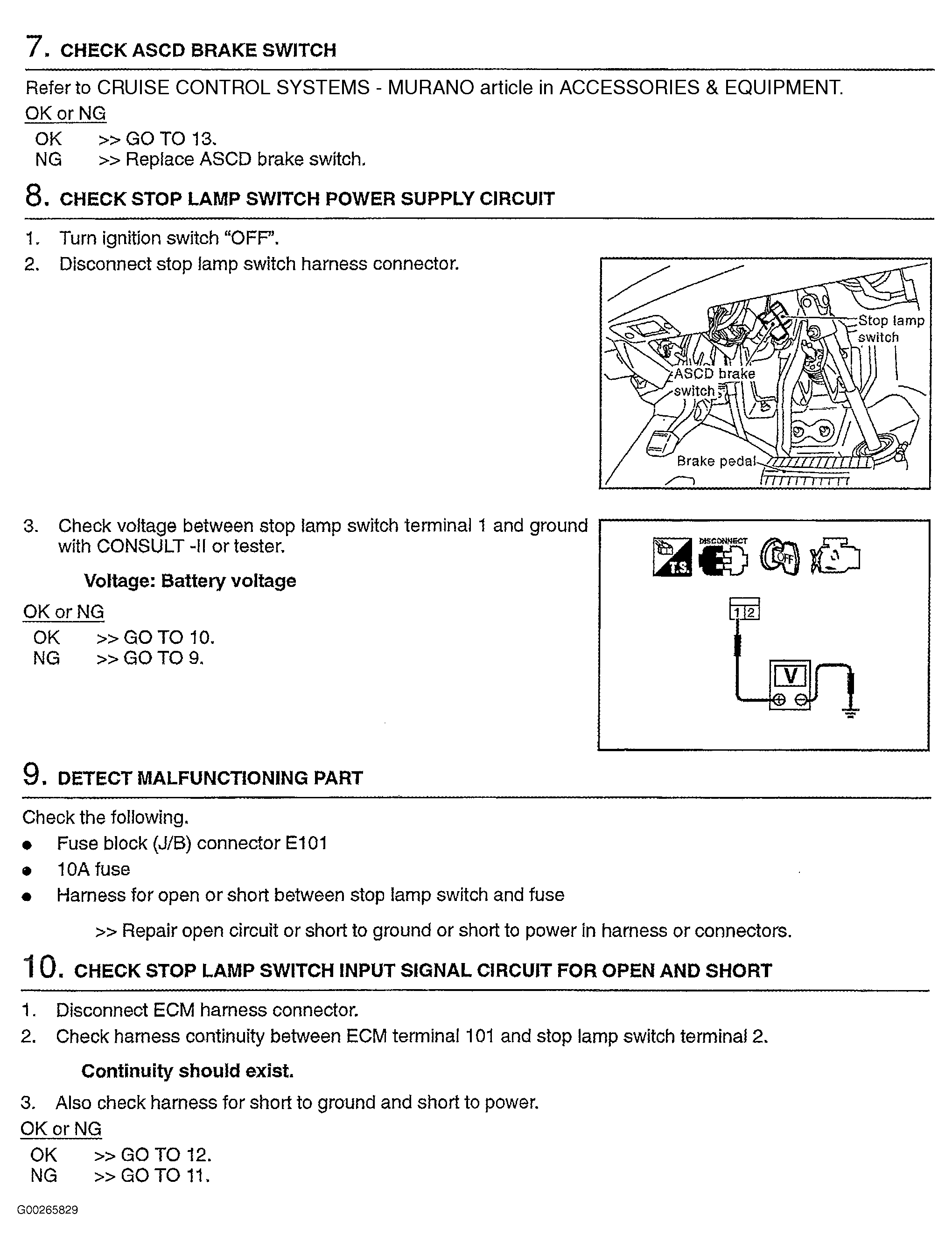

Fig 7: DTC P1572 (7 Of 8)
G00265829Courtesy of NISSAN MOTOR CO., U.S.A.

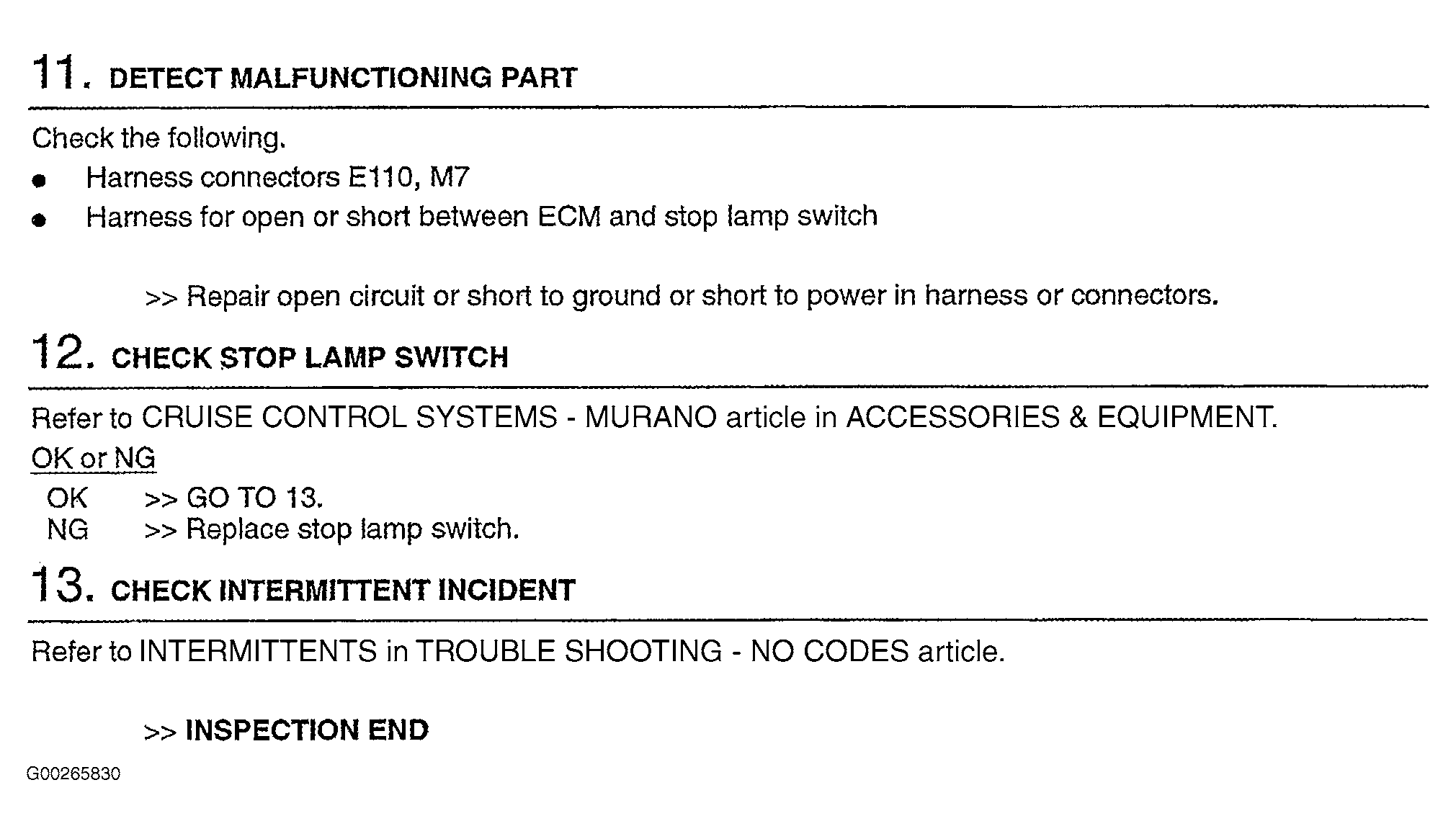

Fig 8: DTC P1572 (8 Of 8)
G00265830Courtesy of NISSAN MOTOR CO., U.S.A.

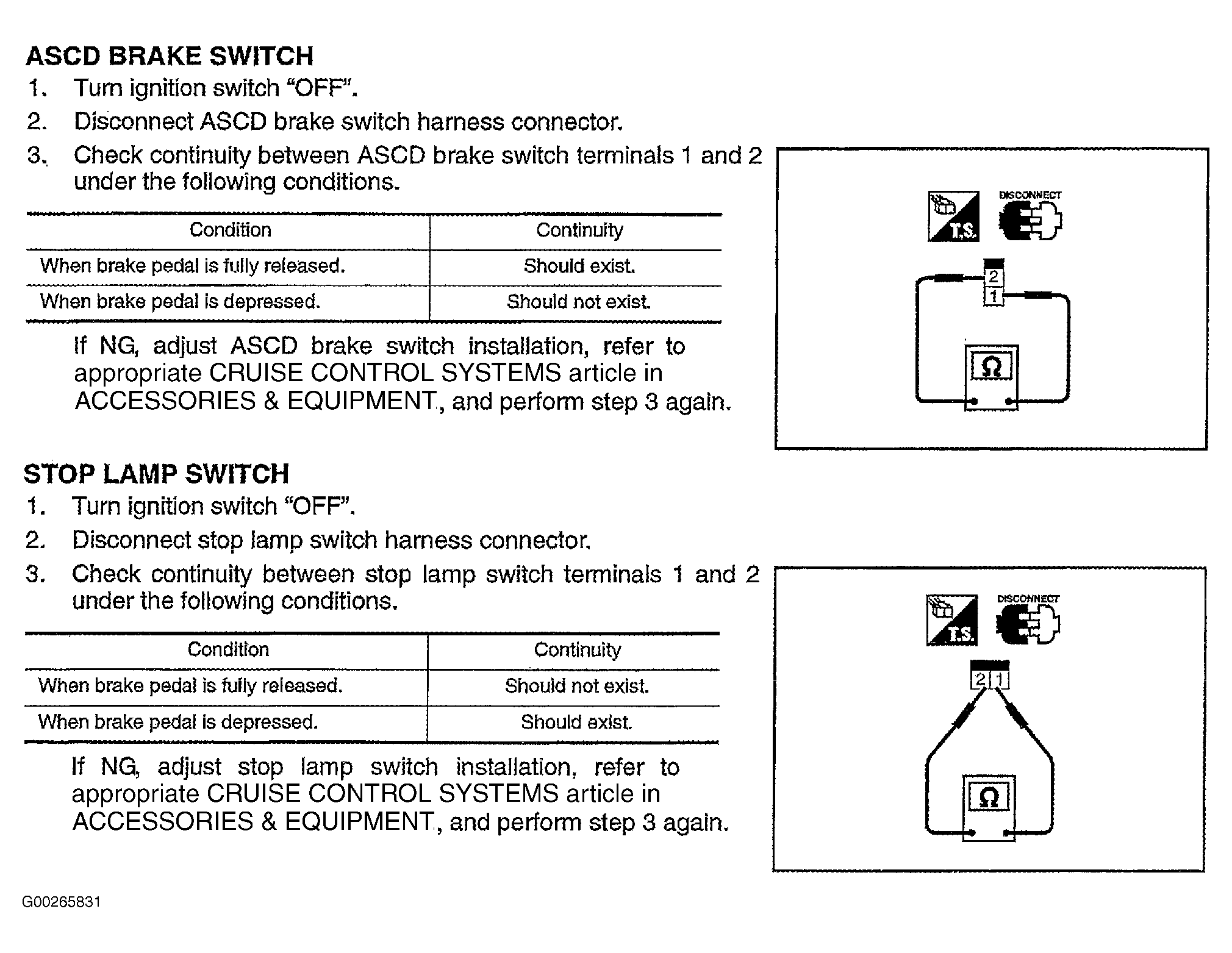

Fig 9: Testing ASCD Brake Switch & Stop Lamp Switch
G00265831Courtesy of NISSAN MOTOR CO., U.S.A.
