DTC P1217: Engine Over Temperature

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 14 .

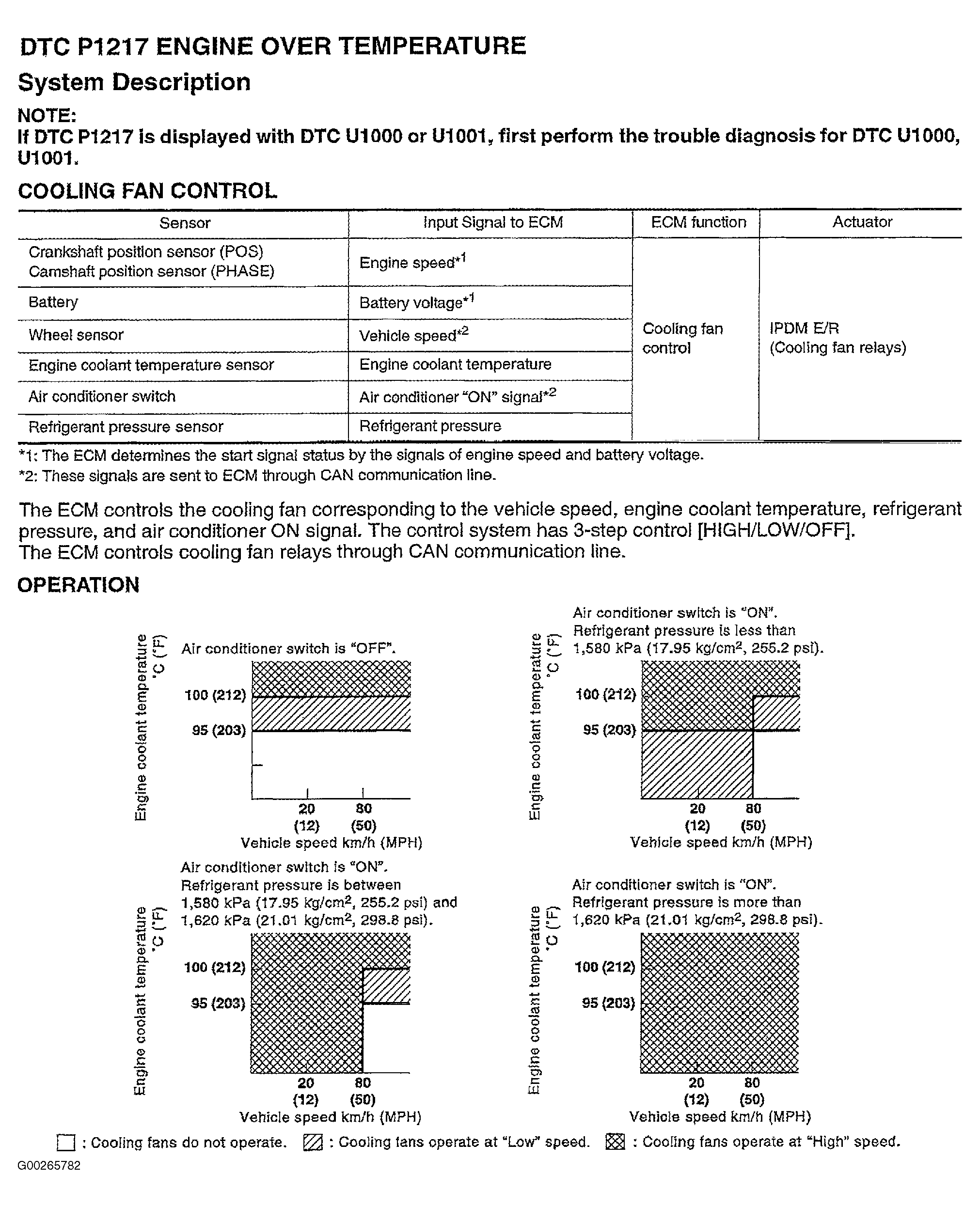

Fig 1: DTC P1217 (1 Of 12)

G00265782

Courtesy of NISSAN MOTOR CO., U.S.A.

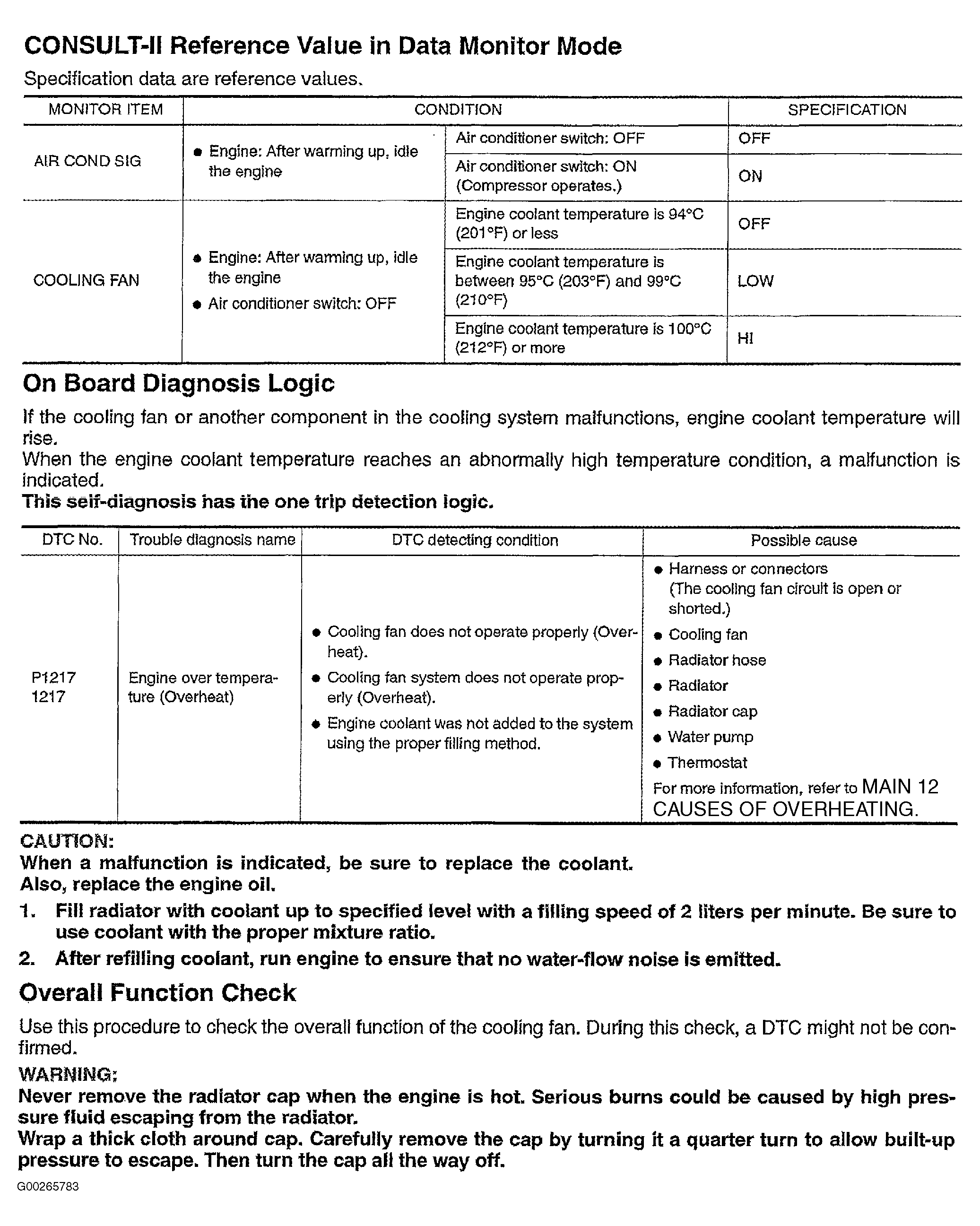

Fig 2: DTC P1217 (2 Of 12)

G00265783

Courtesy of NISSAN MOTOR CO., U.S.A.

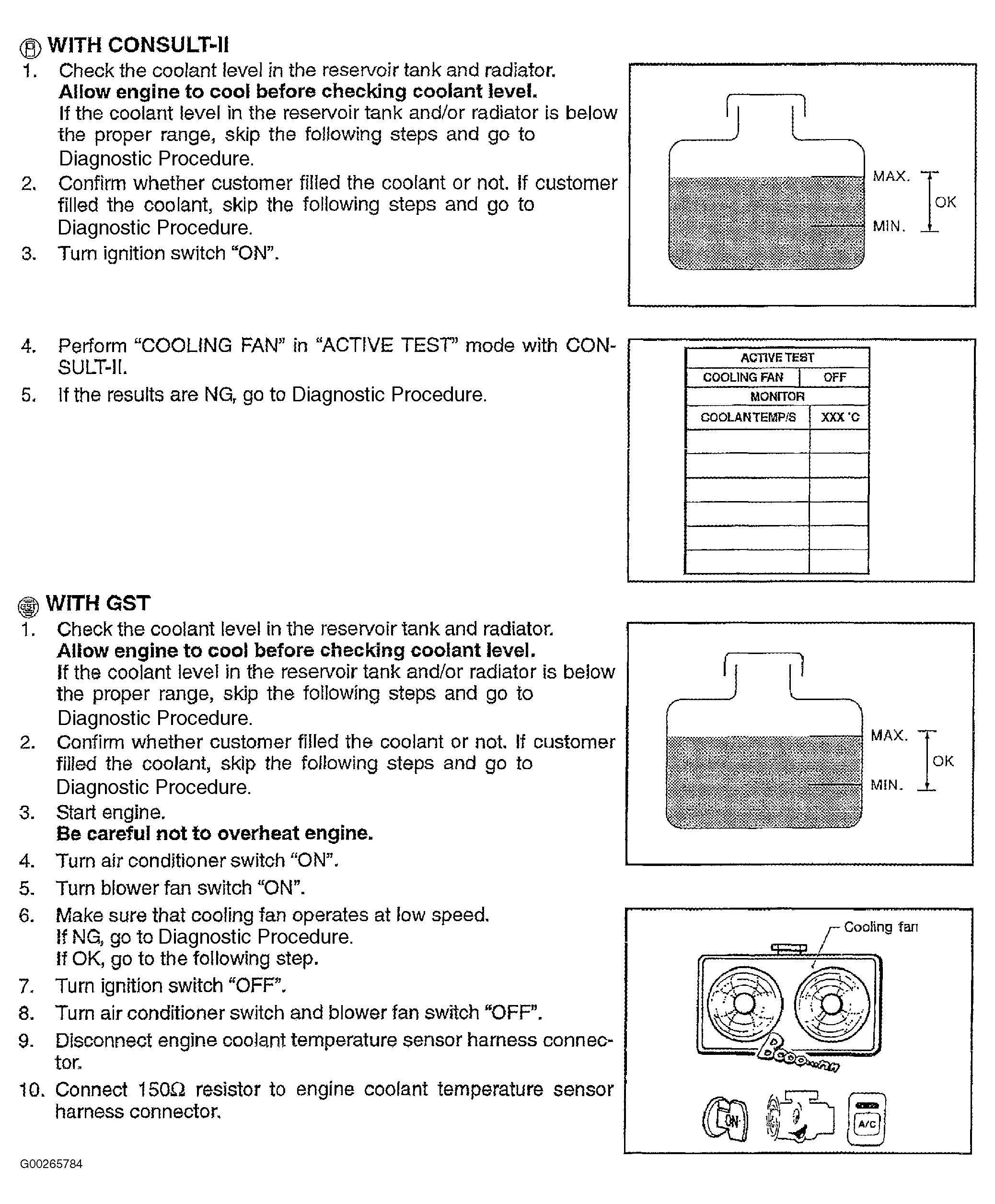

Fig 3: DTC P1217 (3 Of 12)

G00265784

Courtesy of NISSAN MOTOR CO., U.S.A.

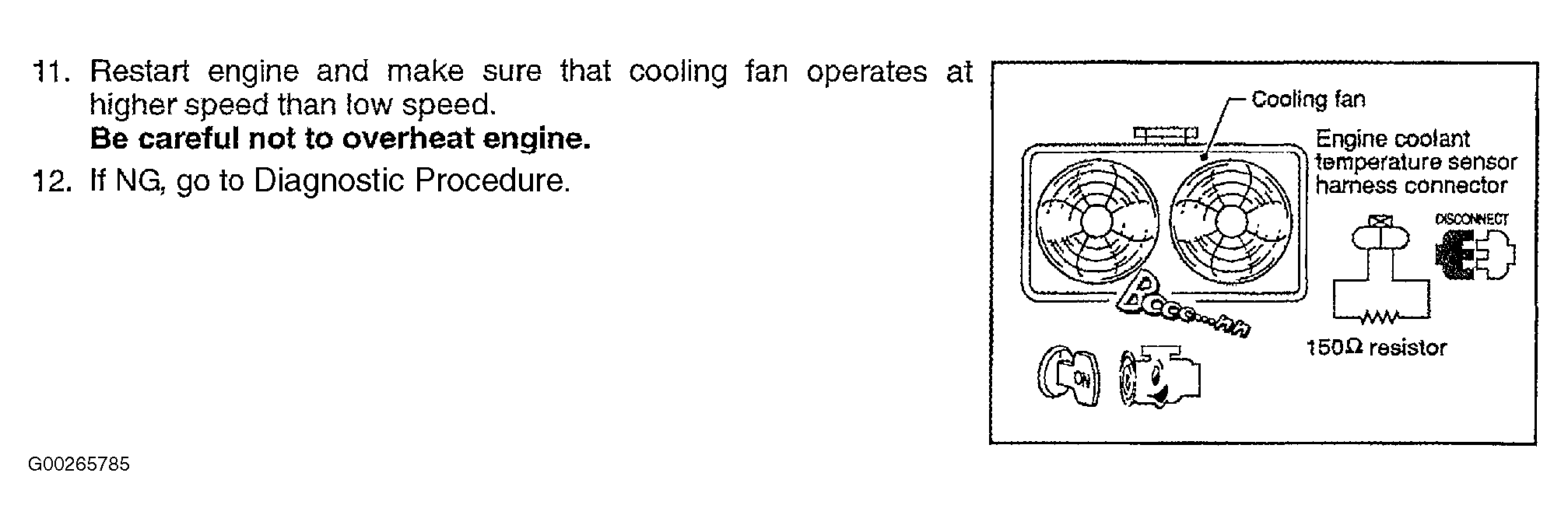

Fig 4: DTC P1217 (4 Of 12)

G00265785

Courtesy of NISSAN MOTOR CO., U.S.A.

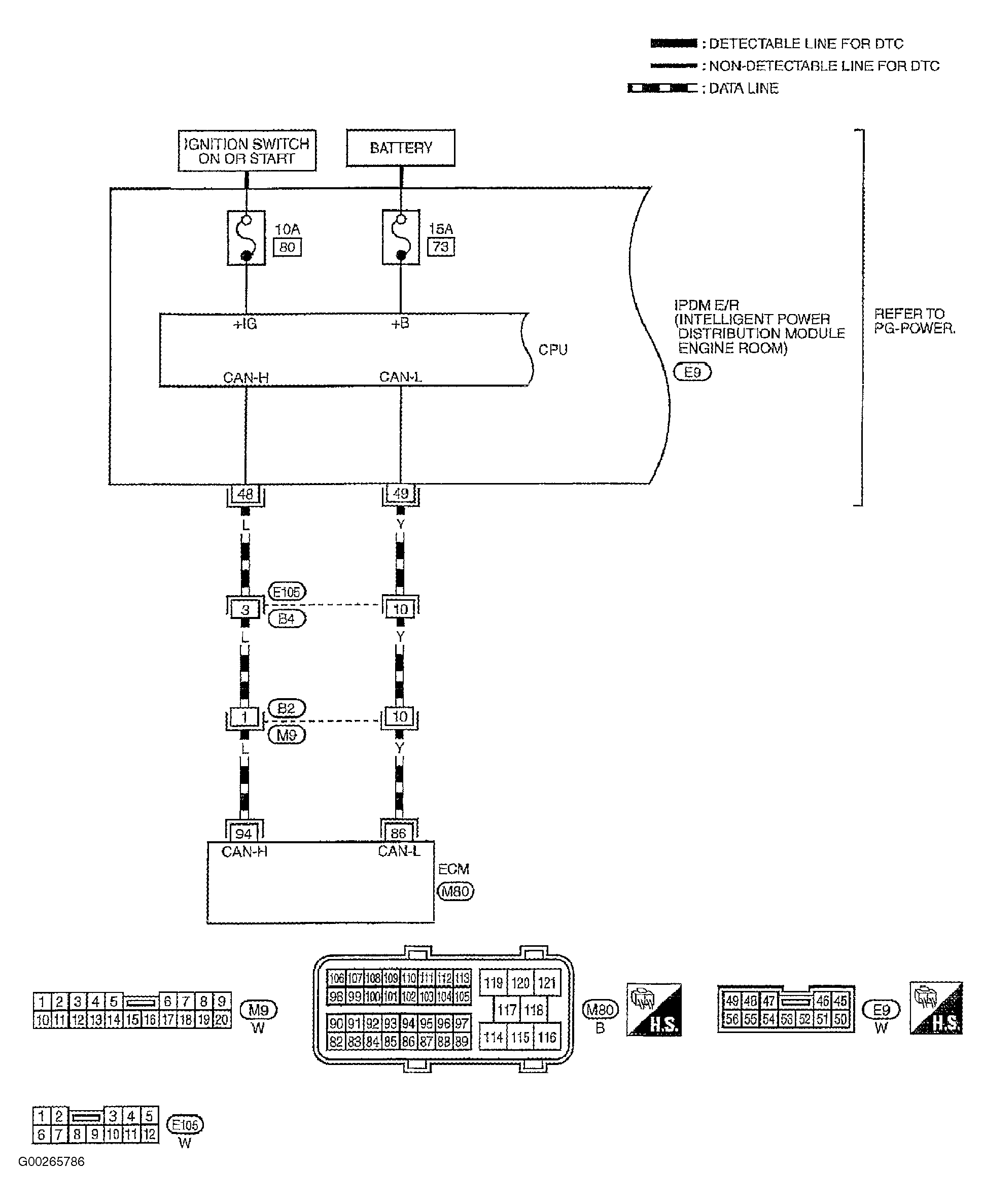

Fig 5: DTC P1217 (5 Of 12)

G00265786

Courtesy of NISSAN MOTOR CO., U.S.A.

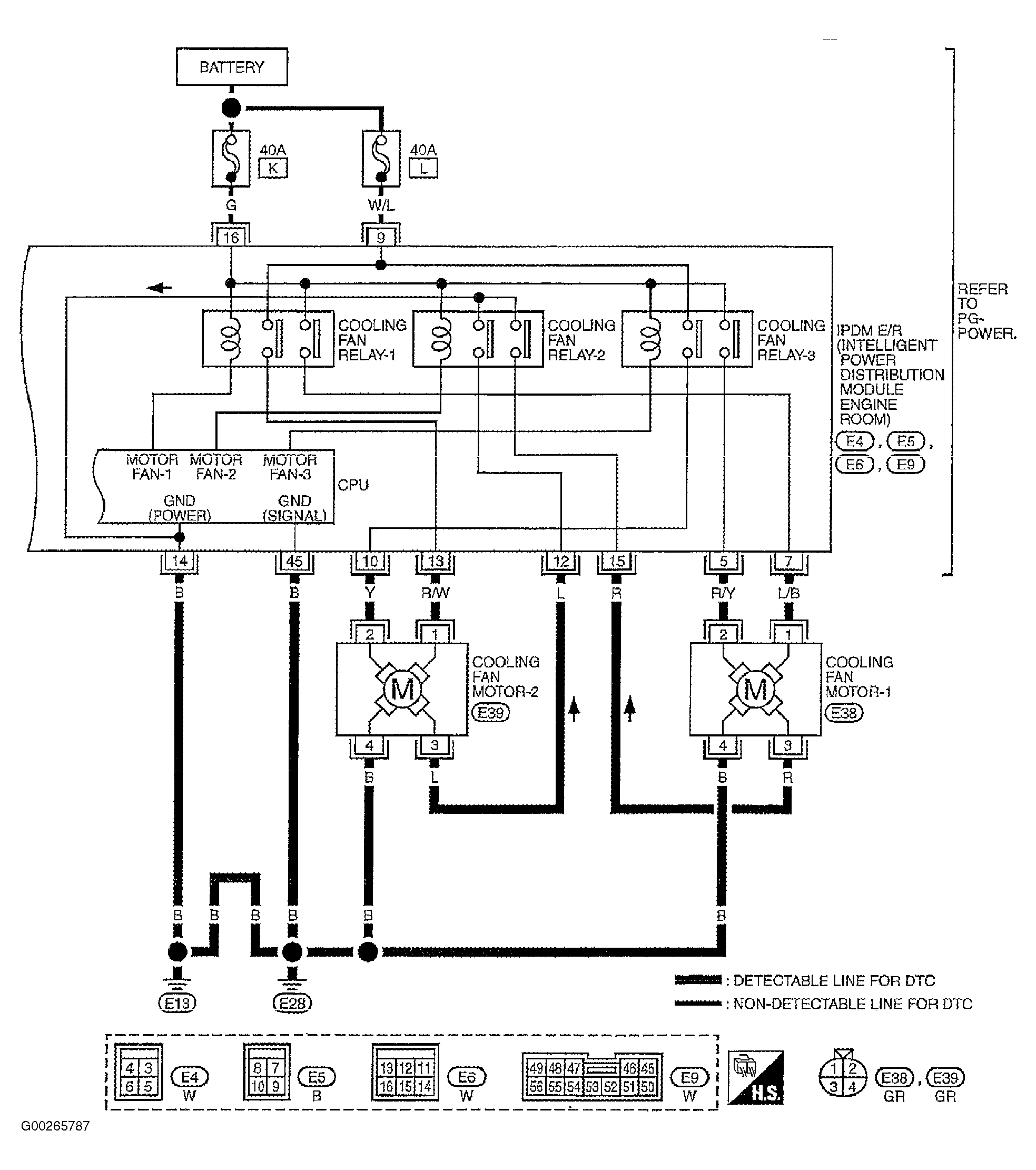

Fig 6: DTC P1217 (6 Of 12)

G00265787

Courtesy of NISSAN MOTOR CO., U.S.A.

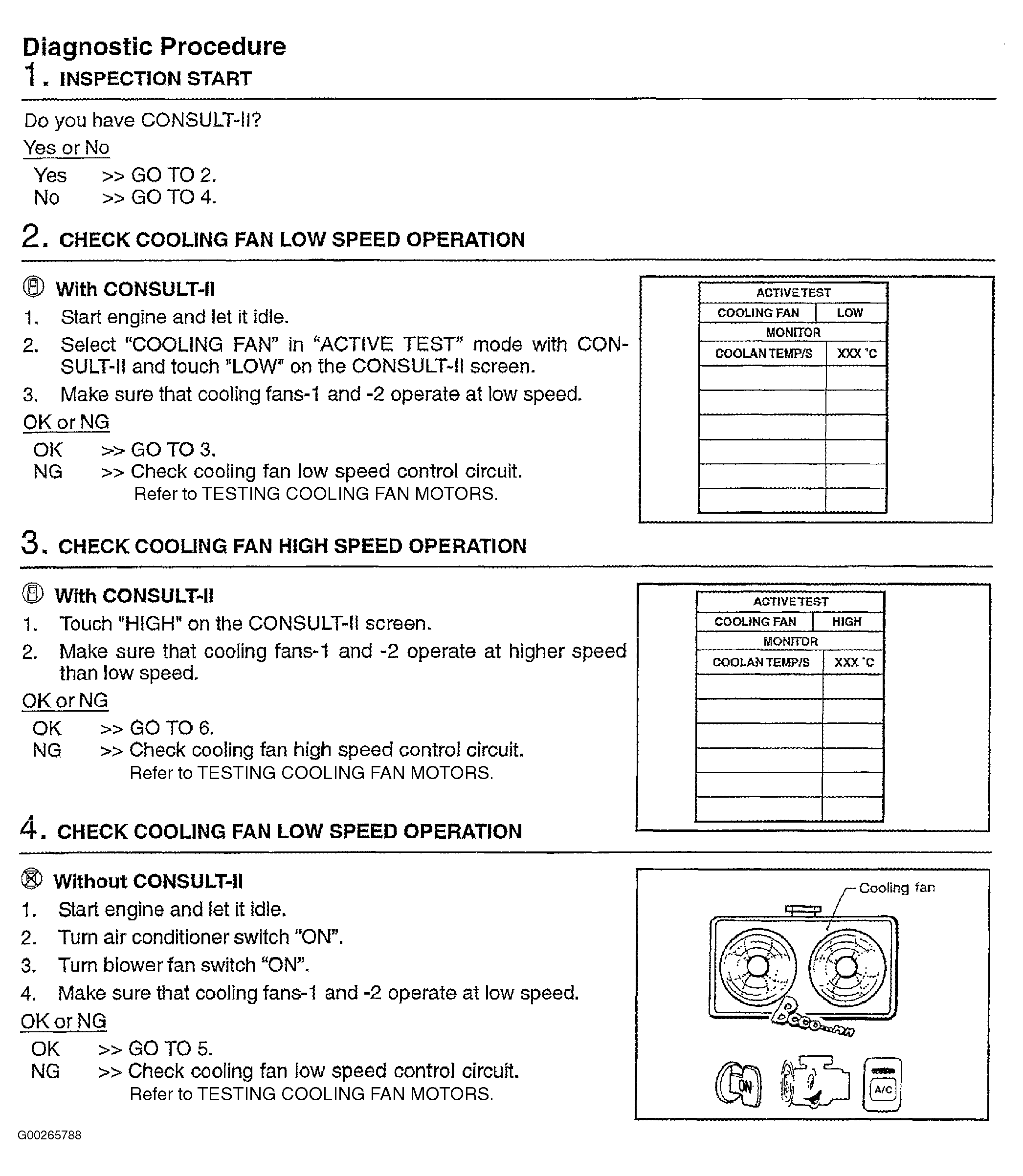

Fig 7: DTC P1217 (7 Of 12)

G00265788

Courtesy of NISSAN MOTOR CO., U.S.A.

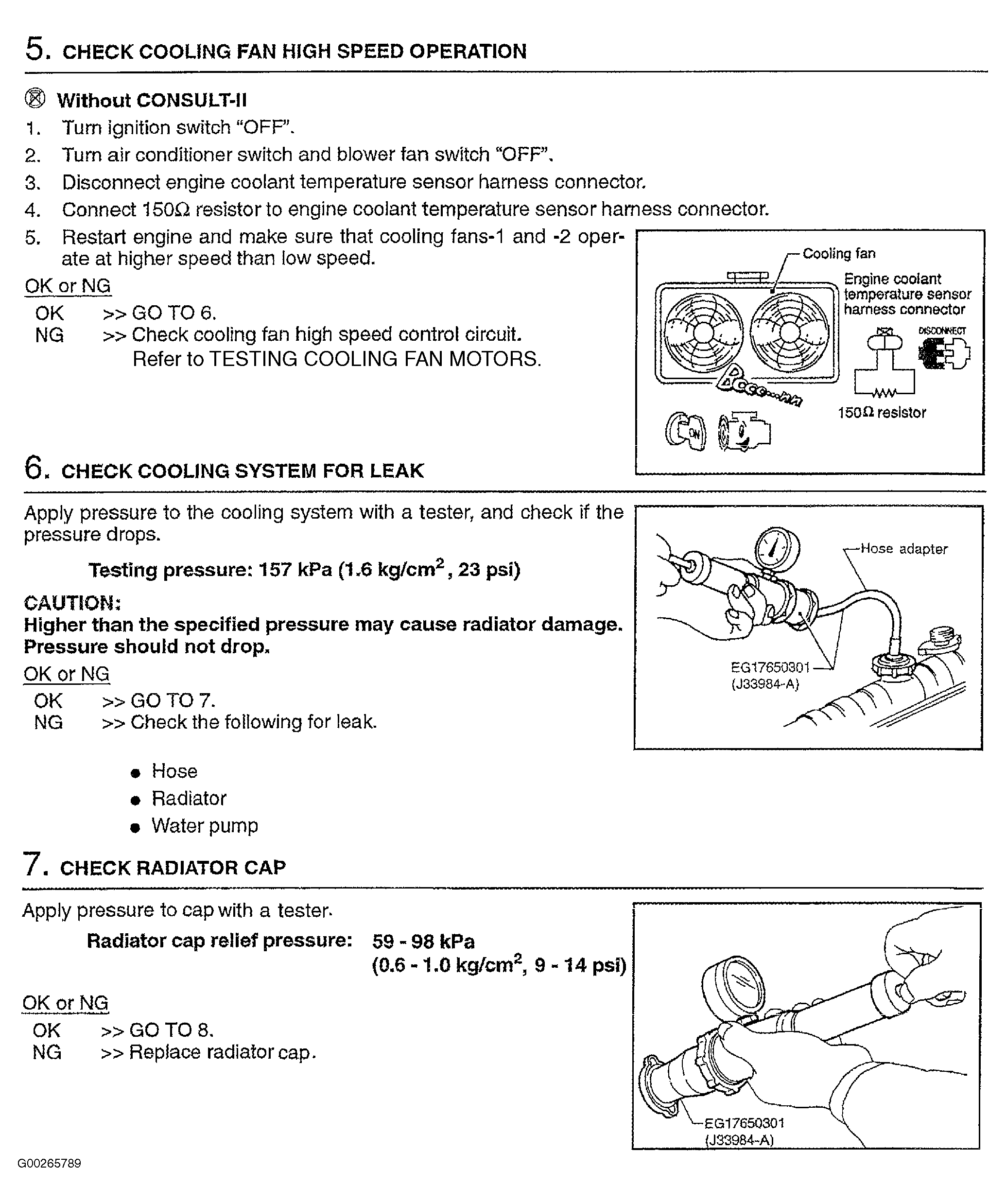

Fig 8: DTC P1217 (8 Of 12)

G00265789

Courtesy of NISSAN MOTOR CO., U.S.A.

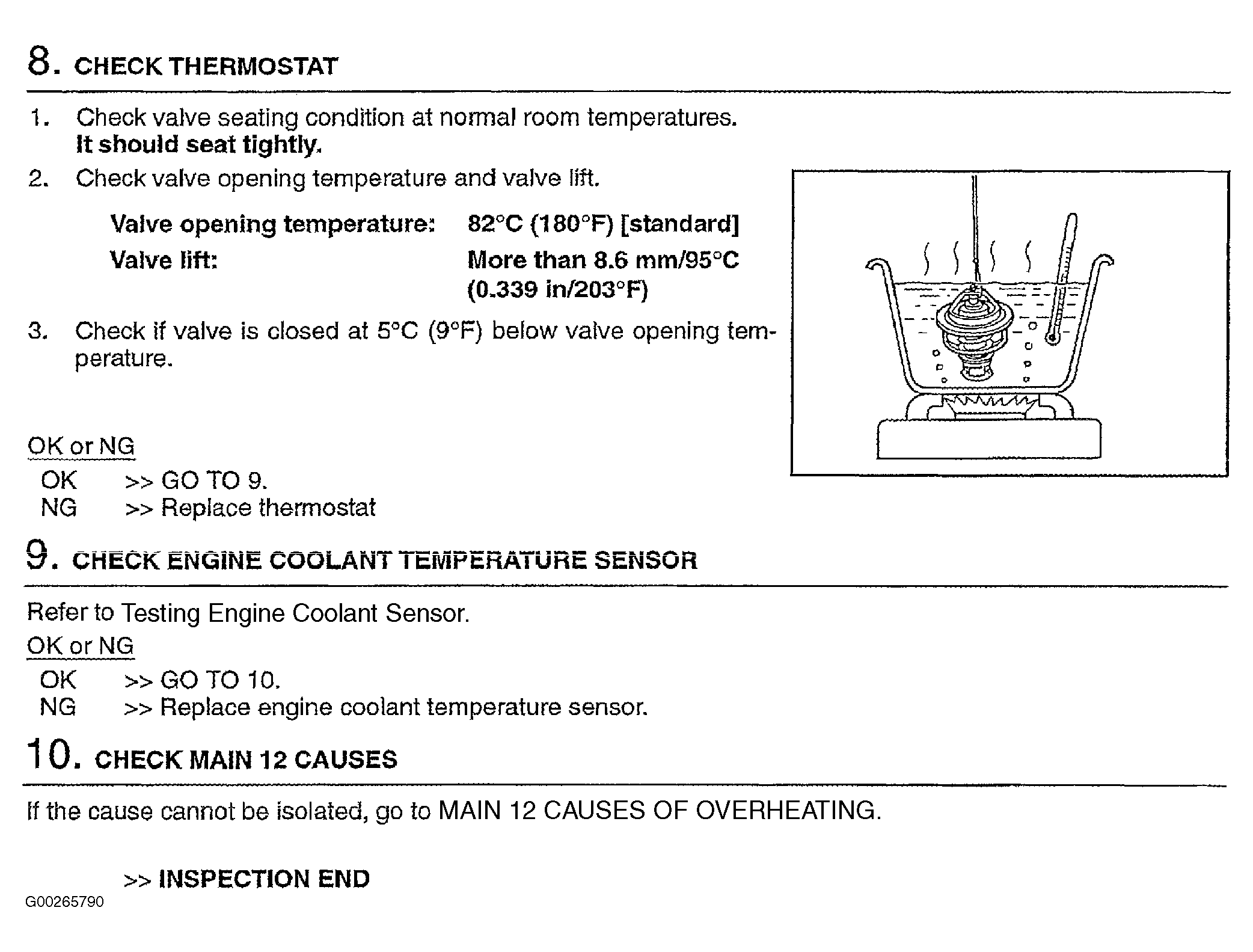

Fig 9: DTC P1217 (9 Of 12)

G00265790

Courtesy of NISSAN MOTOR CO., U.S.A.

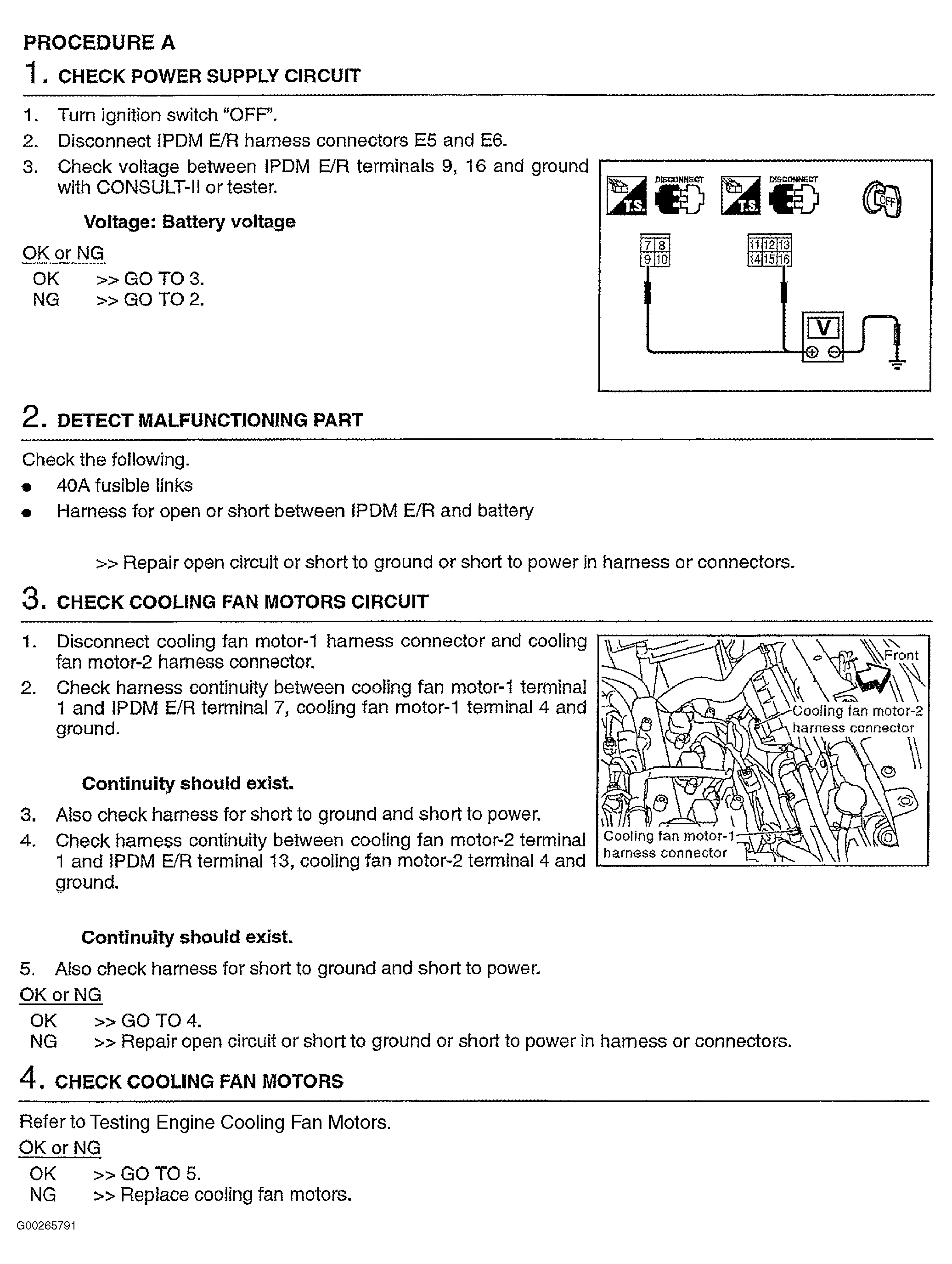

Fig 10: DTC P1217 (10 Of 12)

G00265791

Courtesy of NISSAN MOTOR CO., U.S.A.

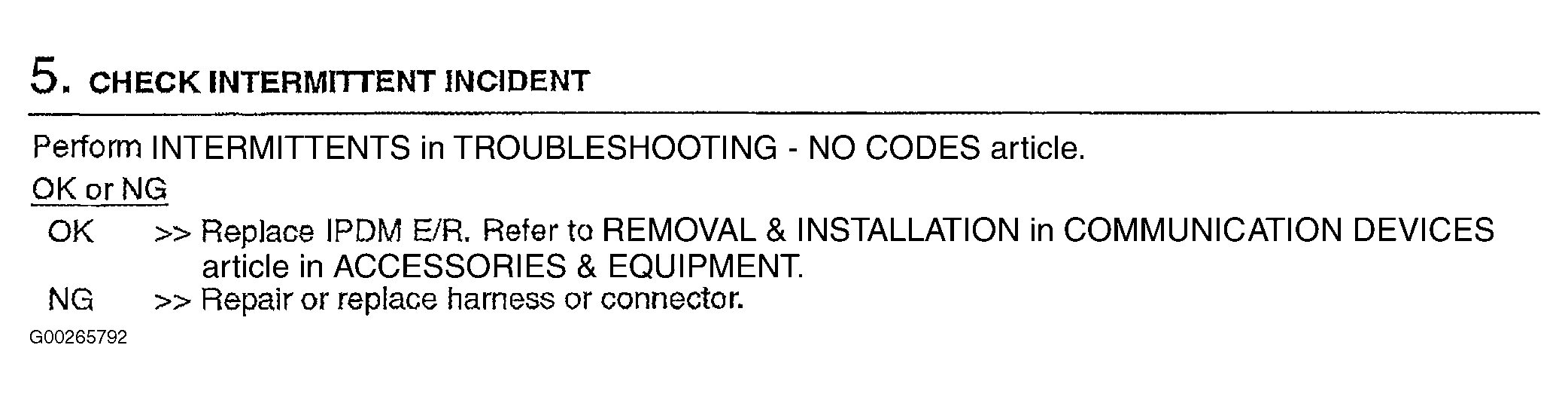

Fig 11: DTC P1217 (11 Of 12)

G00265792

Courtesy of NISSAN MOTOR CO., U.S.A.

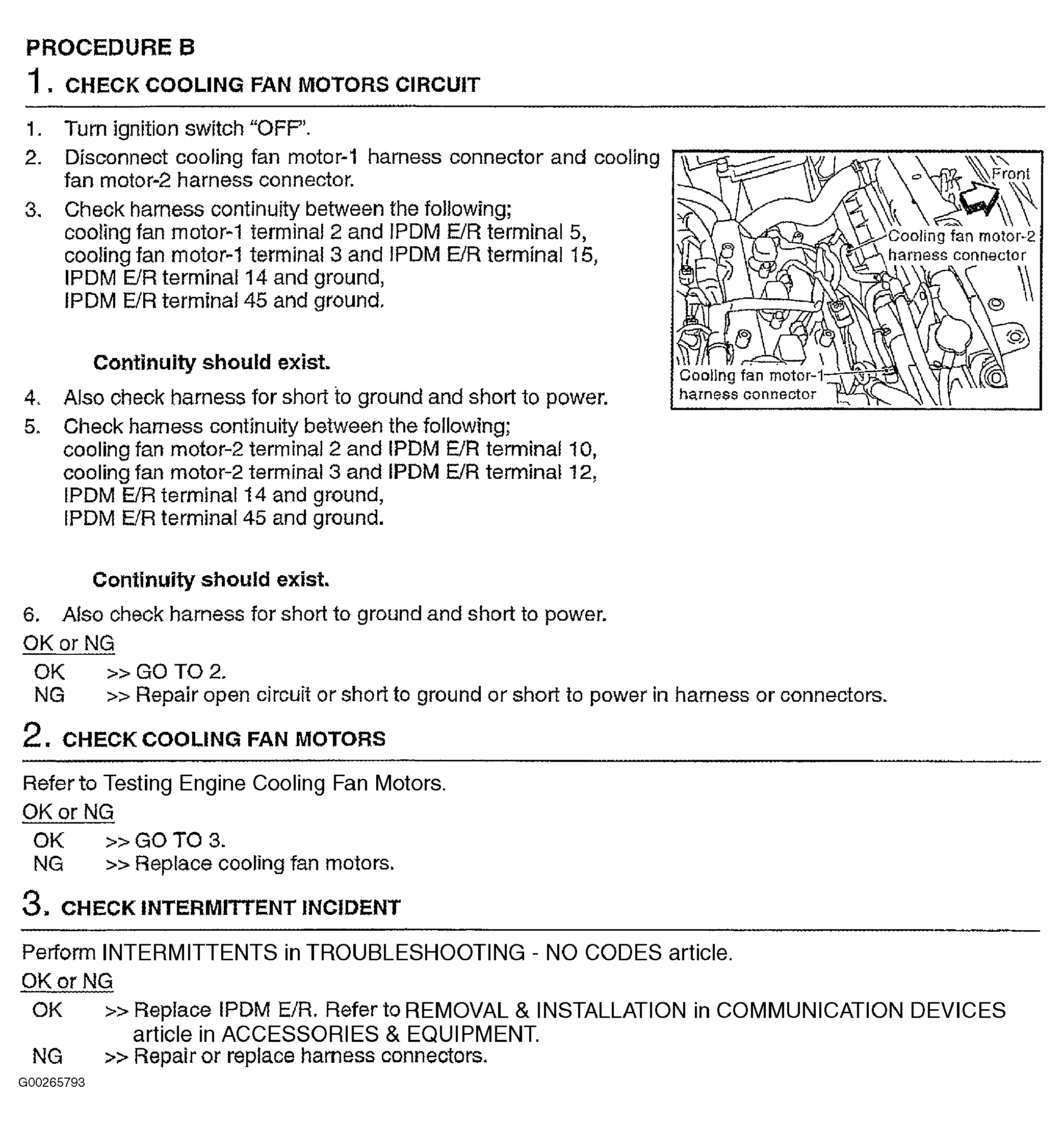

Fig 12: DTC P1217 (12 Of 12)

G00265793

Courtesy of NISSAN MOTOR CO., U.S.A.

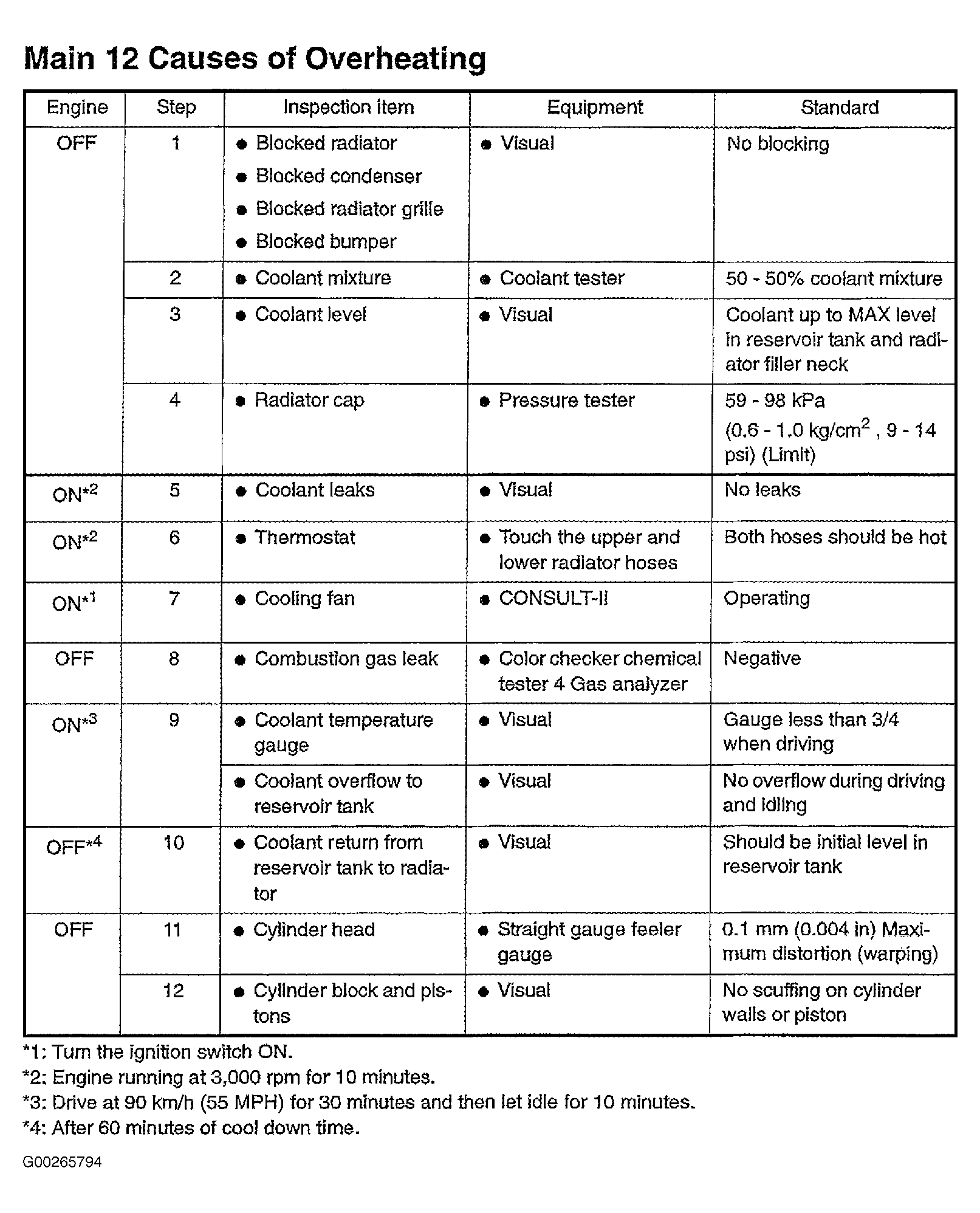

Fig 13: 12 Main Causes Of Overheating

G00265794

Courtesy of NISSAN MOTOR CO., U.S.A.

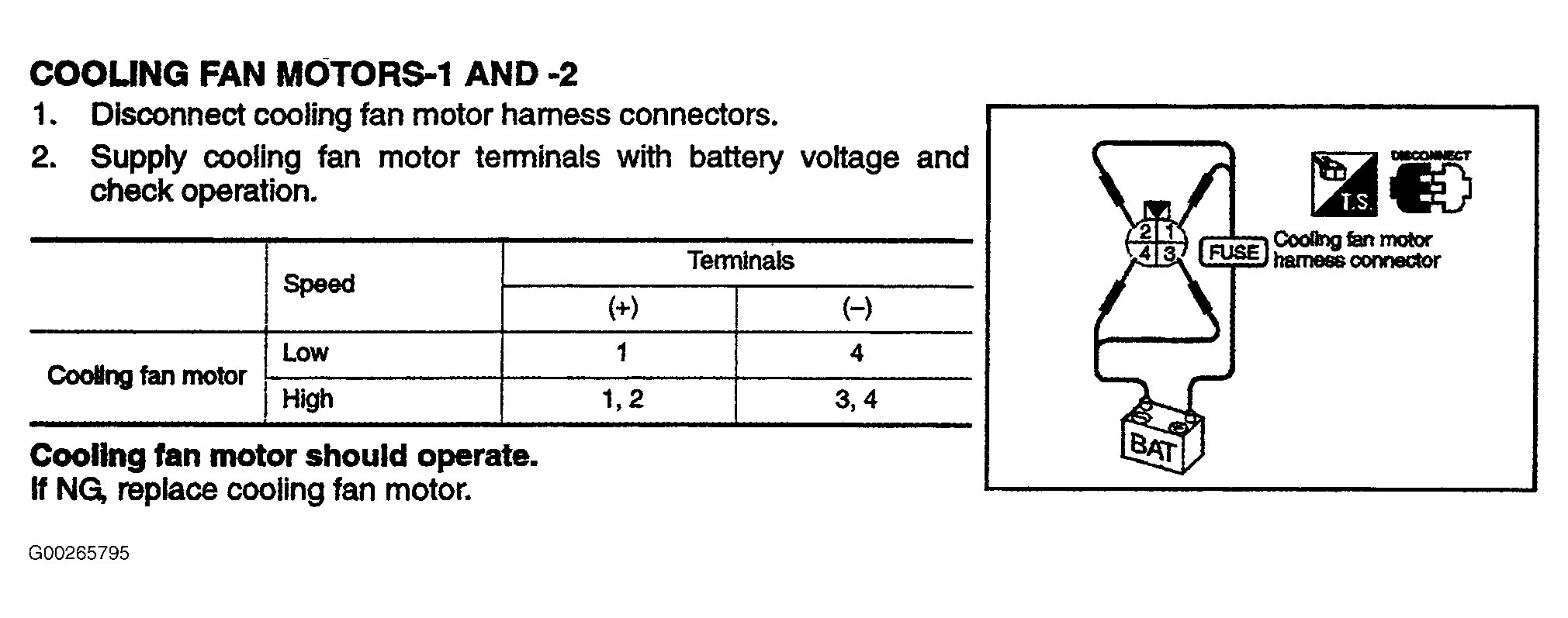

Fig 14: Testing Cooling Fan Motors

G00265795

Courtesy of NISSAN MOTOR CO., U.S.A.
