DTC P0101: Mass Airflow Sensor Circuit Range/Performance Problem

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 8 .

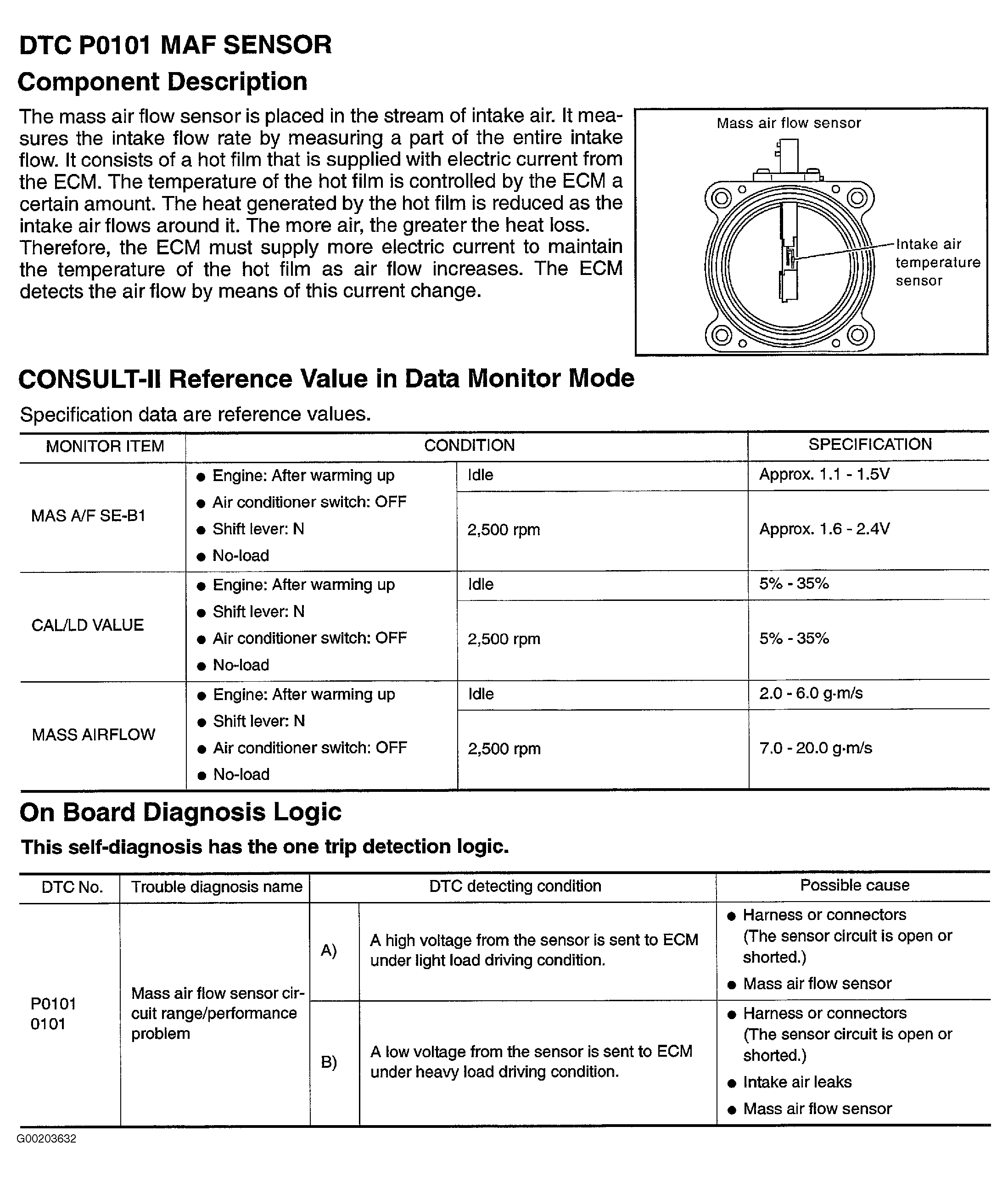

Fig 1: DTC P0101 (1 Of 7)
G00203632Courtesy of NISSAN MOTOR CO., U.S.A.

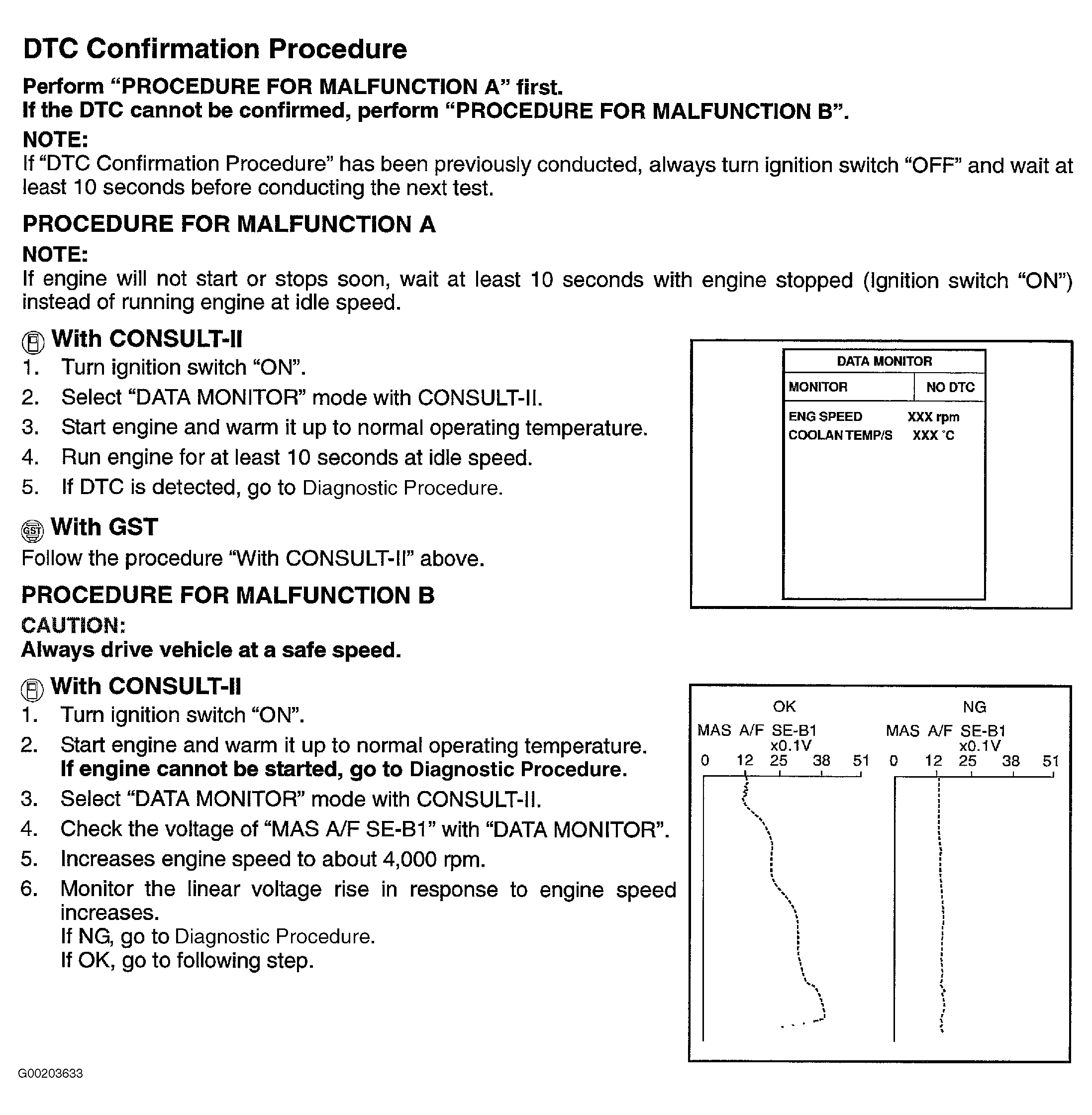

Fig 2: DTC P0101 (2 Of 7)
G00203633Courtesy of NISSAN MOTOR CO., U.S.A.

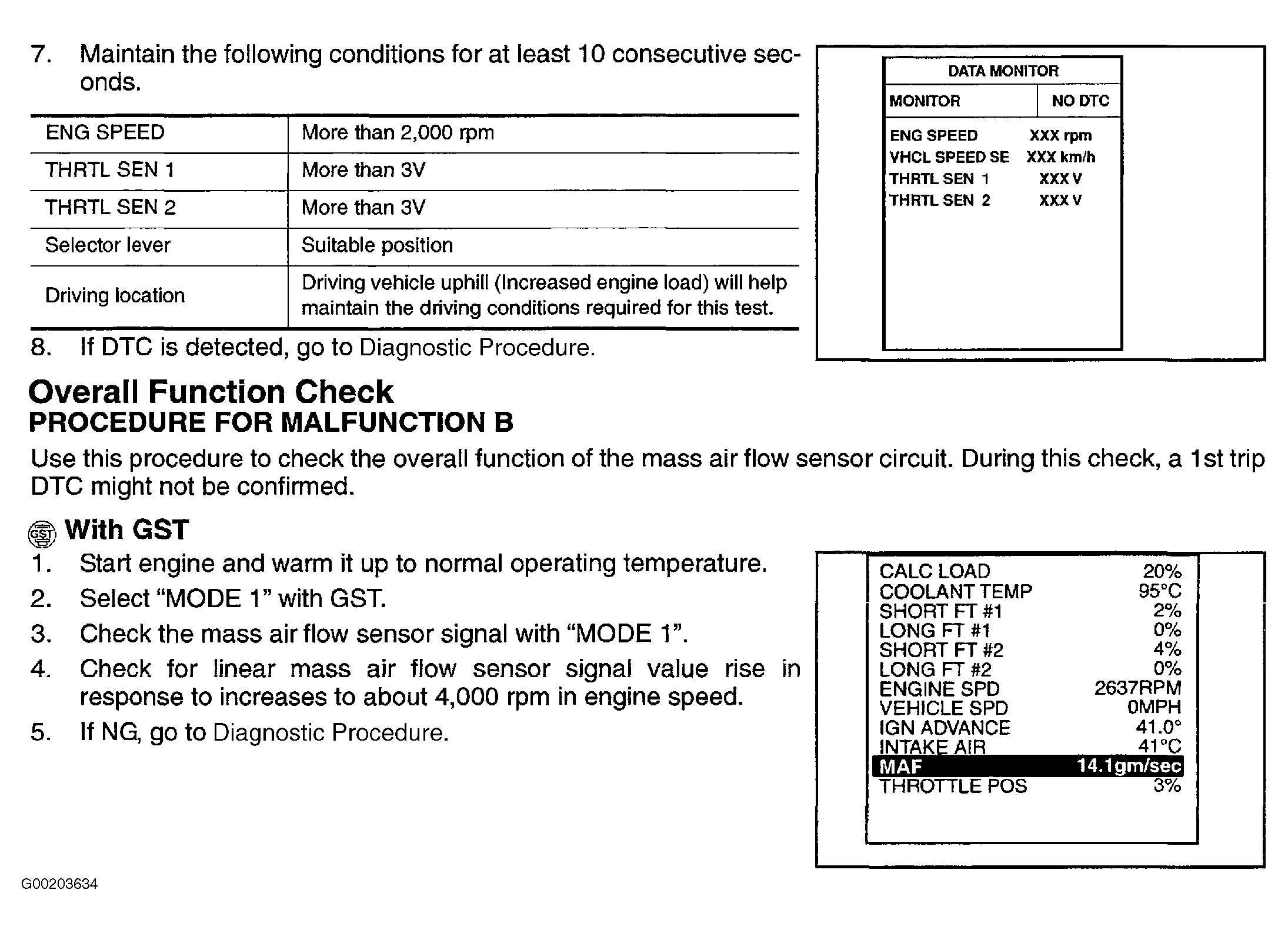

Fig 3: DTC P0101 (3 Of 7)
G00203634Courtesy of NISSAN MOTOR CO., U.S.A.

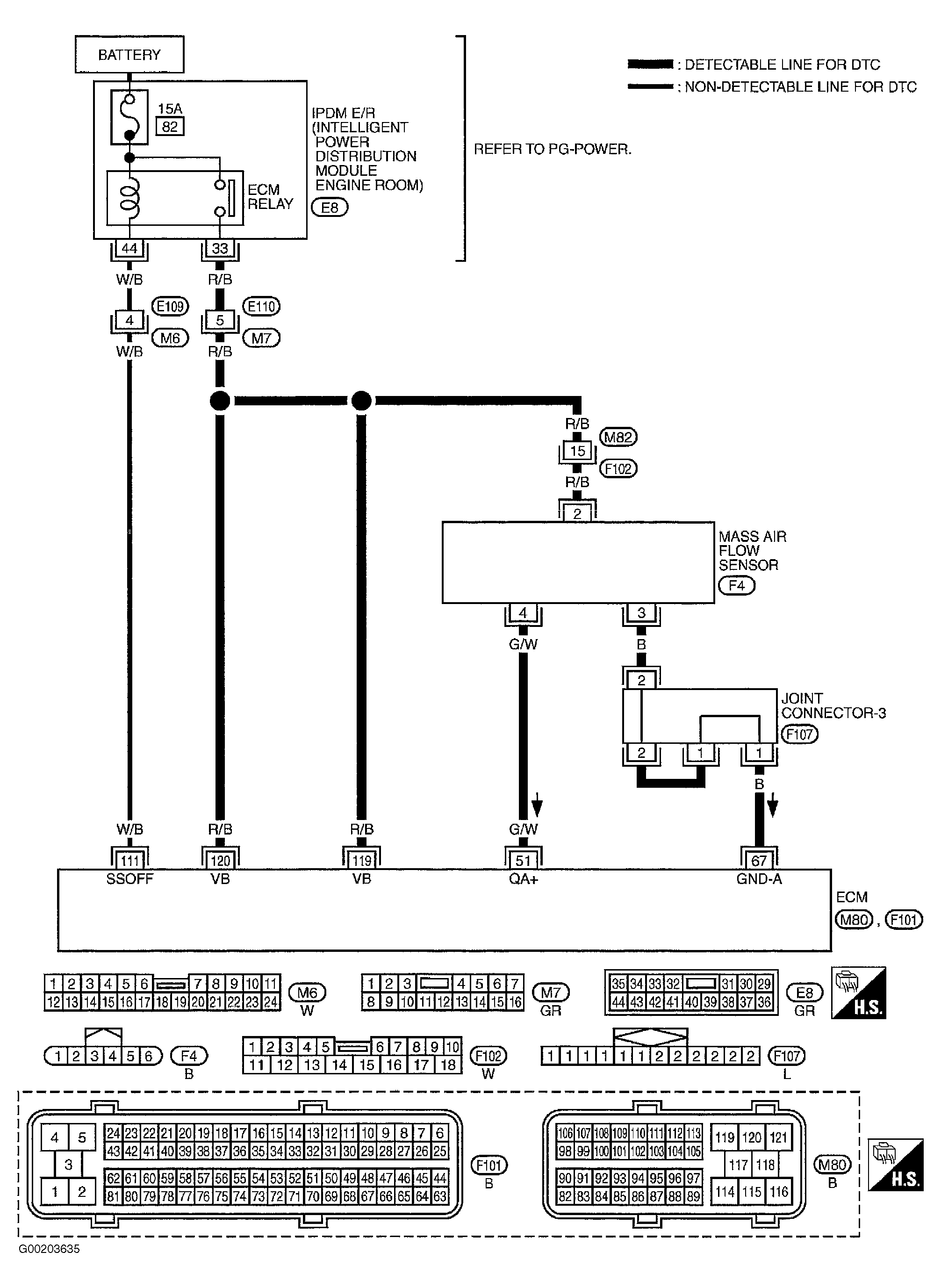

Fig 4: DTC P0101 (4 Of 7)
G00203635Courtesy of NISSAN MOTOR CO., U.S.A.

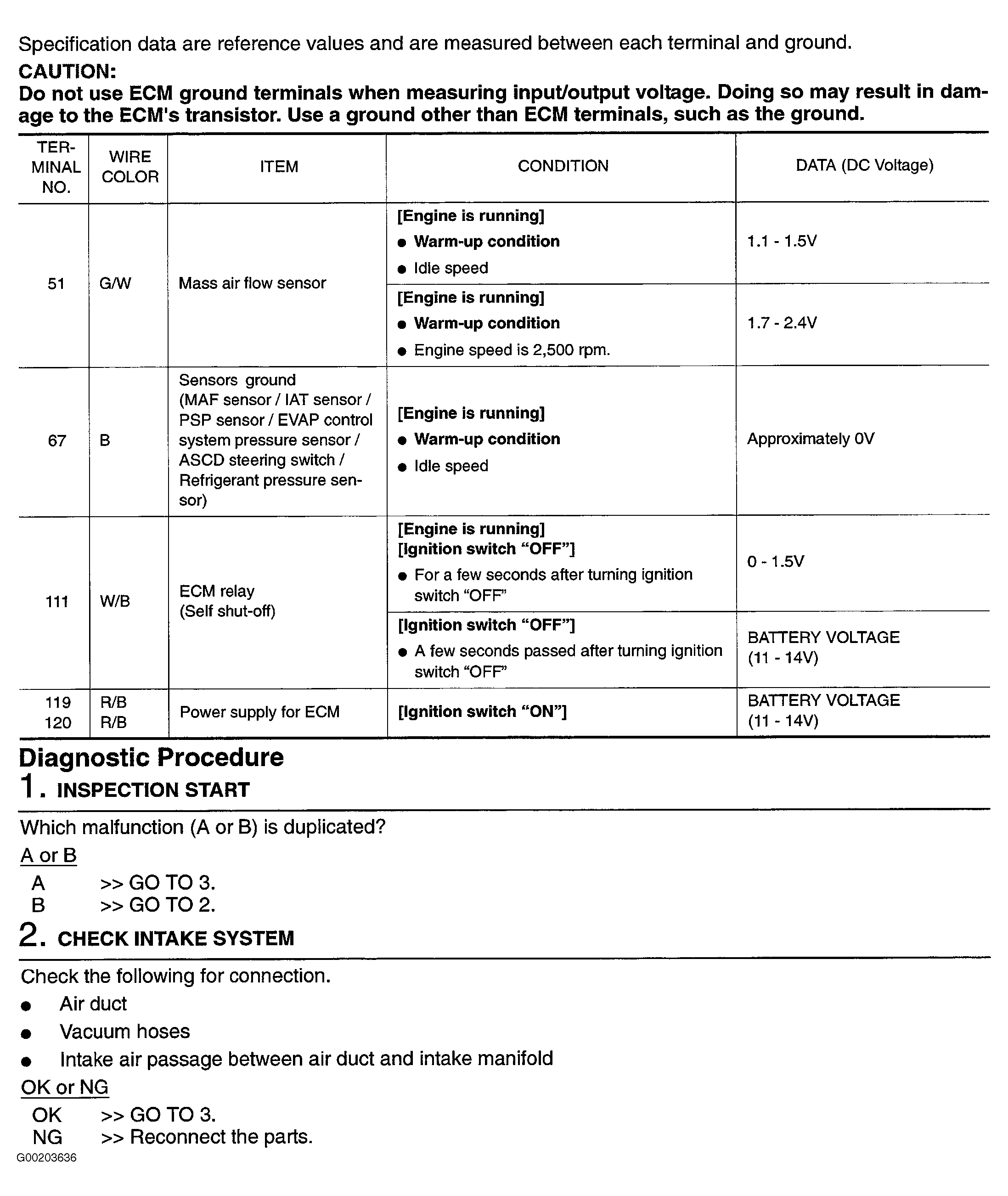

Fig 5: DTC P0101 (5 Of 7)
G00203636Courtesy of NISSAN MOTOR CO., U.S.A.

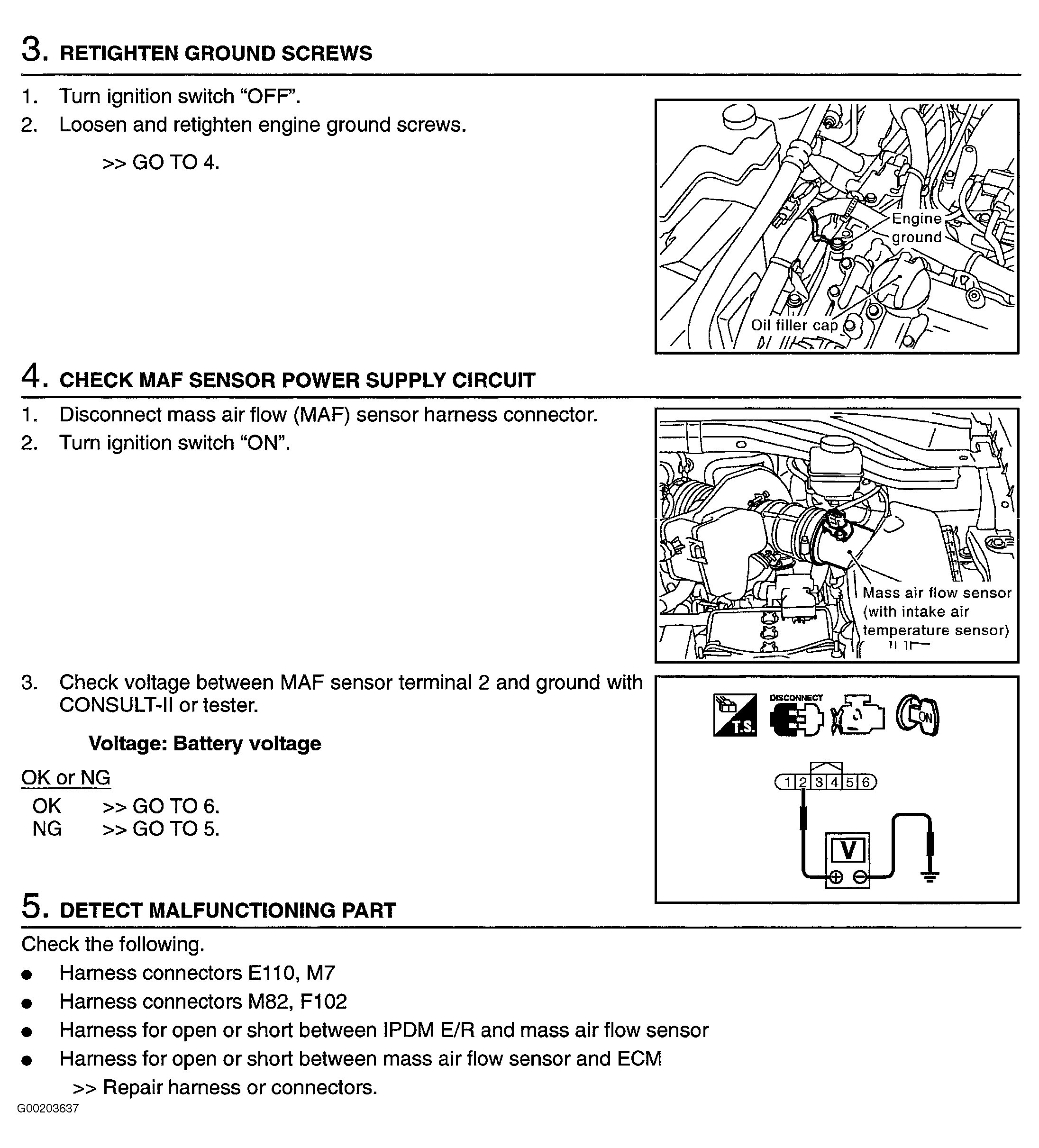

Fig 6: DTC P0101 (6 Of 7)
G00203637Courtesy of NISSAN MOTOR CO., U.S.A.

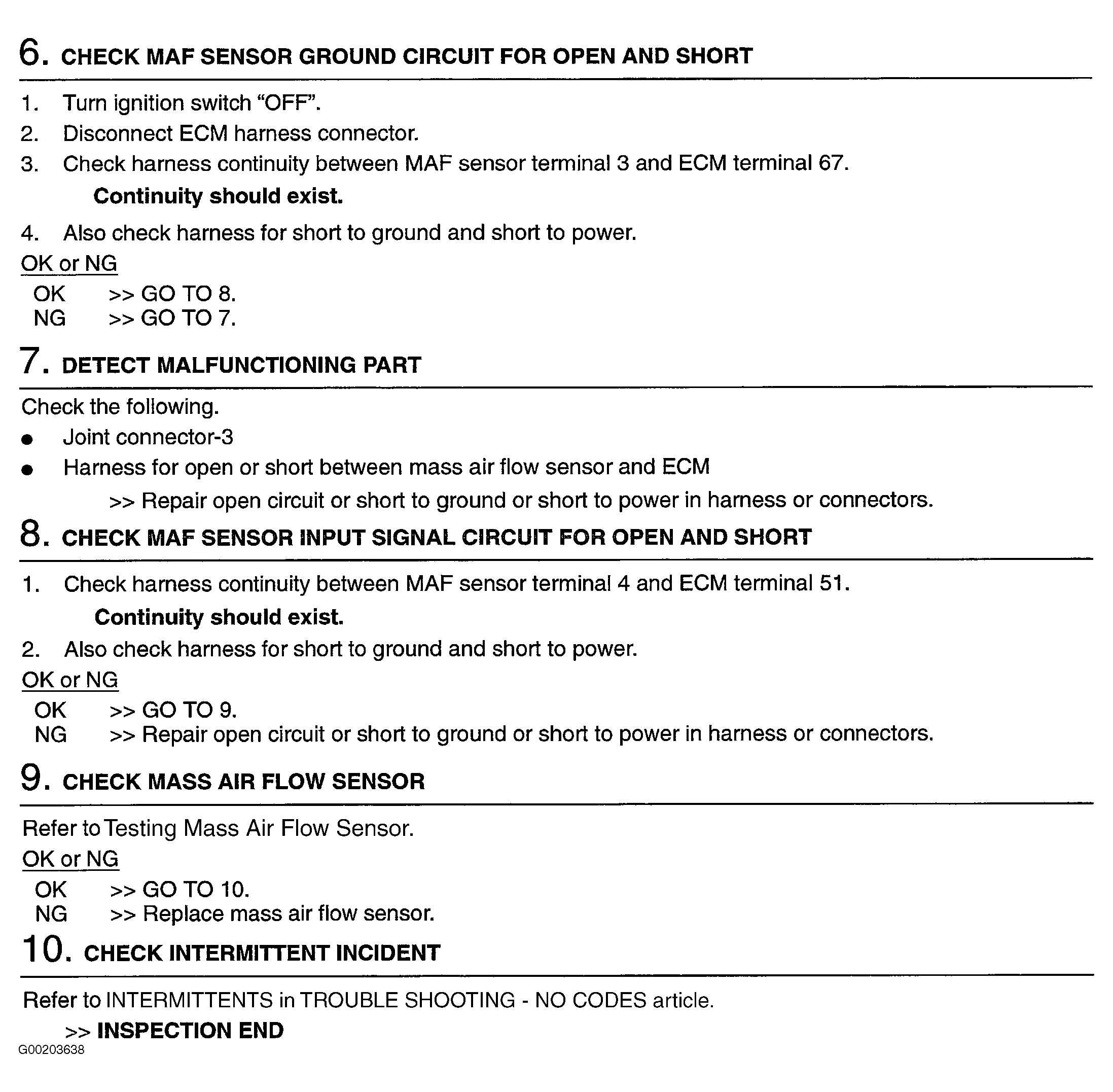

Fig 7: DTC P0101 (7 Of 7)
G00203638Courtesy of NISSAN MOTOR CO., U.S.A.

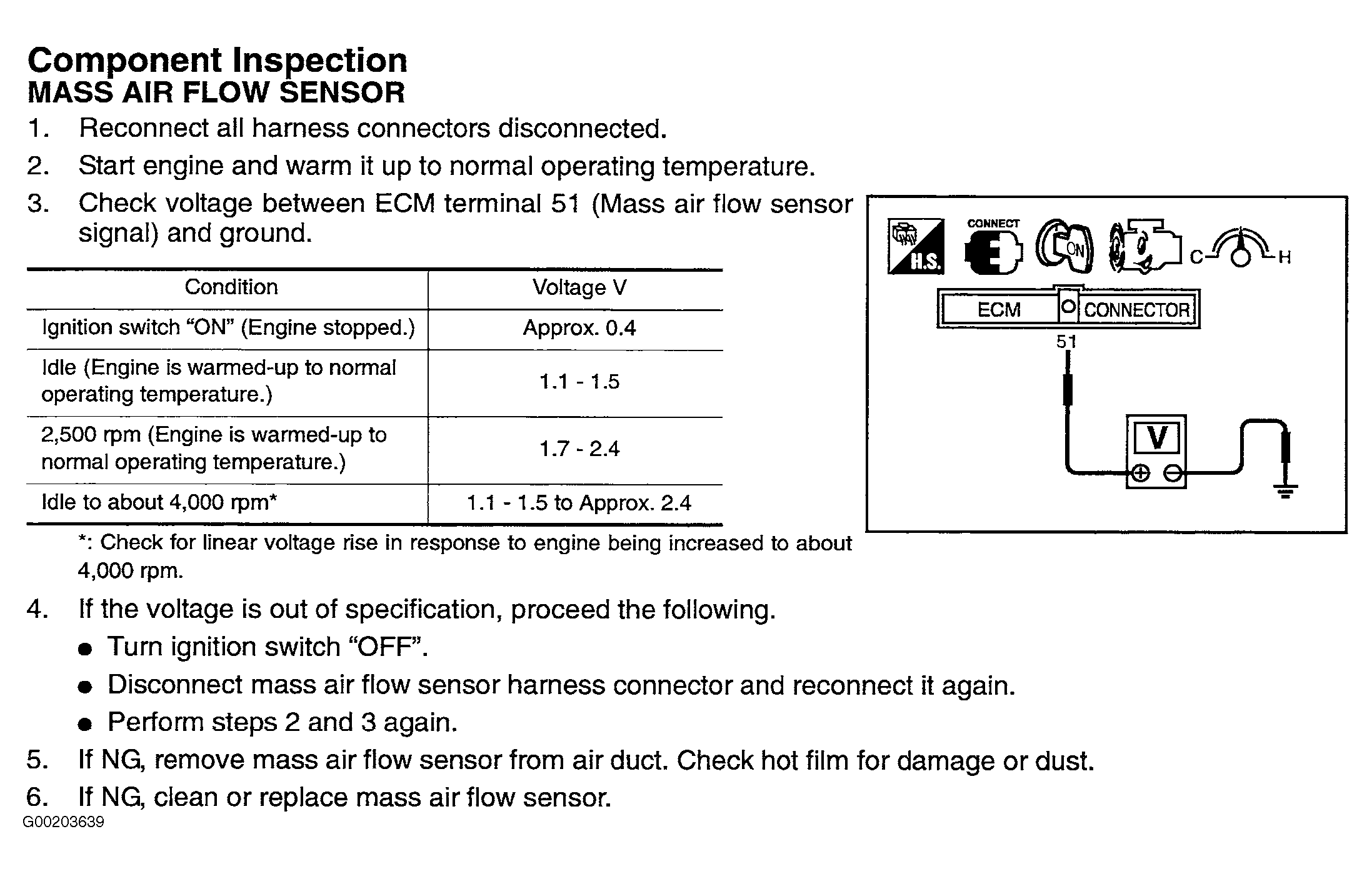

Fig 8: Testing Mass Air Flow Sensor
G00203639Courtesy of NISSAN MOTOR CO., U.S.A.
