Vacuum Hose Drawing

WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

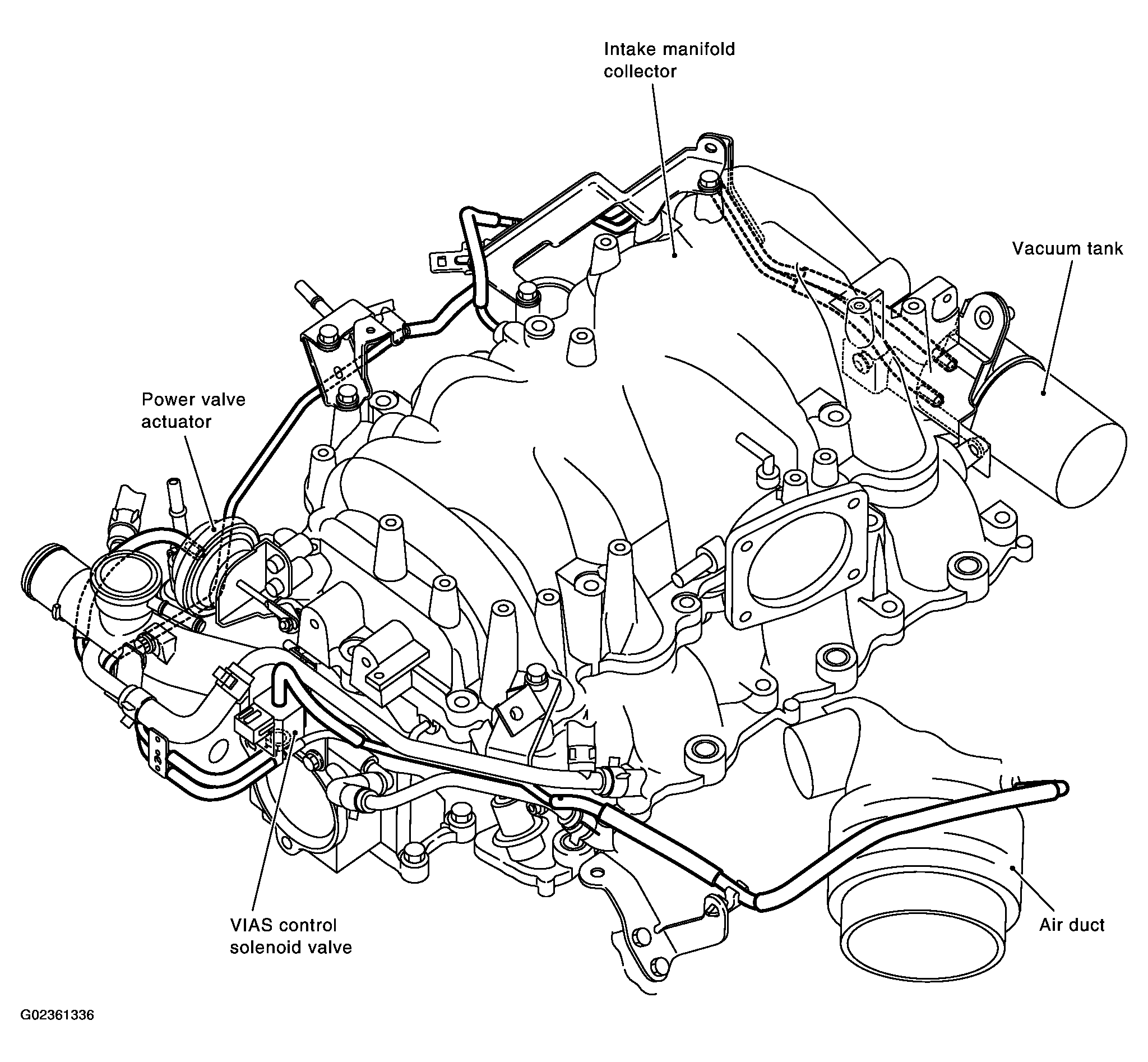

Fig 1: Identifying Vacuum Hose Drawing

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent
while installing vacuum hoses or purge hoses.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
