With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  2. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
  3. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".

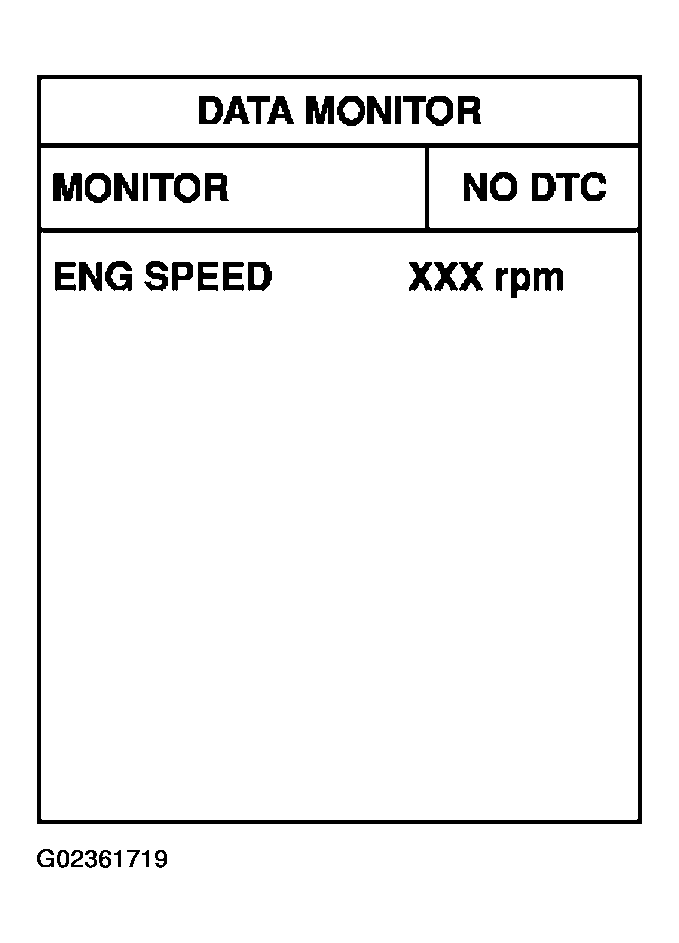

    Fig 1: Identifying Consult-II Data Monitor
    G02361719Courtesy of NISSAN MOTOR CO., U.S.A.
