With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Stop engine and wait at least 10 seconds.
  3. Turn ignition switch ON and select "HO2S1 (B1) P0133" or "HO2S1 (B2) P0153" of "HO2S1" in "DTC WORK SUPPORT" mode with CONSULT-II.
  4. Touch "START".
  5. Start engine and let it idle for at least 3 minutes.
    NOTE: Do not raise engine speed above 3,000 RPM after this step. If the engine speed limit is exceeded, return to step 5.

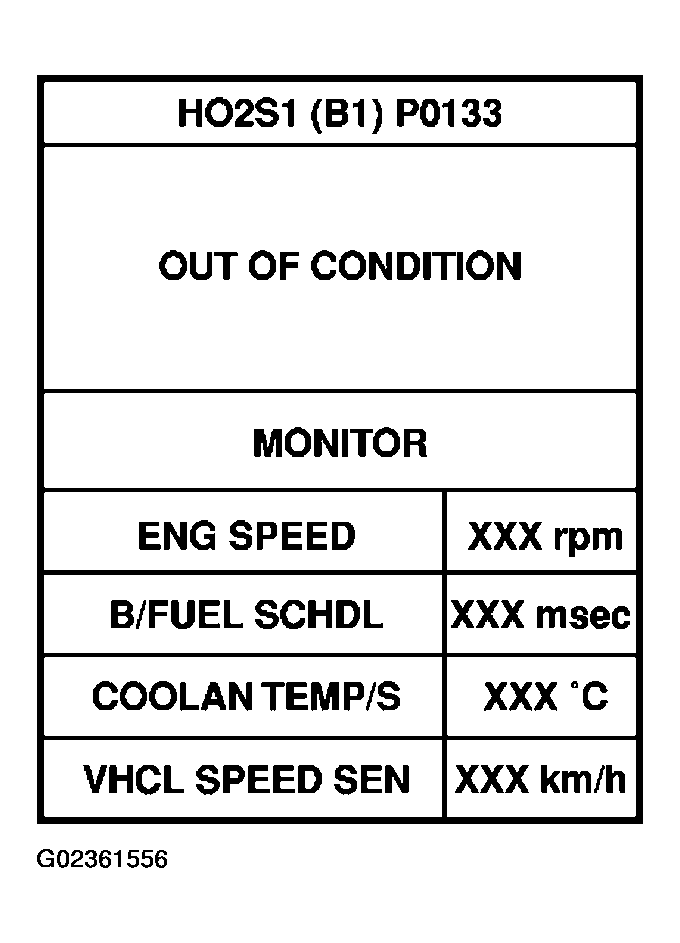

    Fig 1: Identifying Consult-II
    G02361556Courtesy of NISSAN MOTOR CO., U.S.A.
  6. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 40 to 50 seconds.)
    ENGINE SPEED

    ENG SPEED 1,350 - 2,900 rpm
    Vehicle speed More than 80 km/h (50 MPH)
    B/FUEL SCHDL 1.7 - 12.0 msec
    Selector lever Suitable position

    If "TESTING" is not displayed after 5 minutes, retry from step 2.

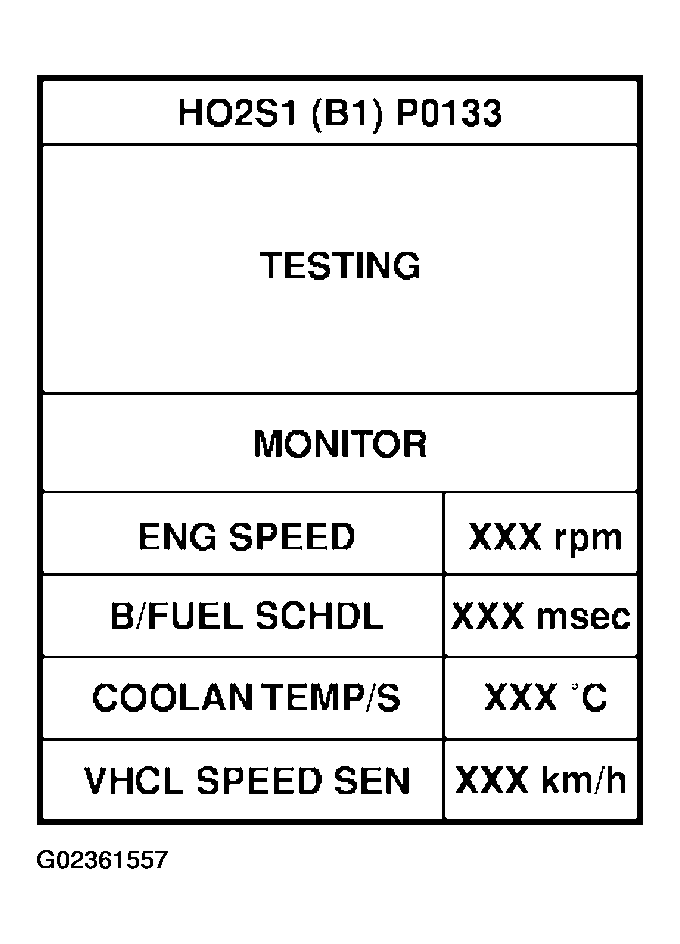

    Fig 2: Identifying Consult-II
    G02361557Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, Refer to "DIAGNOSTIC PROCEDURE  ".

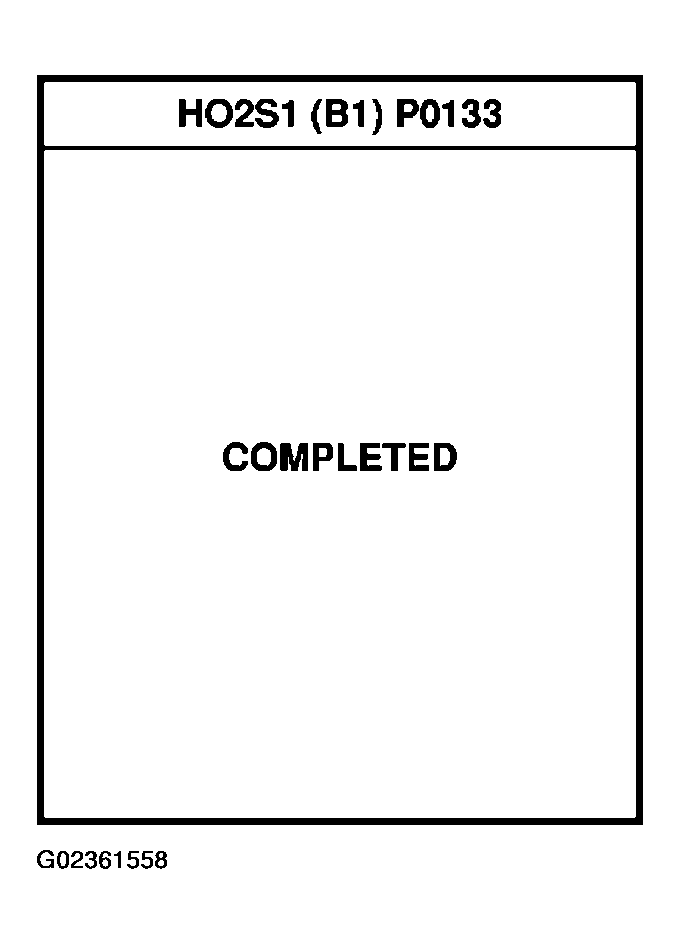

    Fig 3: Identifying Consult-II Completed
    G02361558Courtesy of NISSAN MOTOR CO., U.S.A.
