Rear Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR STABILIZER LINK ASSEMBLY LH

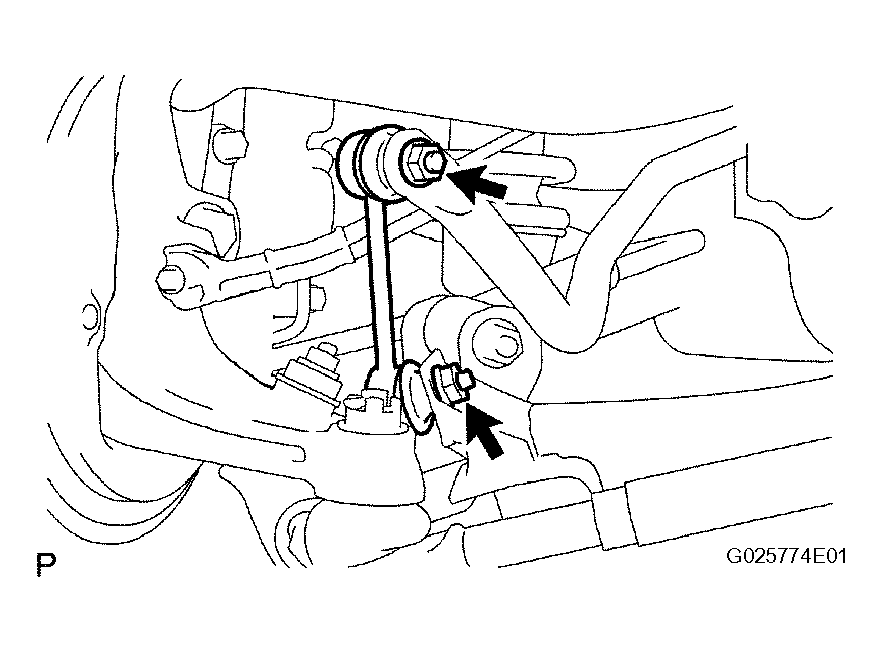

1. Remove the 2 nuts and stabilizer link LH.
  HINT:

  If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.
Fig 1: Removing Stabilizer Link LH Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR STABILIZER LINK ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR STABILIZER BAR

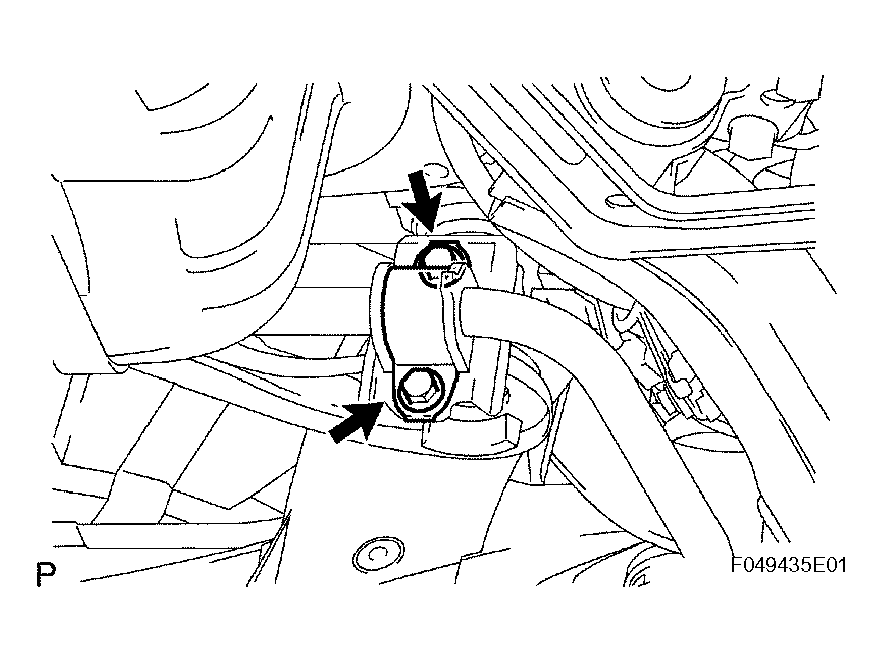

1. Remove the 2 bolts, 2 nuts and 2 No. 3 stabilizer bar brackets from the suspension member.
2. Remove the 2 stabilizer bushes from the stabilizer bar.
Fig 2: Removing Stabilizer Bushes From Stabilizer Bar
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
