Output Shaft: Inspection
- INSPECT OUTPUT SHAFT

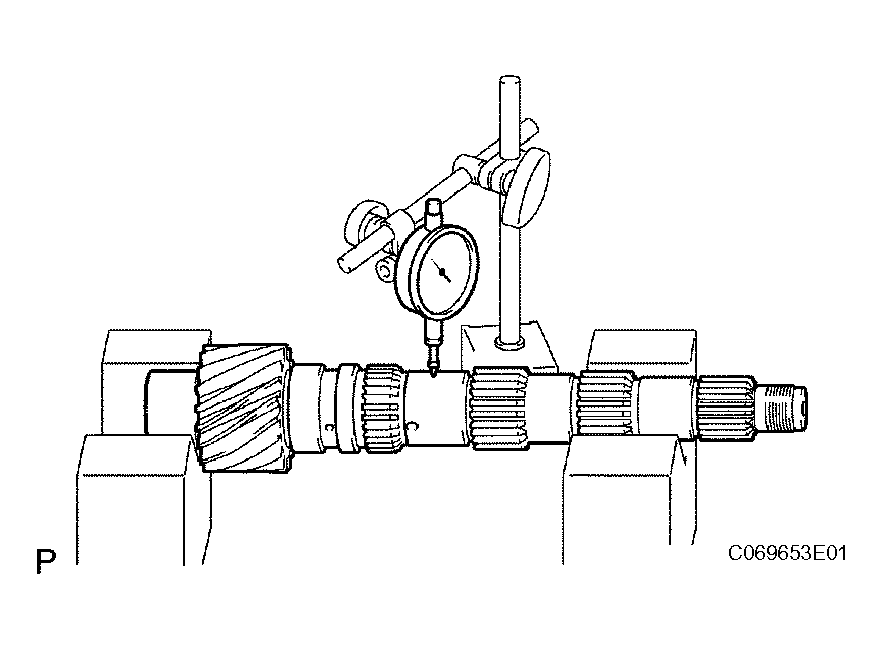

- Using a V-block and a dial indicator, inspect the shaft for runout.
Maximum runout:
0.03 mm (0.0012 in.)
If the runout is greater than the maximum, replace the output shaft.

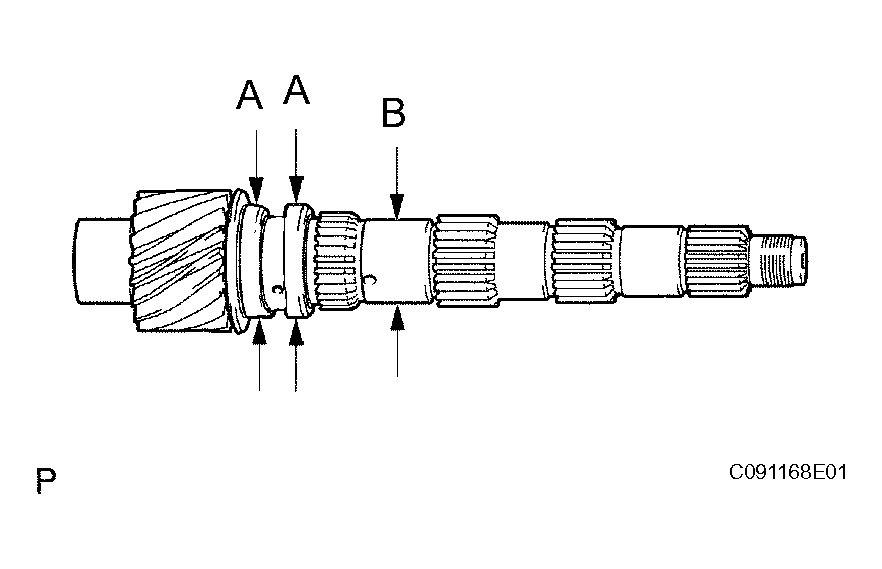

- Using a micrometer, measure the outside diameter of the output shaft journal surface.
Standard outside diameter
Journal Position Specified Condition A 37.610 to 37.626 mm (1.4807 to 1.4813 in.) B 34.502 to 34.512 mm (1.3583 to 1.3587 in.) Minimum outside diameter
Journal Position Specified Condition A 37.610mm (1.4803 in.) B 34.502 mm (1.3583 in.) If the outside diameter is less than the minimum, replace the output shaft.
- Using a V-block and a dial indicator, inspect the shaft for runout.
- INSPECT 2ND GEAR

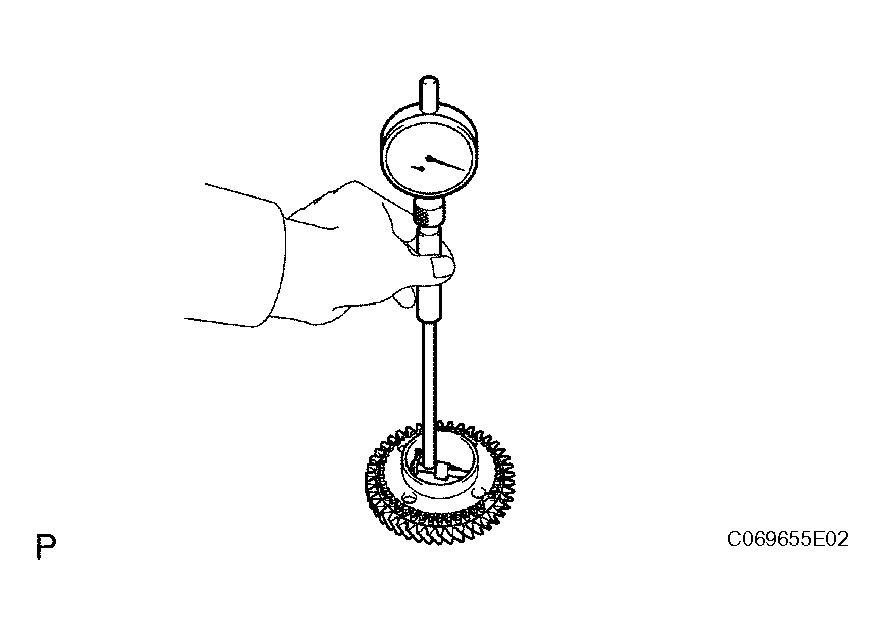

- Using a cylinder gauge, measure the inside diameter.
Standard inside diameter:
50.009 to 50.025 mm (1.9689 to 50.025 in.)
Maximum inside diameter:
50.025 mm (1.9695 in.)
If the inside diameter is greater than the maximum, replace the 2nd gear.
- Using a cylinder gauge, measure the inside diameter.
- INSPECT 1ST GEAR
- Using a cylinder gauge, measure the inside diameter.
Standard inside diameter:
51.009 to 51.025 mm (51.009 to 51.0525 in.)
Maximum inside diameter:
51.025 mm (2.0089 in.)
If the inside diameter is greater than the maximum, replace the 1st gear.
- Using a cylinder gauge, measure the inside diameter.
- INSPECT NO. 2 SYNCHRONIZER RING SET

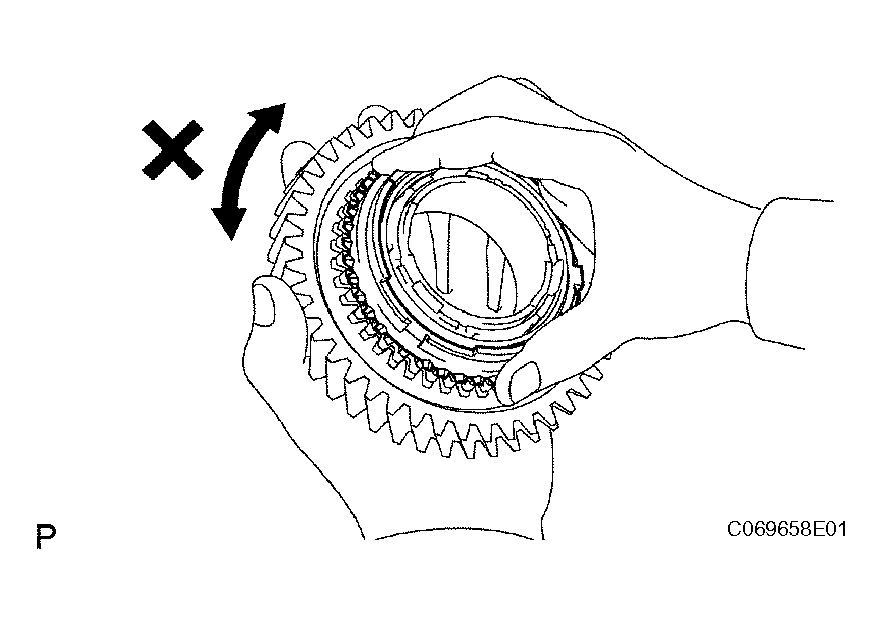

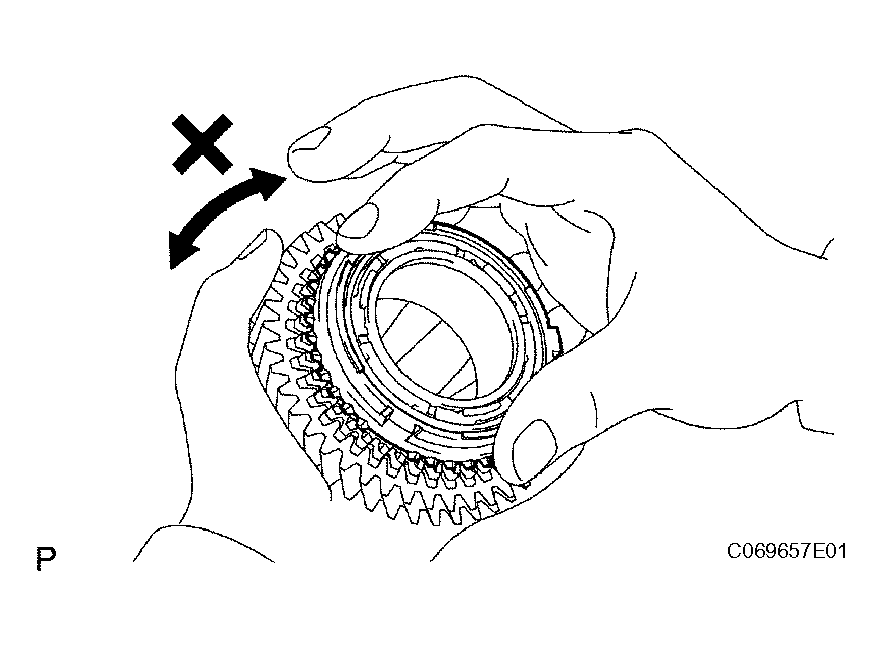

- Coat the 2nd gear cone with gear oil. Turn the No. 2 synchronizer ring set in one direction while pushing it against the No. 2 synchronizer ring set. Check that the ring locks.
If the No. 2 synchronizer ring set does not lock, replace the synchronizer ring or 2nd gear.

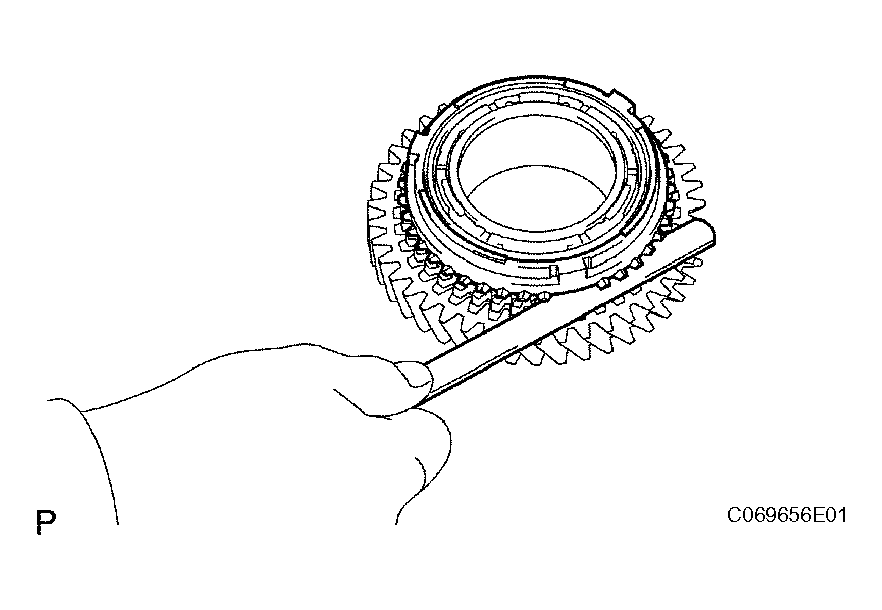

- Check the clearance between the No. 2 synchronizer ring set and 2nd gear while pushing the 2nd gear against the No. 2 synchronizer ring set.
Standard clearance:
0.70 to 1.45 mm (0.0276 to 0.0571 in.)
If the clearance is out of specification, replace the No. 2 synchronizer ring set with a new one.
- Coat the 2nd gear cone with gear oil. Turn the No. 2 synchronizer ring set in one direction while pushing it against the No. 2 synchronizer ring set. Check that the ring locks.
- INSPECT NO. 1 SYNCHRONIZER RING SET
- Coat the 1st gear cone with gear oil. Turn the No. 1 synchronizer ring set in one direction while pushing it against the 1st gear cone. Check that the ring locks.
If the No. 1 synchronizer ring set does not lock, replace it with a new one.

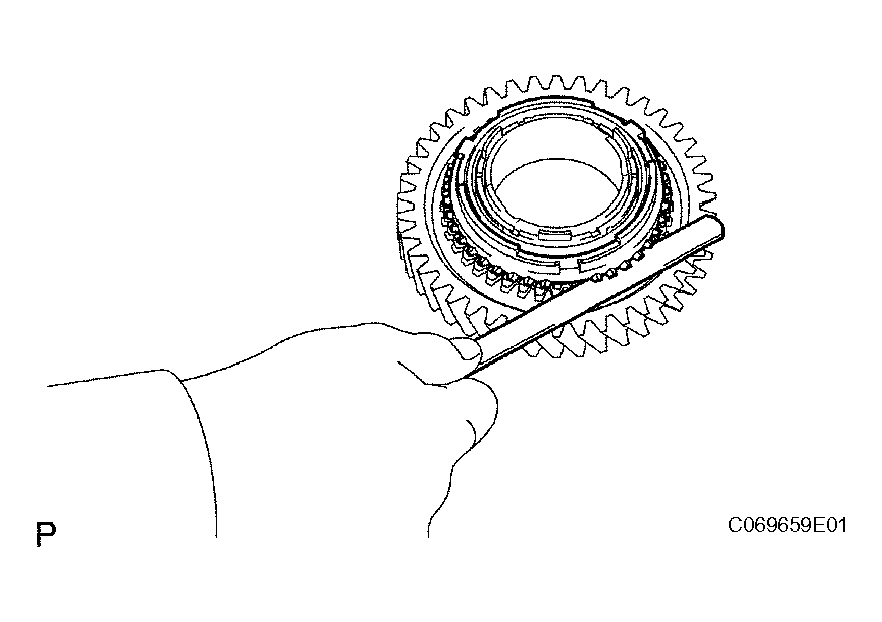

- Check the clearance between the No. 1 synchronizer ring set and 1st gear while pushing the 1st gear against the cone of the No. 1 synchronizer ring set.
Standard clearance:
0.70 to 1.45 mm (0.0276 to 0.0571 in.)
If the clearance is out of specification, replace the No. 1 synchronizer ring set with a new one.
- Coat the 1st gear cone with gear oil. Turn the No. 1 synchronizer ring set in one direction while pushing it against the 1st gear cone. Check that the ring locks.
- INSPECT REVERSE GEAR

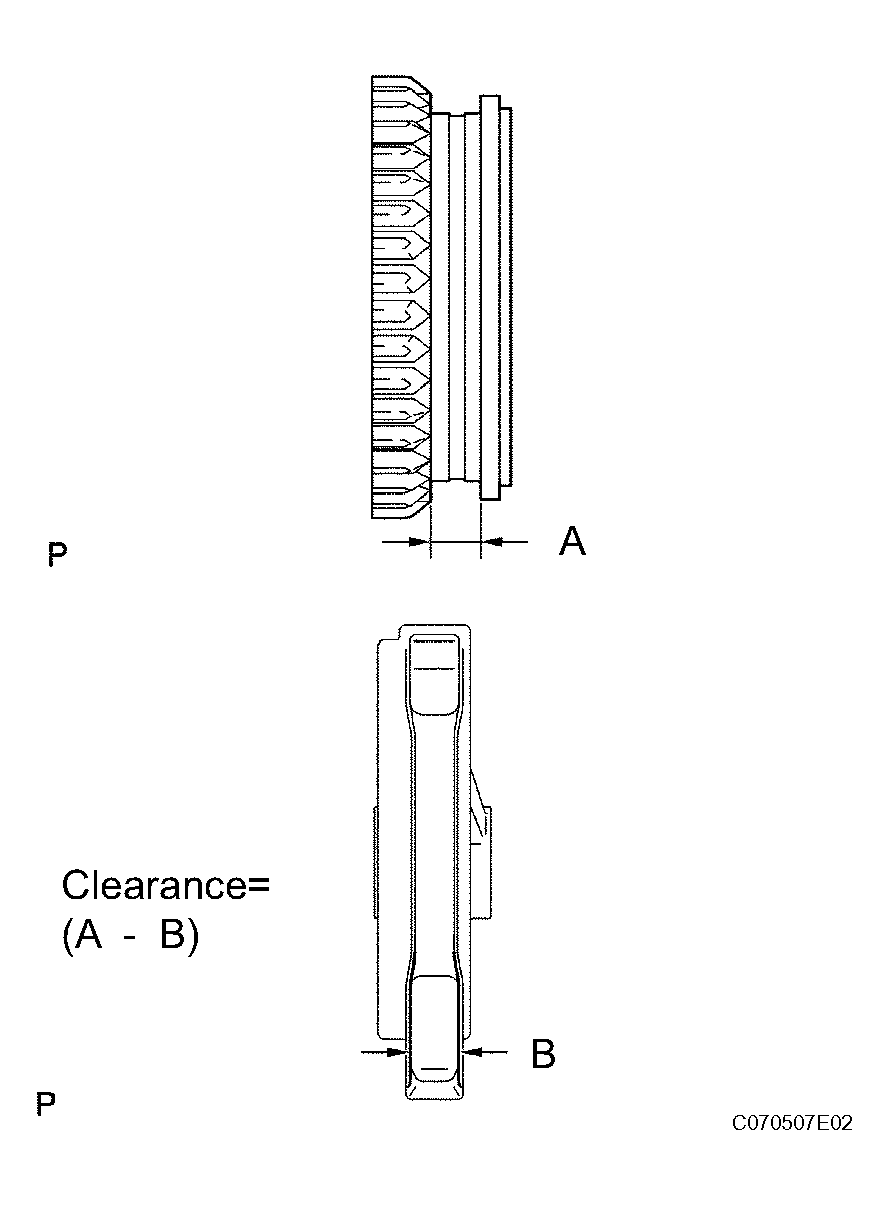

- Using vernier calipers, measure the width of the reverse gear groove (A) and thickness of the claw part on the No. 1 gear shift fork (B), and calculate the clearance.
Standard clearance:
A - B = 0.15 to 0.35 mm (0.0276 to 0.0571 in.)
If the clearance is out of specification, replace the reverse gear and No. 1 gear shift fork with new ones.
- Using vernier calipers, measure the width of the reverse gear groove (A) and thickness of the claw part on the No. 1 gear shift fork (B), and calculate the clearance.
- INSPECT NO. 1 TRANSMISSION CLUTCH HUB

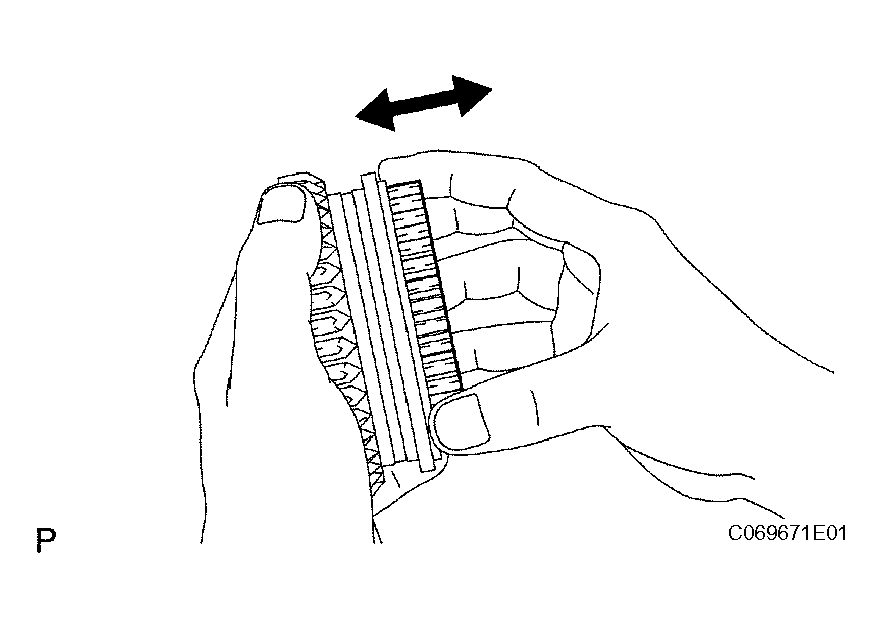

- Check the sliding condition between the No. 1 transmission clutch hub and the reverse gear.
- Check the tip of the spline gear on the sleeve of the reverse gear for wear.
If any defects are found, replace the reverse gear or the No. 1 transmission clutch hub.
