Manual Transaxle Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE COLUMN HOLE COVER SILENCER SHEET (See  REMOVAL  )
  4. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (See  REMOVAL  )
  5. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY (See  REMOVAL  )
  6. REMOVE FRONT WHEEL
  7. REMOVE ENGINE UNDER COVER LH
  8. REMOVE ENGINE UNDER COVER RH
  9. DRAIN TRANSAXLE OIL
    1. Remove the filler plug and gasket.
    2. Remove the drain plug and gasket, and drain the oil.
    3. Install a new gasket and the drain plug.

    Torque: 49 N.m (500 kgf.cm, 36 ft. lbf)

  10. REMOVE CENTER EXHAUST PIPE ASSEMBLY (See  REMOVAL  )
  11. REMOVE HOOD SUB-ASSEMBLY
  12. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
  13. REMOVE AIR CLEANER ASSEMBLY
  14. REMOVE BATTERY CLAMP SUB-ASSEMBLY
  15. REMOVE BATTERY
  16. REMOVE BATTERY TRAY
  17. REMOVE BATTERY CARRIER
    1. Remove the 4 bolts and battery carrier.
  18. REMOVE STARTER ASSEMBLY (See  REMOVAL  )
  19. DISCONNECT WIRE HARNESS
    1. Remove the 3 bolts, and disconnect the 3 wire harnesses.

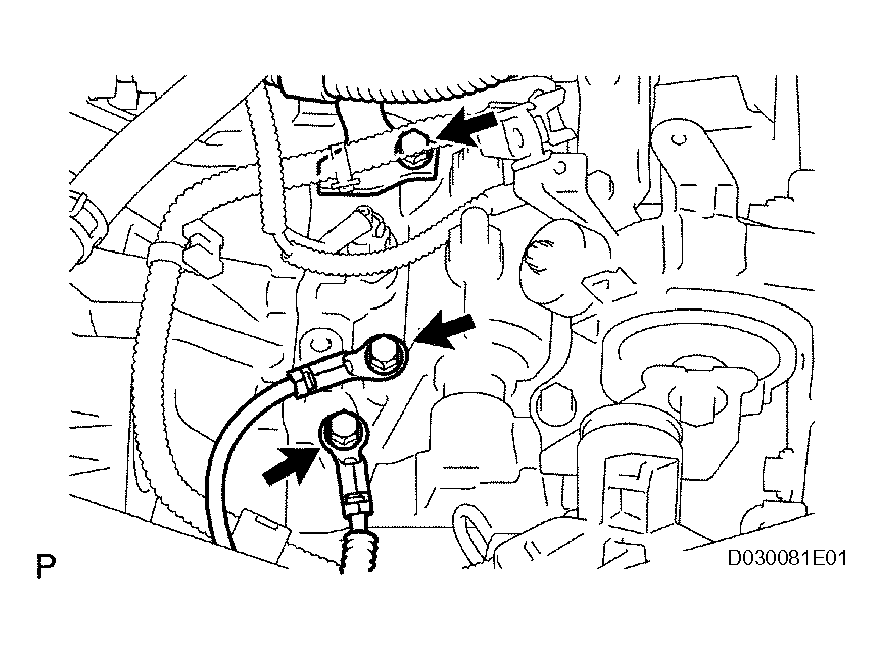

    Fig 1: Disconnecting Wire Harnesses
    G04222487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. DISCONNECT BACK-UP LIGHT SWITCH

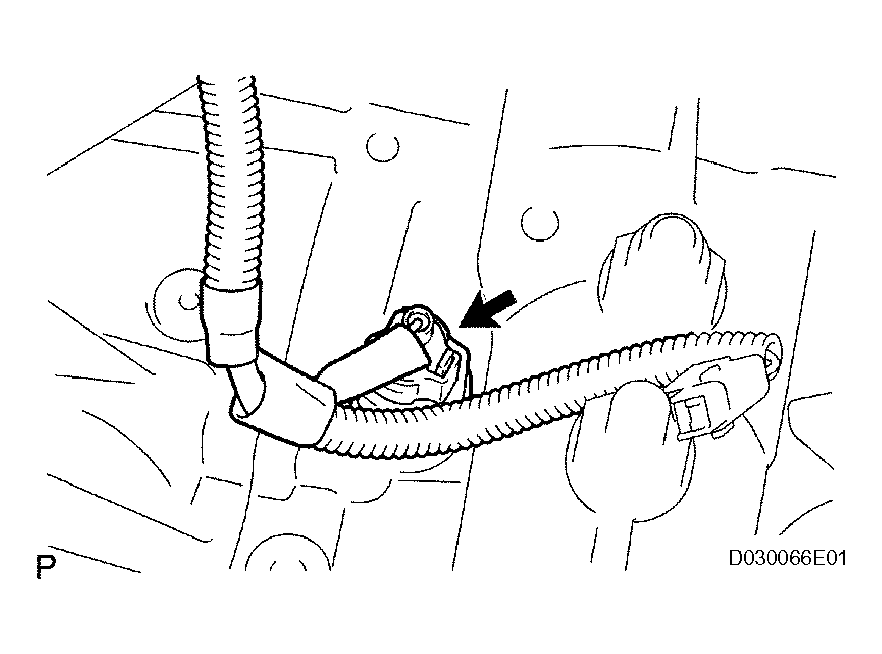

    Fig 2: Disconnecting Back-Up Light Switch
    G04222488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. DISCONNECT CLUTCH RELEASE CYLINDER ASSEMBLY
    1. Remove the 3 bolts and disconnect the release cylinder.

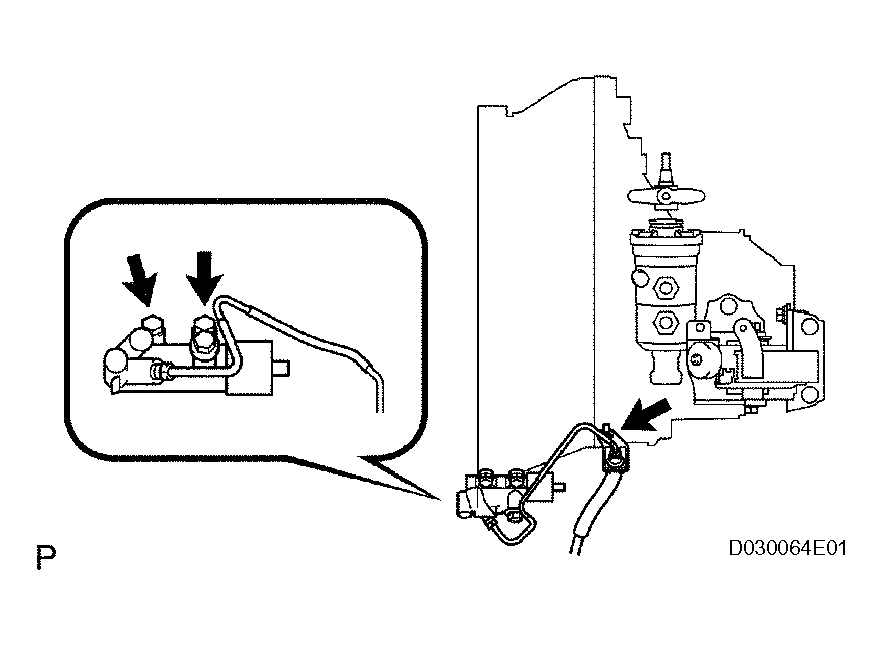

    Fig 3: Removing Bolts And Release Cylinder
    G04222489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the 2 clips and 2 washers, and disconnect the 2 cables from the transaxle.
    2. Remove the 2 clips, and disconnect the 2 cables from the bracket.

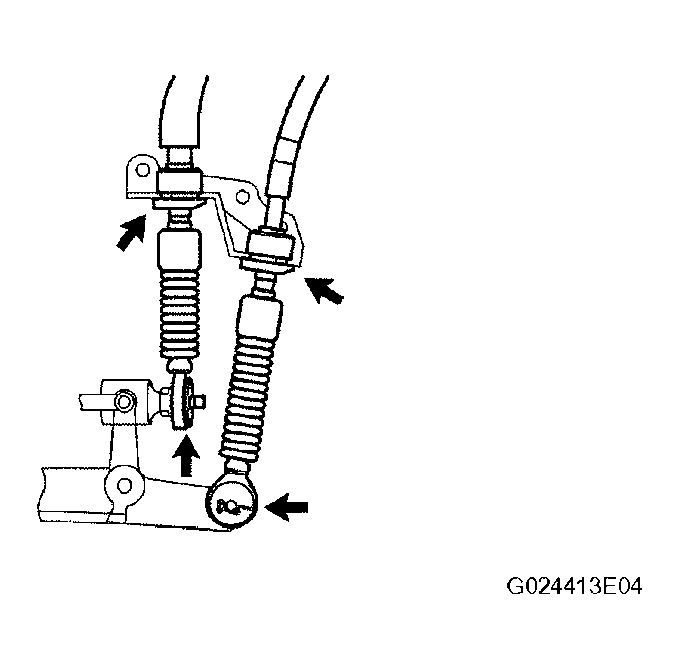

    Fig 4: Removing Transmission Control Cable Assembly
    G04222490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
    1. Remove the drive shaft (See REMOVAL ).
  24. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
    1. Remove the drive shaft (See REMOVAL ).
  25. DISCONNECT PRESSURE FEED TUBE ASSEMBLY (See  REMOVAL  )
  26. SUSPEND ENGINE ASSEMBLY
    1. Install the No. 1 and No. 2 engine hangers in the correct direction.
      Part Name Parts No.
      No. 1 engine hanger 12281-28010
      No. 2 engine hanger 12282-28010
      Bolt 91512-61020

      Torque: 38 N.m (387 kgf.cm, 28 ft. lbf)

    2. Attach the engine chain hoist to the engine hanger.
    CAUTION: Do not attempt to hang the engine by hooking the chain to any other part.

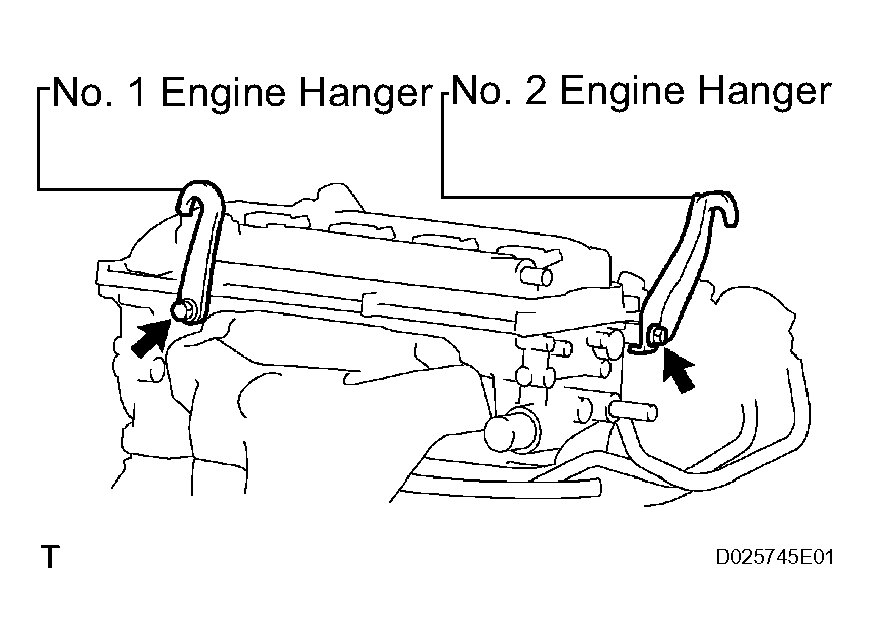

    Fig 5: Installing No 1 And No 2 Engine Hangers
    G04222491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (See  REMOVAL  )
  28. SUPPORT MANUAL TRANSAXLE ASSEMBLY
    1. Support the transaxle with a transmission jack.
  29. REMOVE ENGINE MOUNTING INSULATOR LH
    1. Remove the 5 bolts, nut and engine mounting insulator.

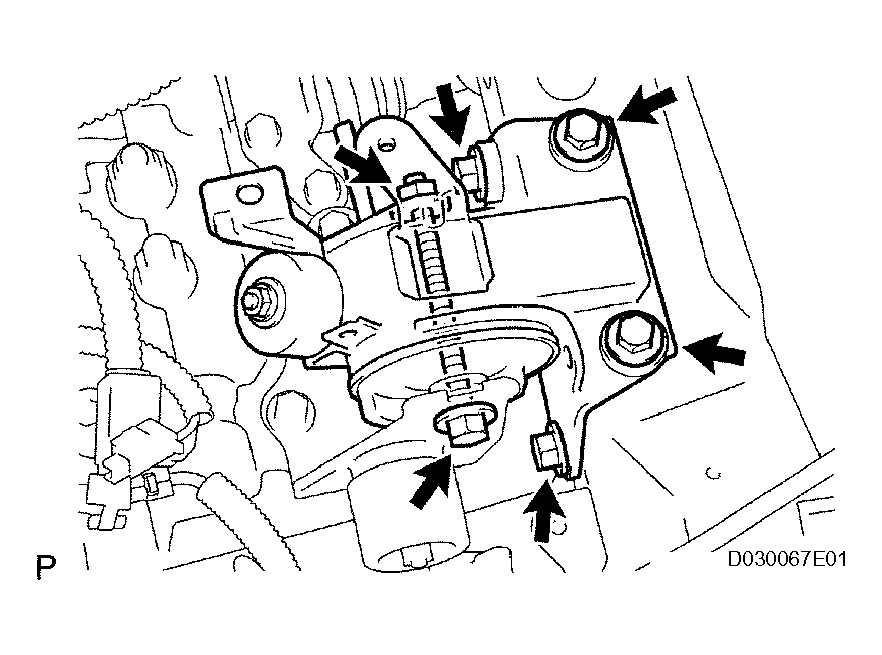

    Fig 6: Removing Bolts, Nut And Engine Mounting Insulator
    G04222492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE ENGINE MOUNTING BRACKET LH
    1. Remove the 3 bolts and engine mounting bracket.

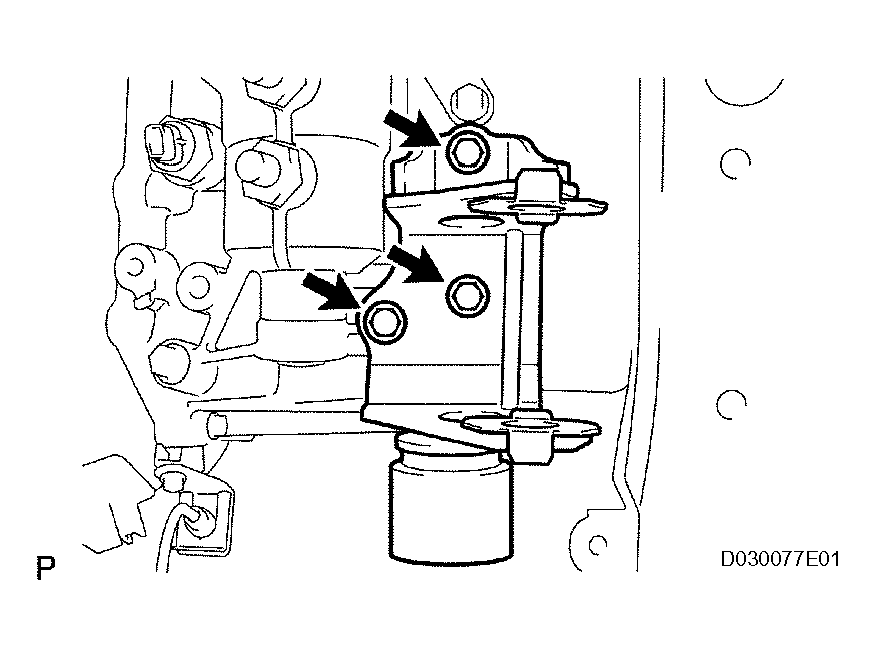

    Fig 7: Removing Bolts And Engine Mounting Bracket
    G04222493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE MANUAL TRANSAXLE ASSEMBLY
    1. Remove the 10 bolts.
    2. Separate and remove the transaxle from the engine.

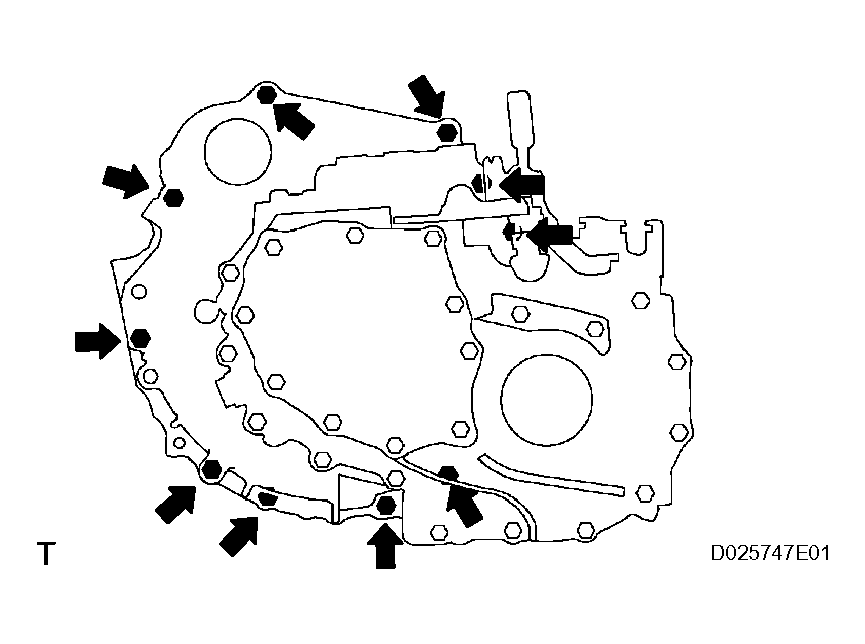

    Fig 8: Removing Manual Transaxle Assembly Bolts
    G04222494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE MANUAL TRANSMISSION CASE PROTECTOR
    1. Remove the 2 bolts and case protector.

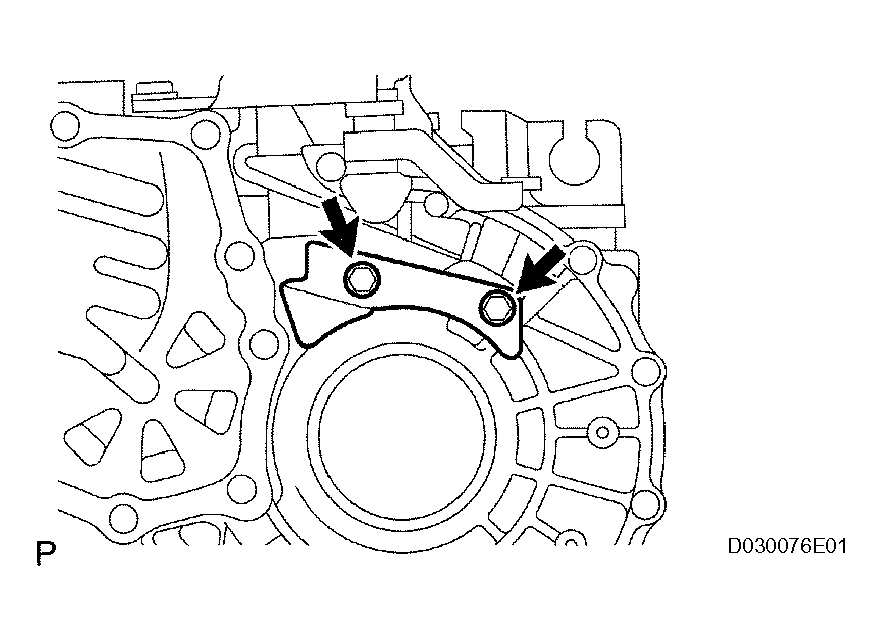

    Fig 9: Removing Bolts And Case Protector
    G04222495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. Remove the bolt, nut and front engine mounting insulator from the front engine mounting bracket.
    2. Remove the 2 bolts and front engine mounting bracket from the transaxle.

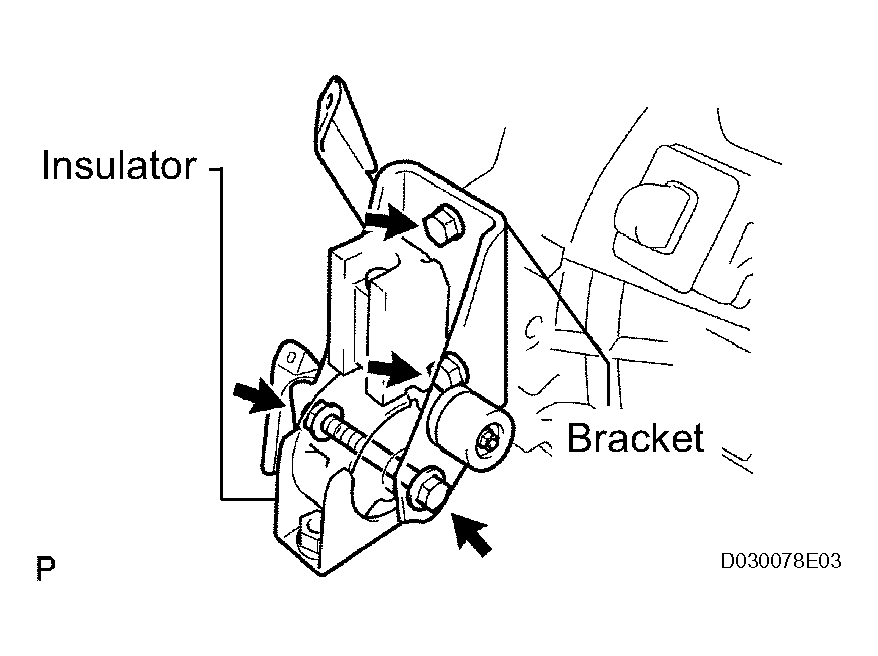

    Fig 10: Removing Bolts And Front Engine Mounting Bracket From Transaxle
    G04222496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE REAR ENGINE MOUNTING BRACKET
    1. Remove the bolt and rear engine mounting insulator from the rear engine mounting bracket.
    2. Remove the 3 bolts and rear engine mounting bracket from the transaxle.

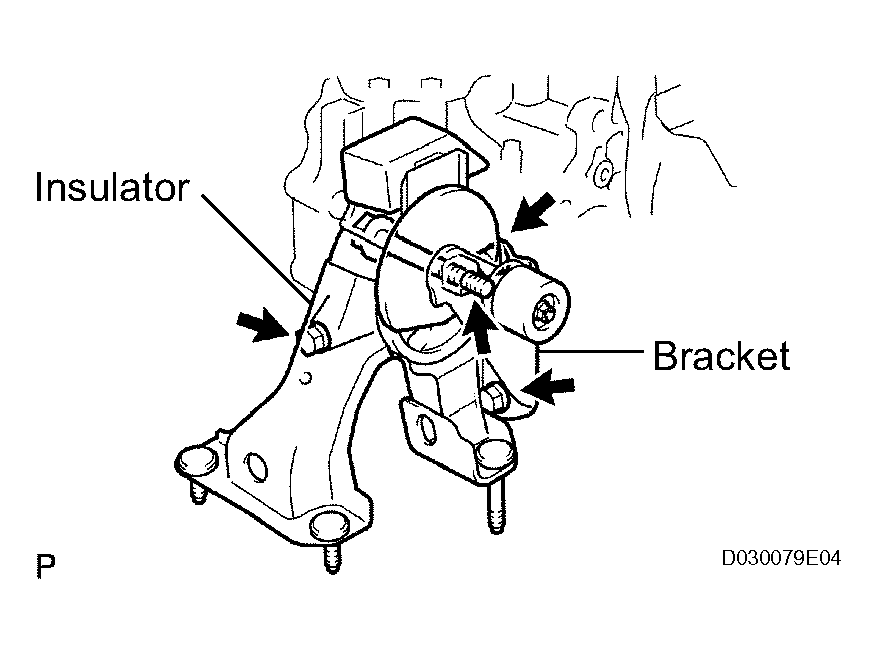

    Fig 11: Removing Bolts And Rear Engine Mounting Bracket From Transaxle
    G04222497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
