INSTALL FLOOR SHIFT SHIFT LEVER ASSEMBLY
1. Install the shift lever with the 4 bolts.
Torque: 12 N.m (122 kgf.cm, 9 ft. lbf)

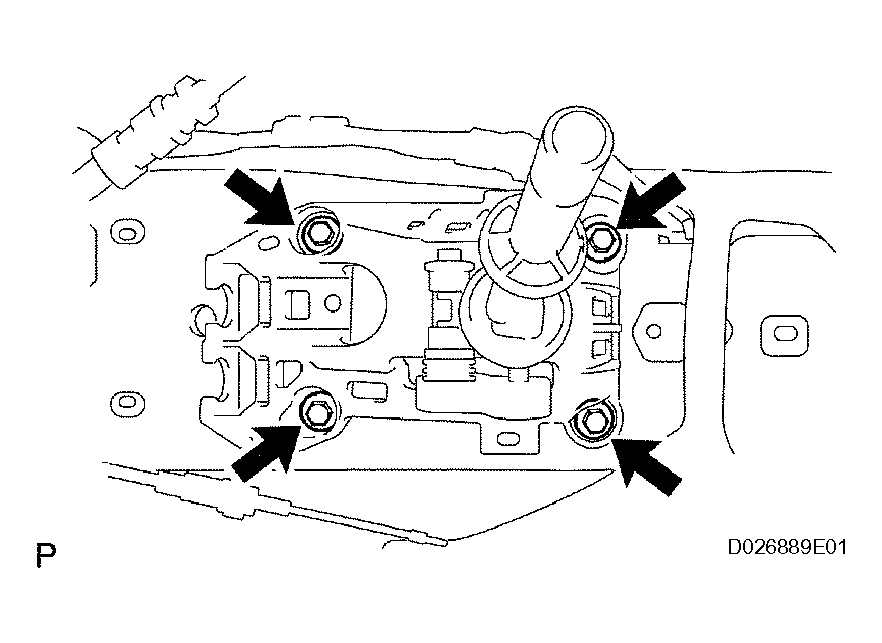

Fig 1: Installing Shift Lever With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the ends of the control cable and install the 2 clips to the shift lever.

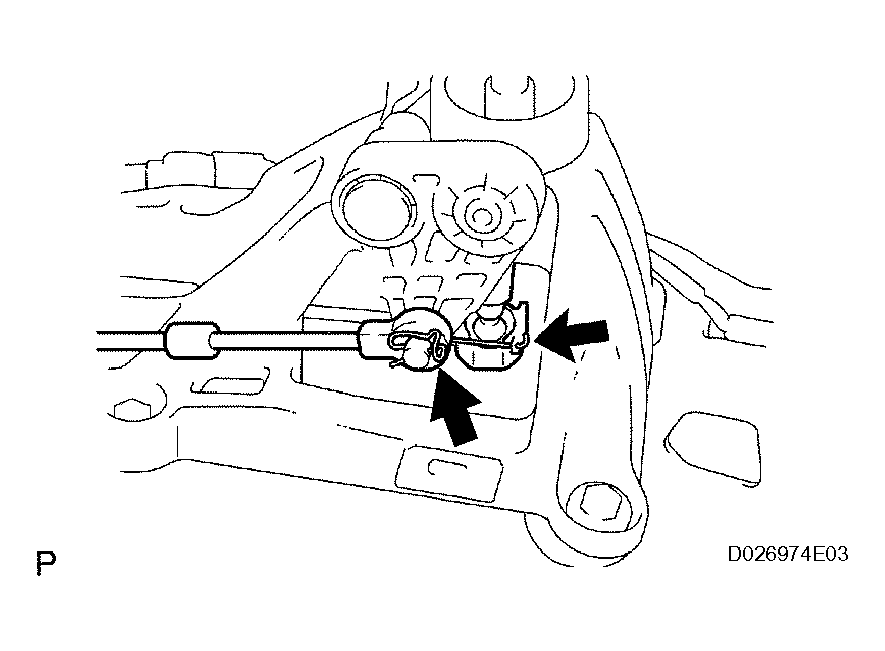

  Fig 2: Installing Clips To Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the lock nuts of the shift cable 270°counterclockwise, and hold them in that position.
3. Install the shift cable and select cable while holding the lock nuts.
4. Check that the cables are installed securely.

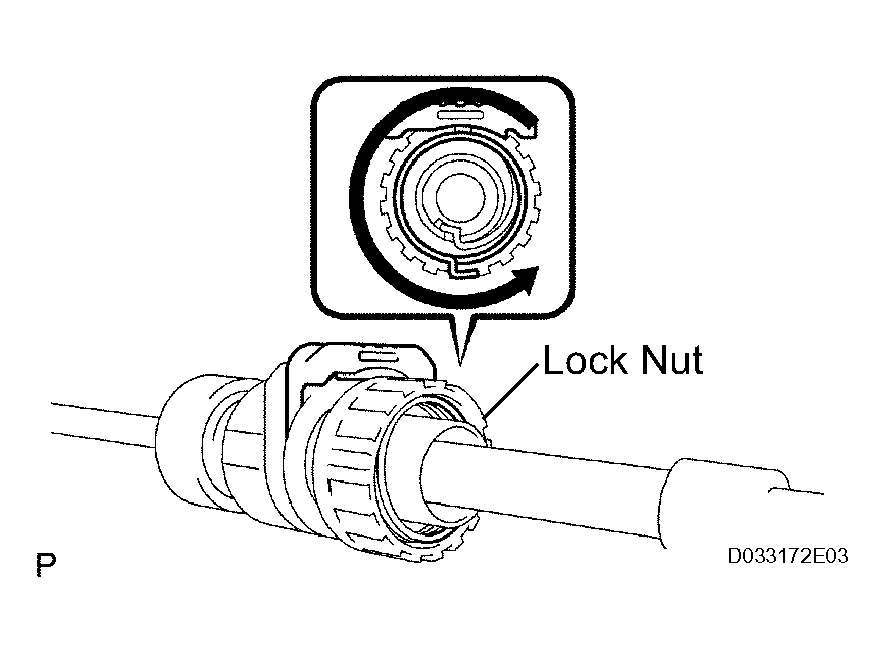

  Fig 3: Turning Lock Nuts Of Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Push in the cable locks of the shift cable and select cable.
INSTALL REAR CONSOLE BOX ASSEMBLY (See INSTALLATION )
INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY UPPER (See INSTALLATION )
INSTALL CONSOLE PANEL UPPER (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )

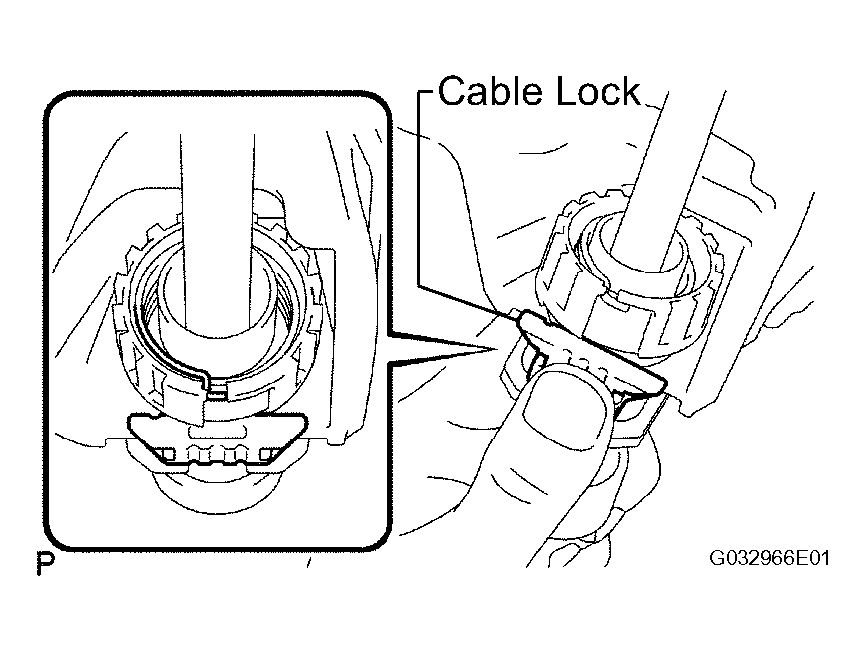

Fig 4: Pushing Cable Locks Of Shift Cable And Select Cable
