Differential Case: Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT DIFFERENTIAL PINION THRUST WASHER
1. Using a micrometer, measure the thickness of the thrust washer.
  Minimum thickness:

  0.9 mm (0.035 in.)

  If the thickness is less than the minimum, replace the thrust washer.

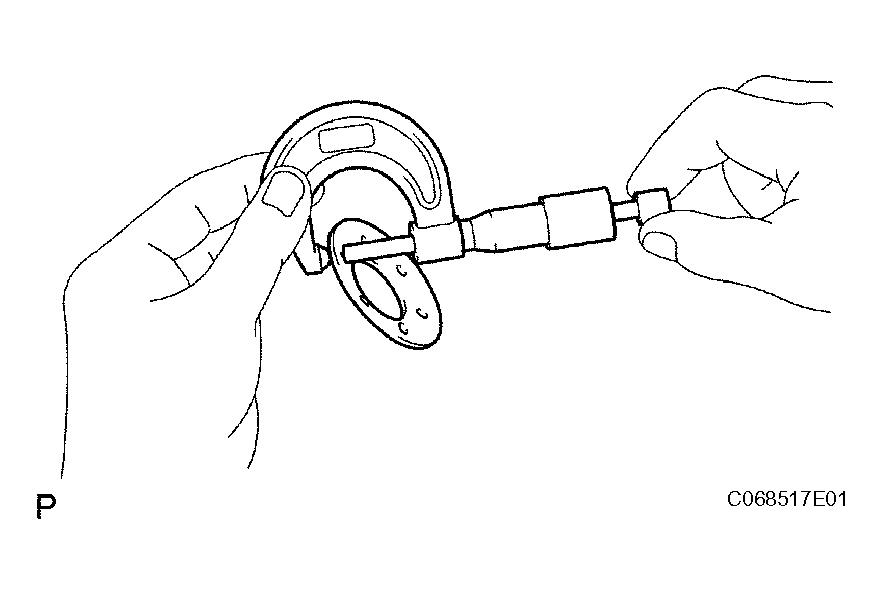

Fig 1: Measuring Thickness Of Thrust Washer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT NO. 1 DIFFERENTIAL PINION SHAFT
1. Using a micrometer, measure the outside diameter.
  Minimum diameter:

  17.975 mm (0.70768 in.)

  If the outside diameter is less than the minimum, replace the No. 1 differential pinion shaft.

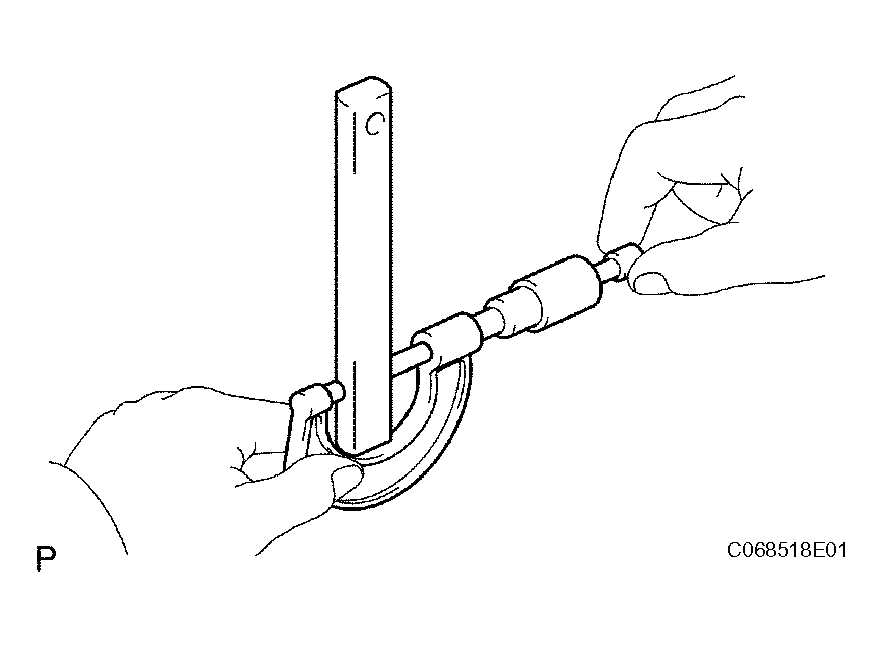

Fig 2: Measuring Outside Diameter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
