Front Power Window RH Circuit Check (Main Power Window and Door Lock/ Unlock Switch Operation)

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH.
    3. Turn ignition switch ON.
    4. Check voltage between front power window motor RH connector and ground.
    CONNECTOR TERMINAL VOLTAGE CHART

    Connector Terminals Condition Voltage (V) (Approx.)
    (+) (-)
    Front power window motor RH: D104 1 Ground UP 0
    DOWN Battery voltage
    2 UP Battery voltage
    DOWN 0

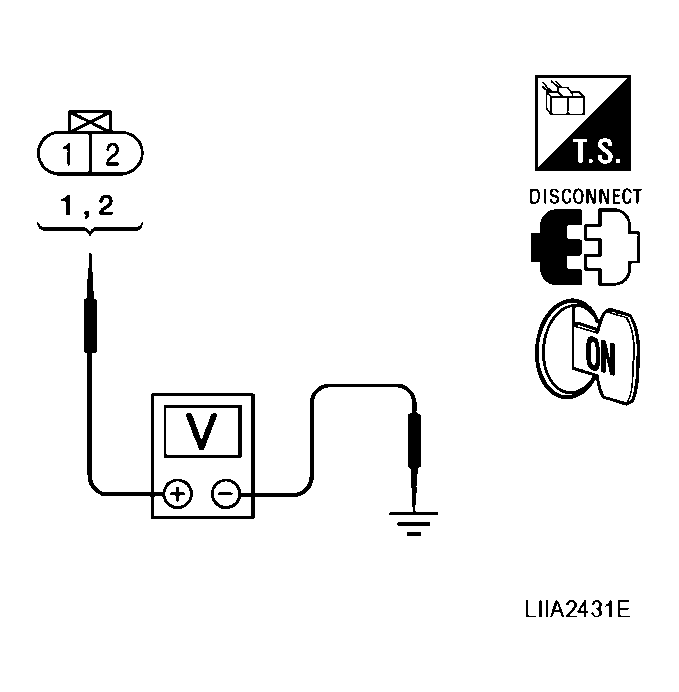

    Fig 1: Checking Voltage Between Front Power Window Motor RH Connector And Ground
    G04205664Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Replace front power window motor RH. Refer to "FRONT DOOR GLASS REGULATOR ".

    NG: GO TO 2.

  2. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
    3. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and front power window motor RH connector D104 terminals 1, 2.

      7-2: Continuity should exist  .

      6-1: Continuity should exist  .

    4. Check continuity between power window and door lock/unlock switch RH connector D105 terminals 6, 7 and ground.

      6 - Ground: Continuity should not exist  .

      7 - Ground: Continuity should not exist  .

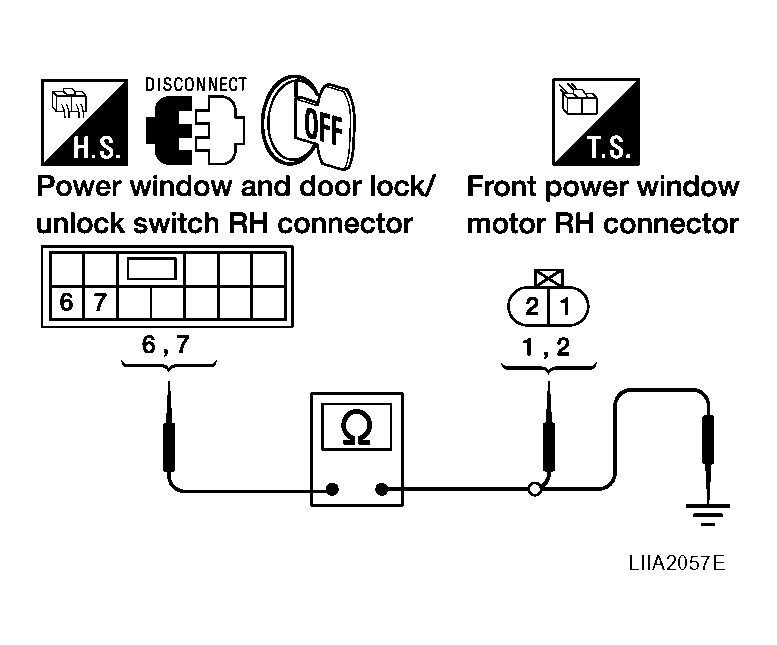

    Fig 2: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Connector D105 Terminals 6, 7 And Ground
    G04205665Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    Repair or replace harness.

  3. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH
    1. Turn ignition switch OFF.
    2. Check continuity between power window and door lock/unlock switch RH terminals.
    TERMINAL CONTINUITY CHART

    Power window and door lock/unlock switch Terminals Continuity
    6 11 Yes
    7 12 Yes
    Fig 3: Checking Continuity Between Power Window And Door Lock/Unlock Switch RH Terminals
    G04205666Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Replace power window and door lock/unlock switch RH. Refer to "FRONT DOOR ".

  4. CHECK GROUND SUPPLY CIRCUIT
    1. Disconnect main power window and door lock/unlock switch and power window and door lock/unlock switch RH.
    2. Check continuity between main power window and door lock/ unlock switch and power window and door lock/unlock switch RH.
      TERMINAL CONTINUITY CHART

      A B Continuity
      Connector Terminal Connector Terminal
      Main power window and door lock/ unlock switch: D7 2 Power window and door lock/ unlock switch RH: D105 11 Yes
      3 12 Yes

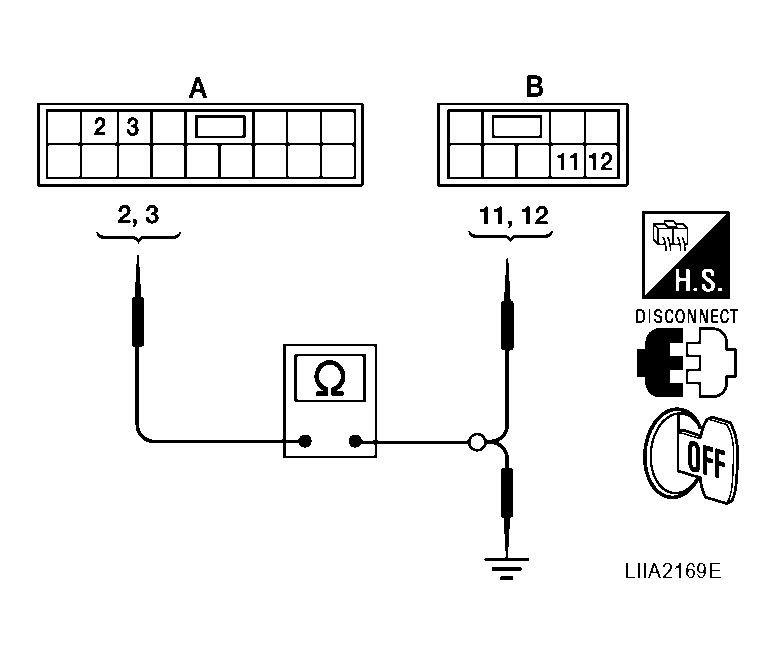

      Fig 4: Checking Continuity Between Main Power Window And Door Lock/ Unlock Switch And Power Window And Door Lock/Unlock Switch RH
      G04205667Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check continuity between main power window and door lock/unlock switch and ground.
    CONNECTOR TERMINAL CONTINUITY CHART

    A Ground Continuity
    Connector Terminal
    Main power window and door lock/unlock switch: D7 2 No
    3 No

    OK or NG

    OK: GO TO 5.

    NG: Repair or replace harness.

  5. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH SIGNAL
    1. Connect main power window and door lock/unlock switch.
    2. Turn ignition switch ON.
    3. Check voltage between main power window and door lock/ unlock switch and ground.
    CONNECTOR TERMINAL VOLTAGE CHART

    Connector Terminals Condition Voltage (V) (Approx.)
    (+) (-)
    Main power window and door lock/ unlock switch: D7 3 Ground UP Battery voltage
    DOWN 0
    2 UP 0
    DOWN Battery voltage

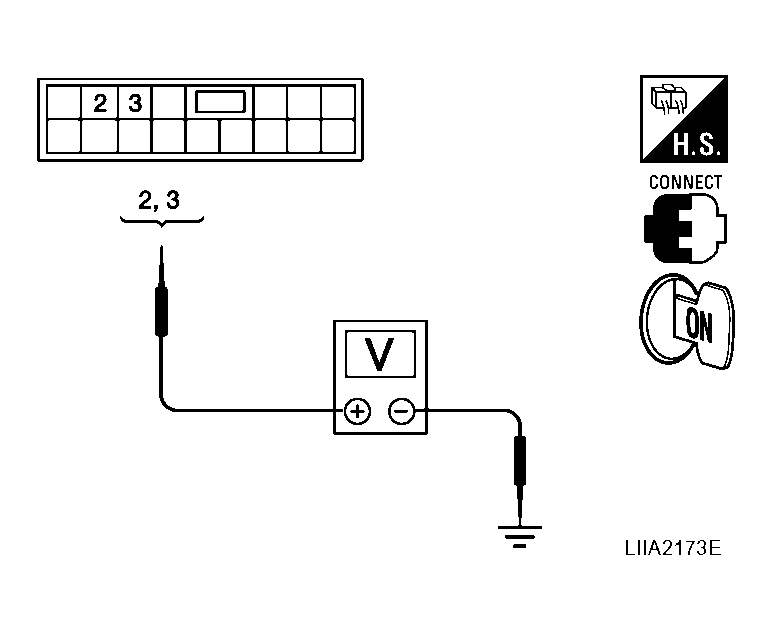

    Fig 5: Checking Voltage Between Main Power Window And Door Lock/ Unlock Switch And Ground
    G04205668Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Repair or replace harness.

    NG: Replace main power window and door lock/unlock switch. Refer to "FRONT DOOR ".
