Removal and Installation of Caliper Assembly and Disc Rotor: Installation

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Refill with new brake fluid. Refer to "FLUIDS AND LUBRICANTS ".
Never reuse drained brake fluid.

Install disc rotor.
CAUTION: Align matching marks made during removal when reusing disc rotor.
Install cylinder body to the vehicle, and tighten torque member bolts to specification. Refer to "COMPONENT ".
CAUTION: Before installing the cylinder body to the vehicle, wipe any oil off the knuckle spindle washers and cylinder body attachment surfaces.
Install brake hose to the cylinder body, and tighten union bolt to the specification. Refer to "COMPONENT ".
CAUTION:
- Do not reuse the copper washer for union bolts.
- Attach the brake hose to the protrusion on the cylinder body attachment part.

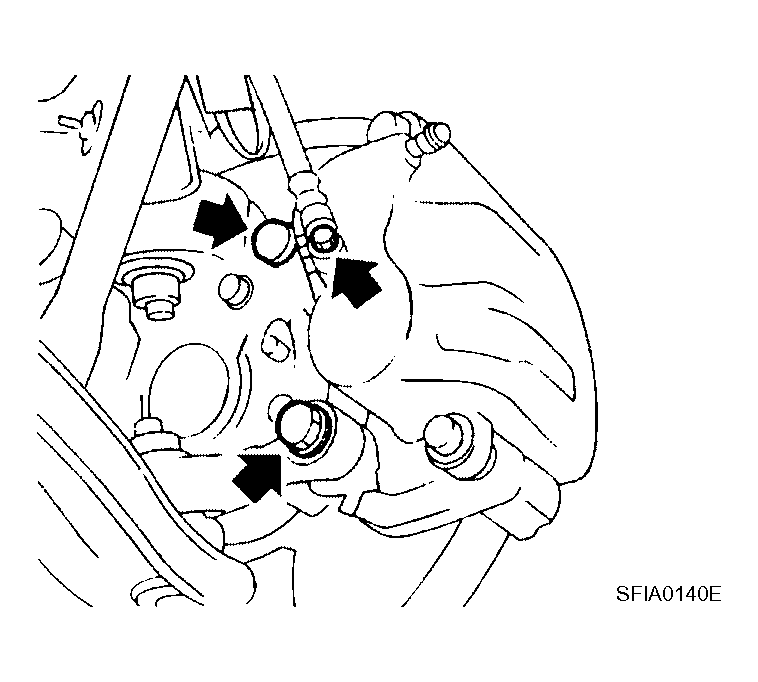

  Fig 1: Removing/Installing Union Bolt And Torque Member Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refill new brake fluid and bleed air. Refer to "BLEEDING BRAKE SYSTEM ".
Install wheel and tire. Refer to "ROTATION ".
CAUTION: Burnish the brake contact surfaces when refinishing or replacing brake rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage. Refer to "BRAKE BURNISHING ".
