Terminals and Reference Value for BCM
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
BCM TERMINALS AND REFERENCE VALUE
| Terminal | Wire Color | Item | Condition | Voltage (V) (Approx.) |
|---|---|---|---|---|
| 10 | GR | Hazard lamp flash input | Back door active | 0 |
| Other | 5 | |||

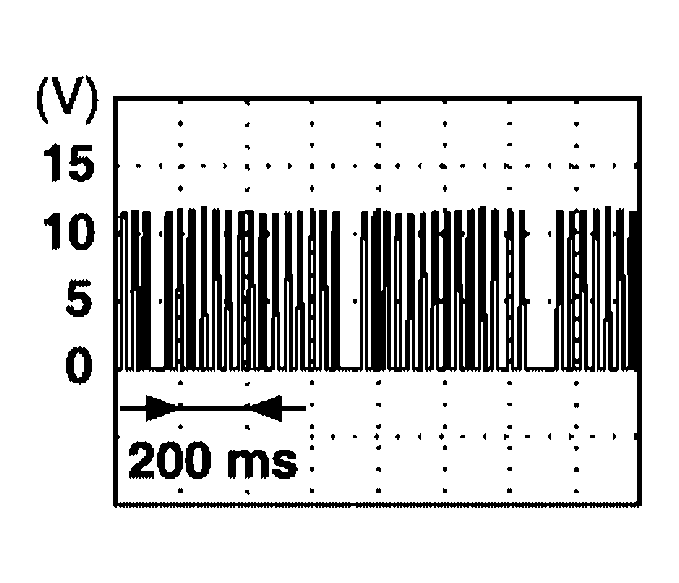

| 22 | Y/B | Bus | - | |
| 52 | B/W | Ground | - | 0 |
| 53 | W/L | Power window power source | - | Battery voltage |
| 54 | W/R | Power window (RAP) | - | Battery voltage |
| 55 | W/B | Battery power supply | - | Battery voltage |
| 58 | O | Back door switch | Open | 0 |
| Closed | 5 |
