Map Lamp
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

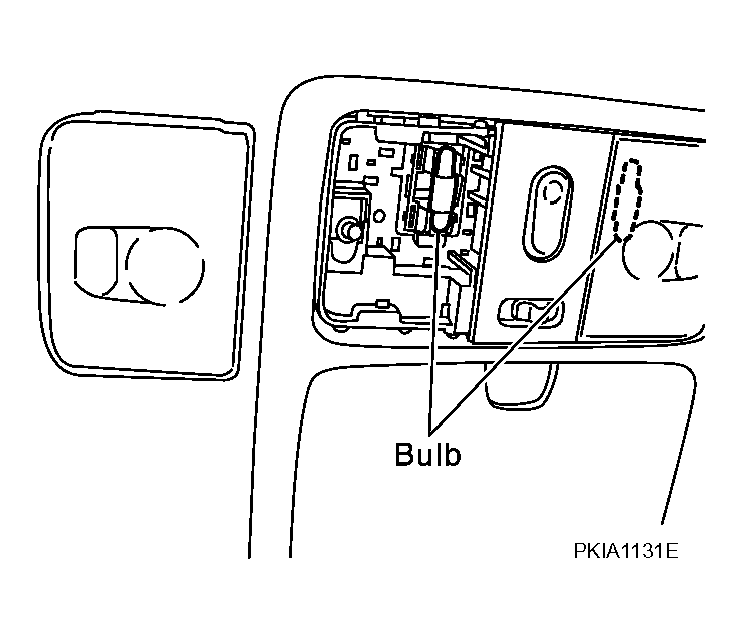

- Insert a small screwdriver into the lens hinge gap and remove lens.
- Remove bulb.
Map lamp: 12 V - 8 W
- Installation is the reverse order of removal.
Courtesy of NISSAN MOTOR CO., U.S.A.
