Removal and Installation of Optical Sensor: Removal

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver or similar tool and remove front defroster grill (LH). Refer to "(Aa) Defroster Grille (RH/LH) ".
  2. Disconnect optical sensor connector.
  3. Remove optical sensor.

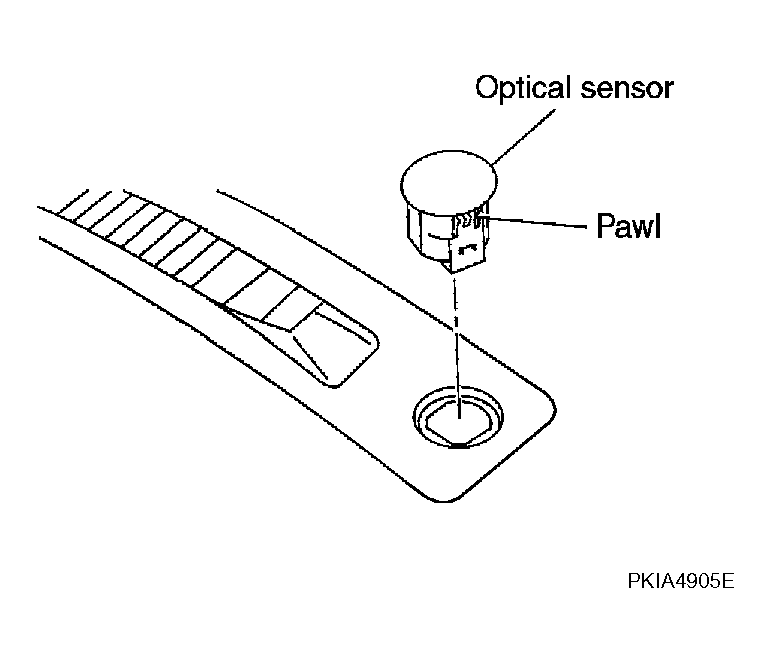

    Fig 1: Identifying Optical Sensor
    G04183203Courtesy of NISSAN MOTOR CO., U.S.A.
