V-6 Variable Displacement Compressor: Description: General

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

The variable compressor is basically a swash plate type that changes piston stroke in response to the required cooling capacity.

The tilt of the wobble (swash) plate allows the piston's stroke to change so that refrigerant discharge can be continuously changed from 13.5 to 146 cm³ (0.824 to 8.91 cu. in).

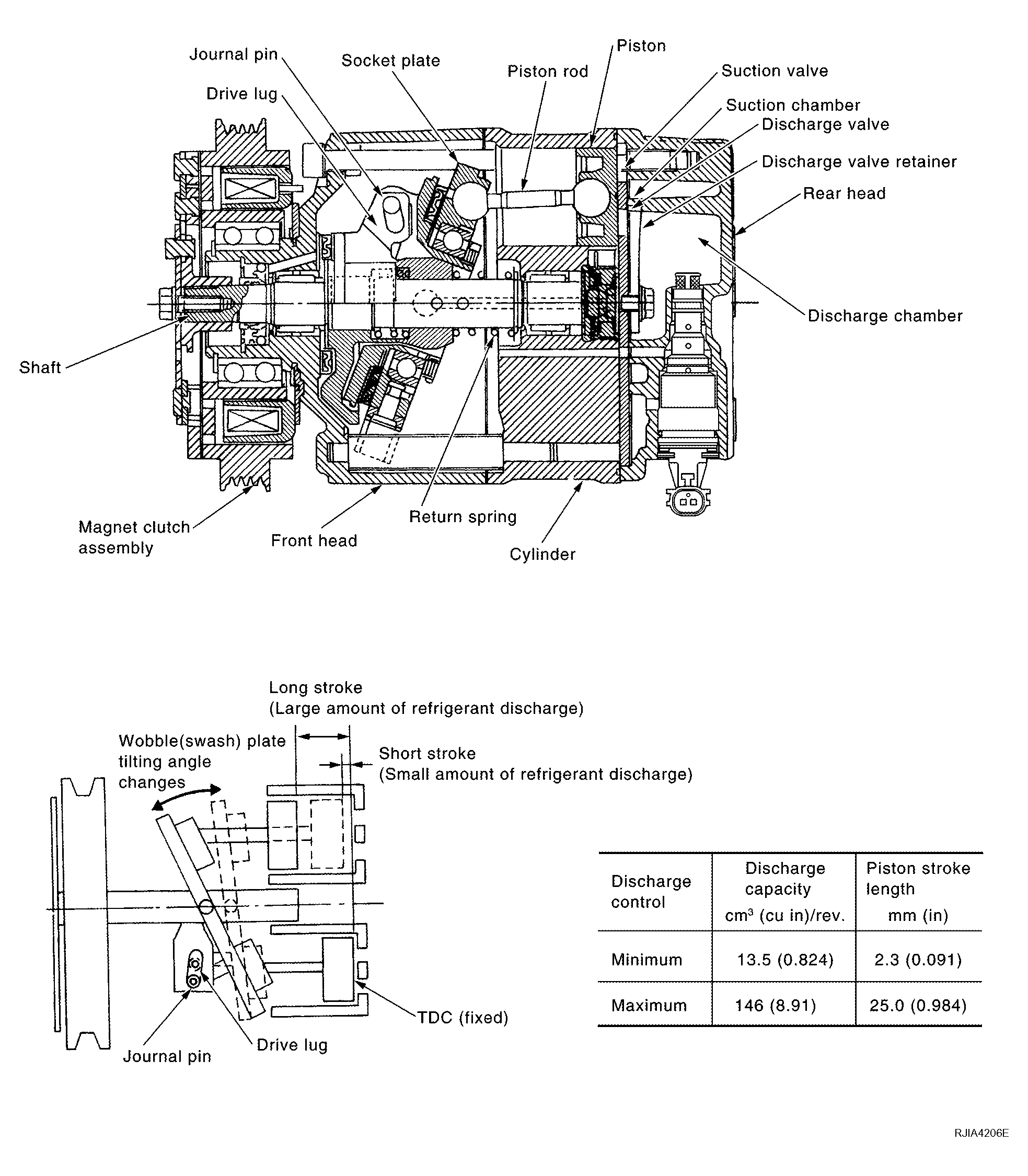

Fig 1: Identifying V-6 Variable Displacement Compressor

Courtesy of NISSAN MOTOR CO., U.S.A.
