BOSE System

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG references see POWER SUPPLY, GROUND AND CIRCUIT ELEMENTS

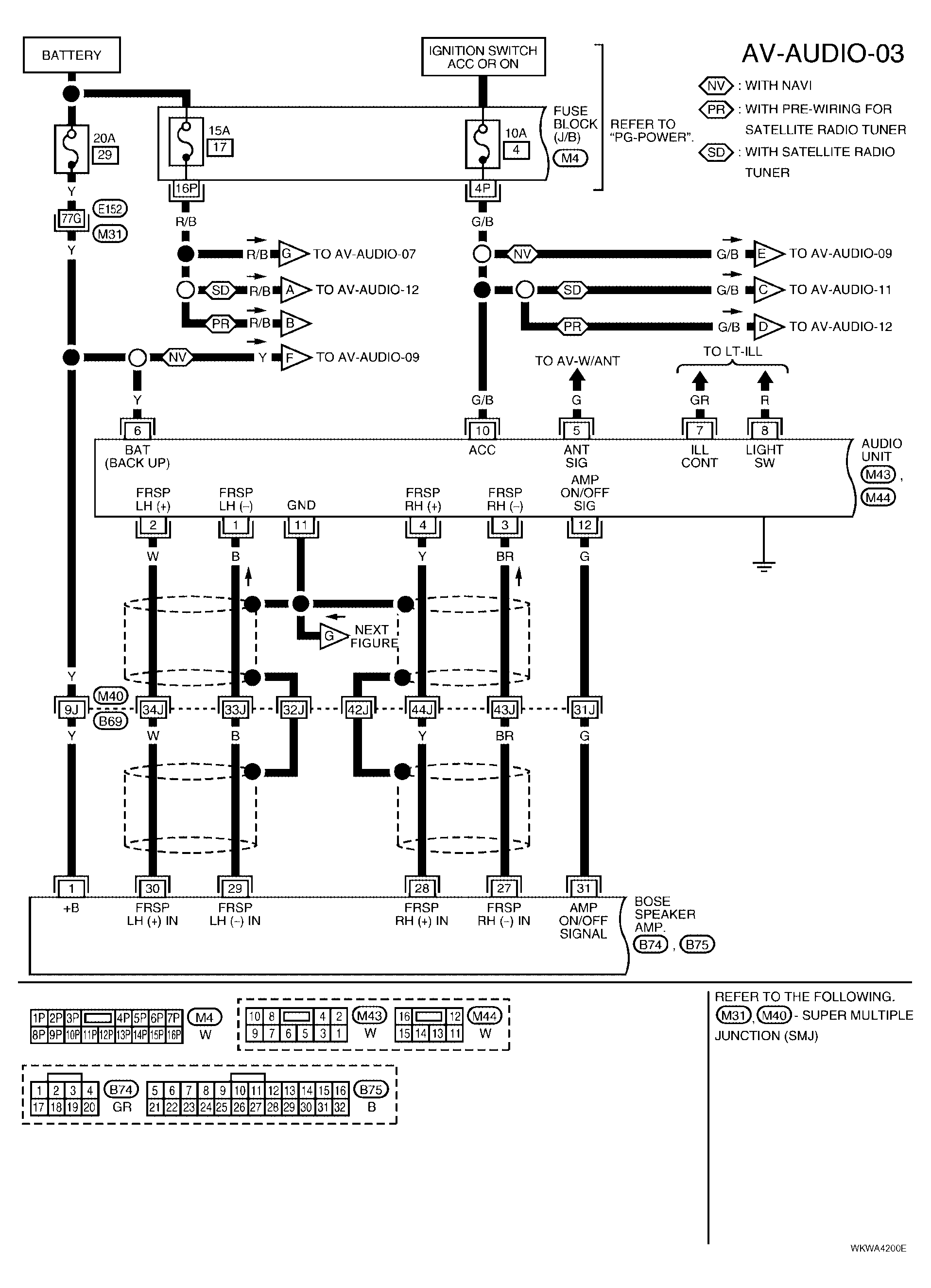

Fig 1: Wiring Diagram - AV-Audio-03 - (3 Of 12)

G04177602

Courtesy of NISSAN MOTOR CO., U.S.A.

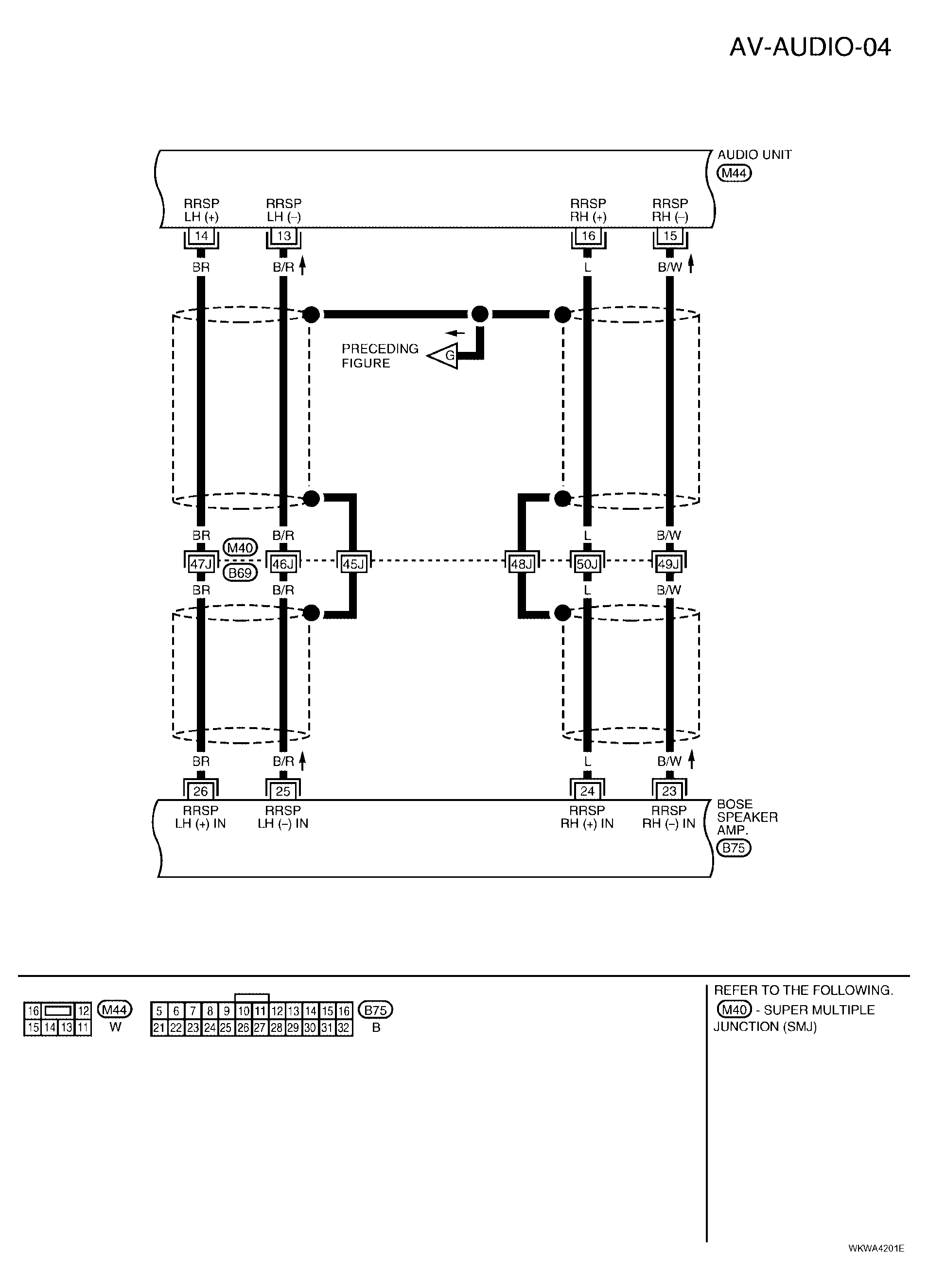

Fig 2: Wiring Diagram - AV-Audio-04 - (4 Of 12)

G04177603

Courtesy of NISSAN MOTOR CO., U.S.A.

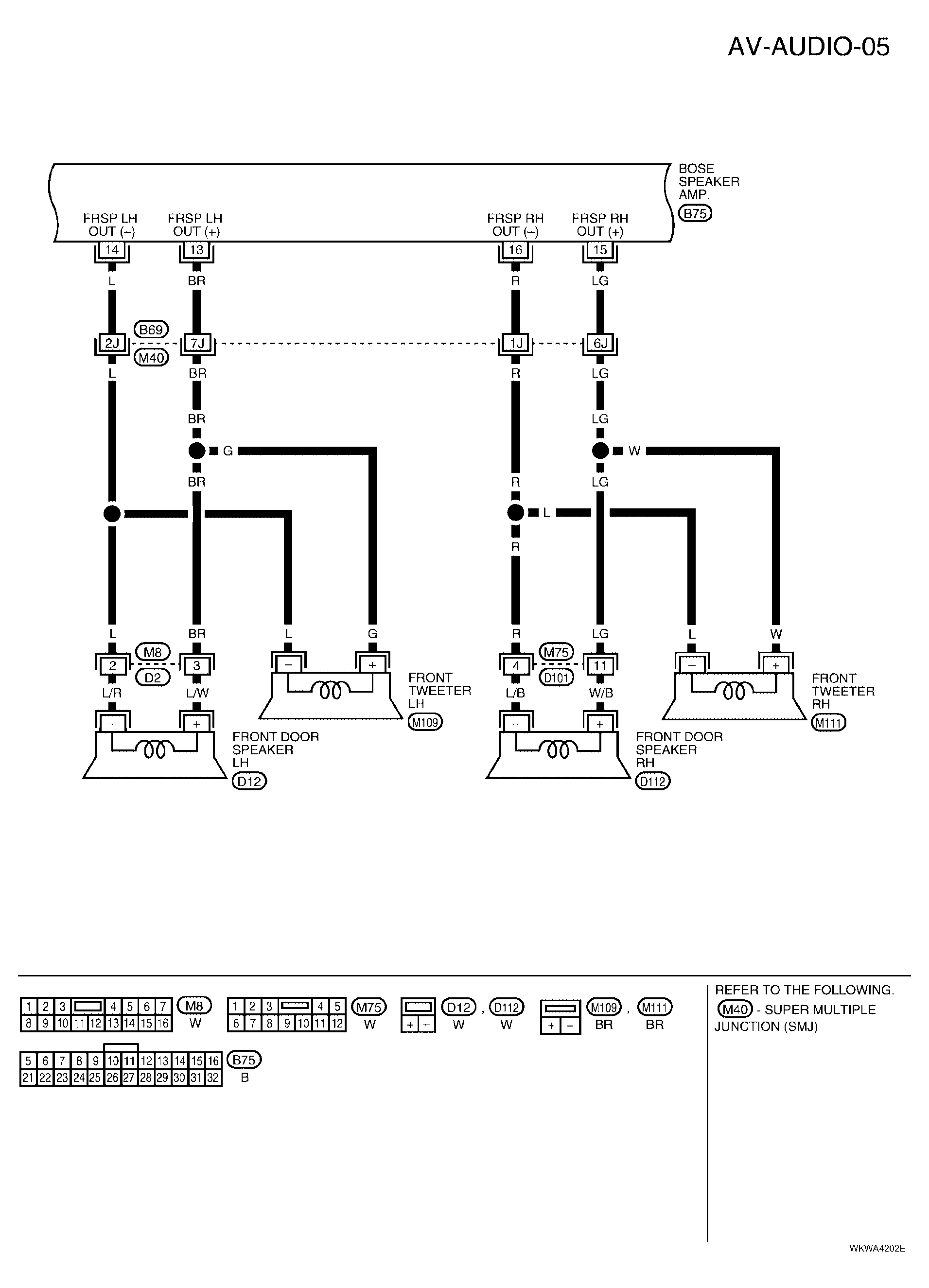

Fig 3: Wiring Diagram - AV-Audio-05 - (5 Of 12)

G04177604

Courtesy of NISSAN MOTOR CO., U.S.A.

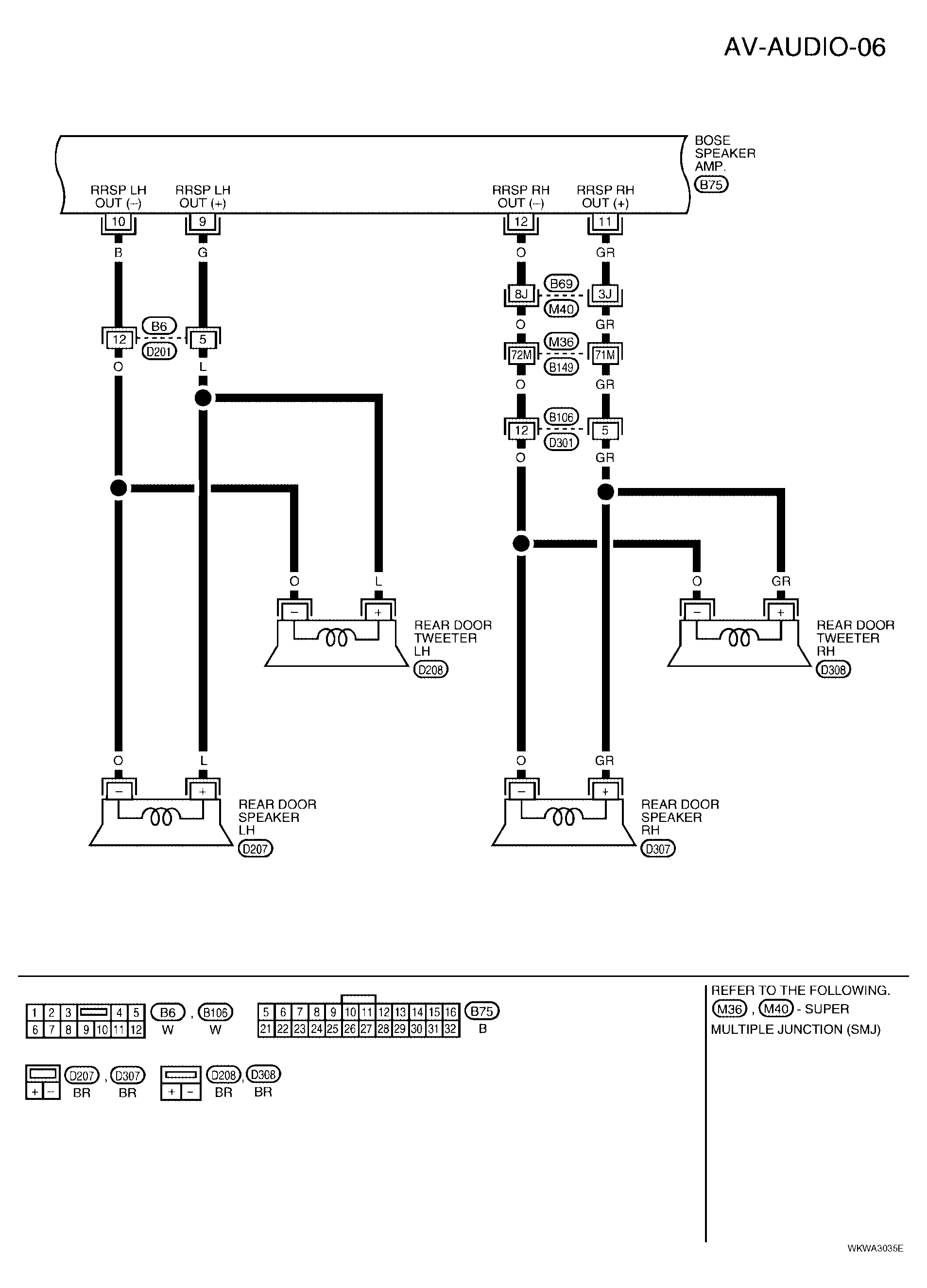

Fig 4: Wiring Diagram - AV-Audio-06 - (6 Of 12)

G04177605

Courtesy of NISSAN MOTOR CO., U.S.A.

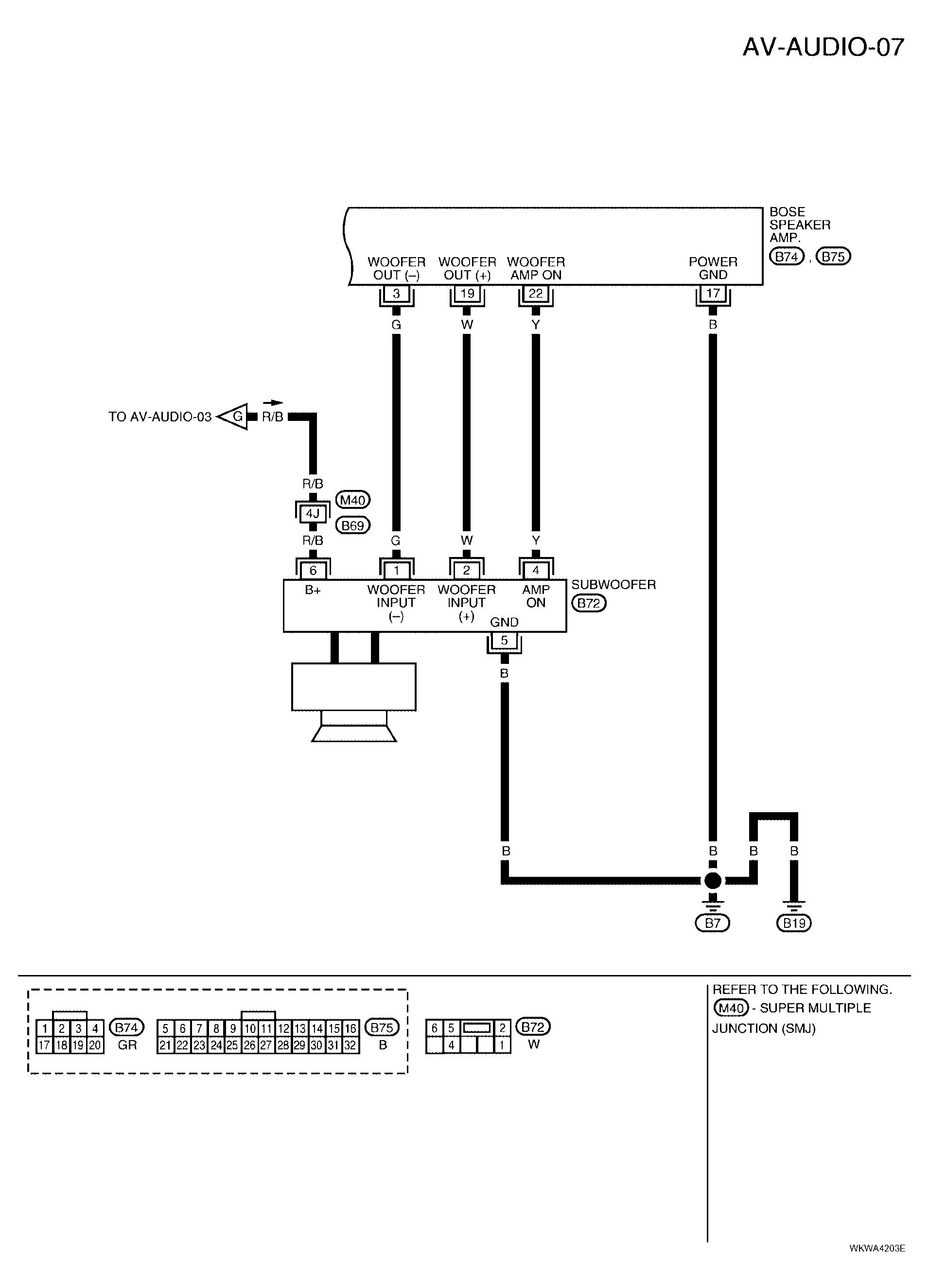

Fig 5: Wiring Diagram - AV-Audio-07 - (7 Of 12)

G04177606

Courtesy of NISSAN MOTOR CO., U.S.A.

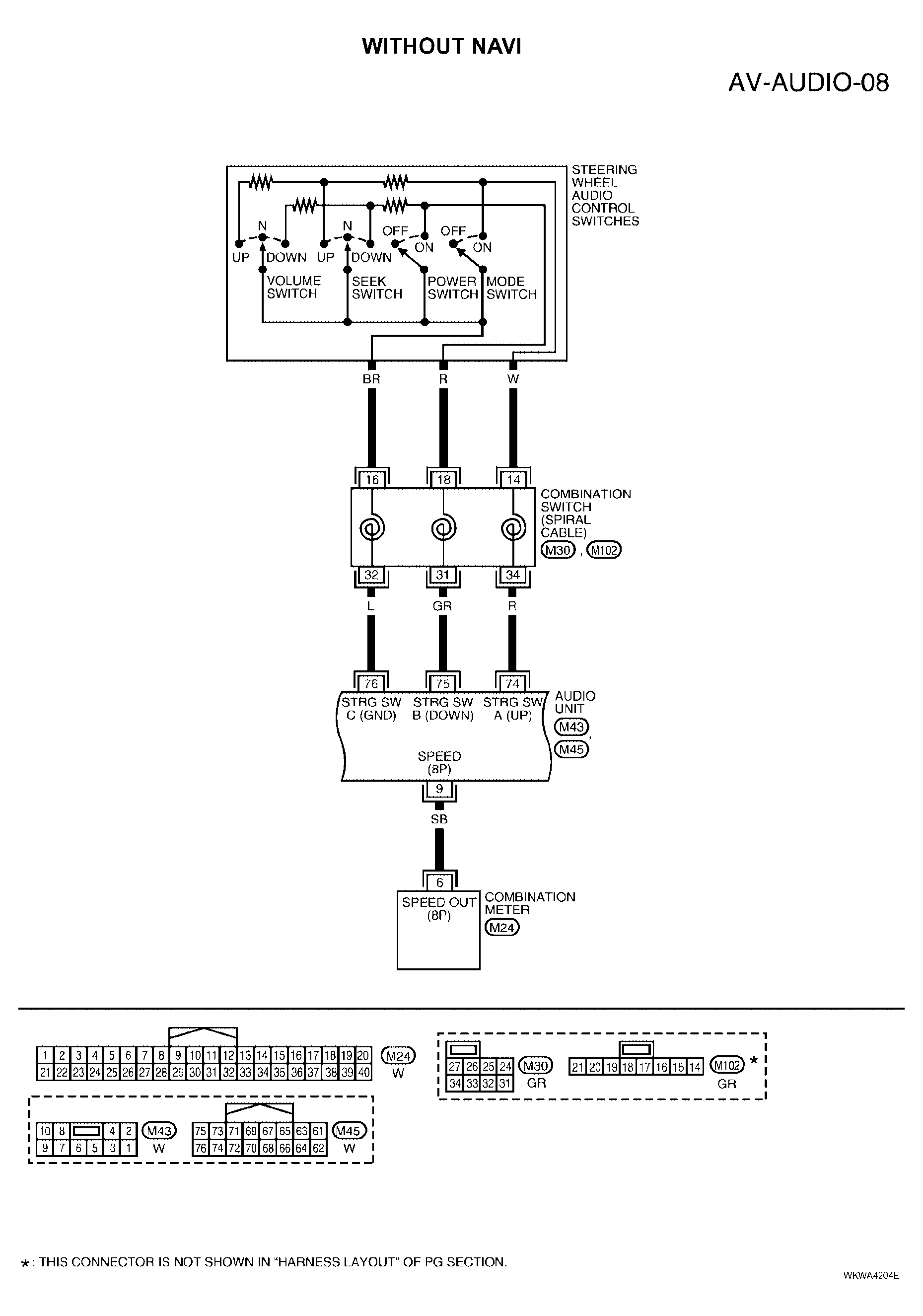

Fig 6: Wiring Diagram - AV-Audio-08 - (8 Of 12)

G04177607

Courtesy of NISSAN MOTOR CO., U.S.A.

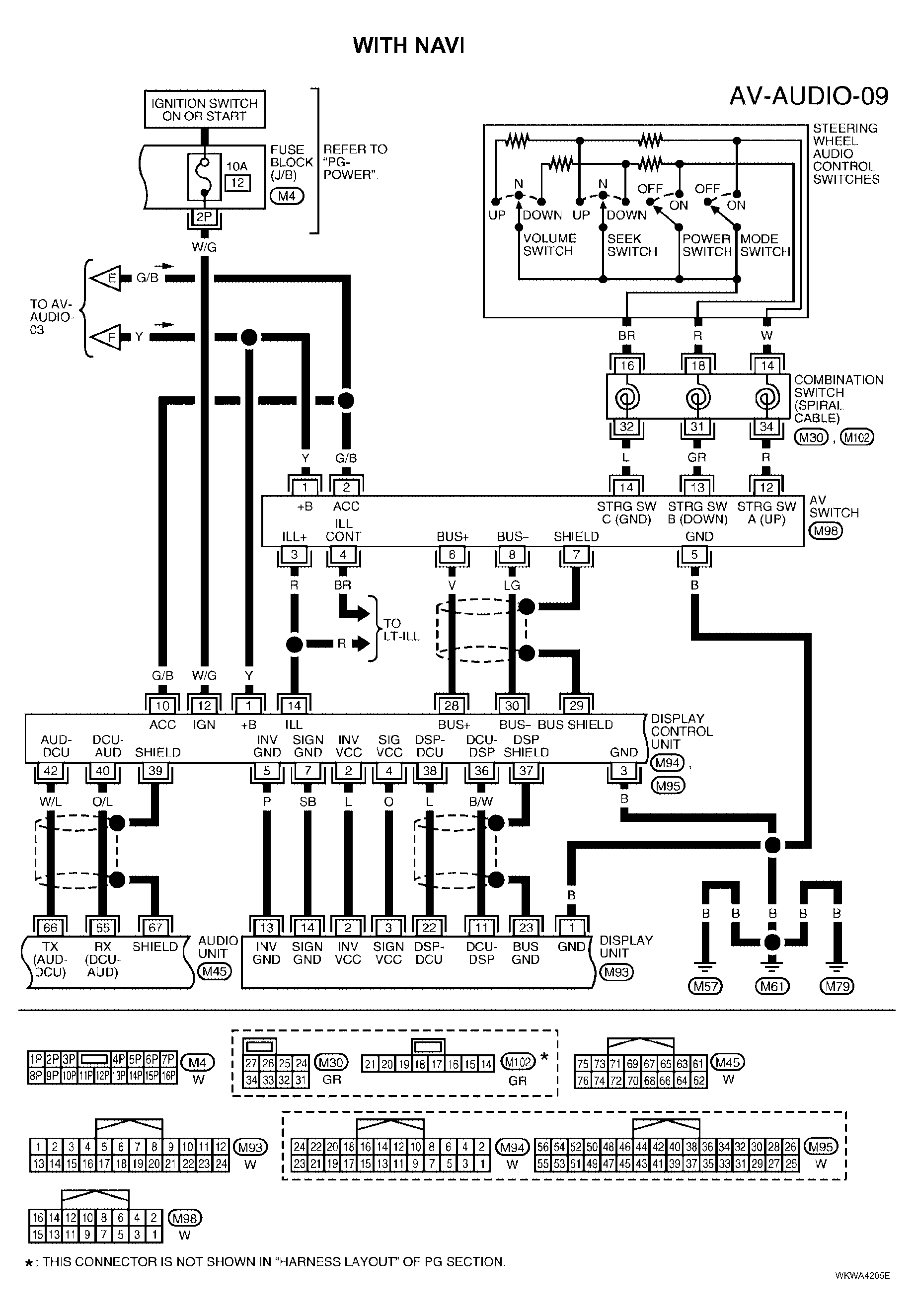

Fig 7: Wiring Diagram - AV-Audio-09 - (9 Of 12)

G04177608

Courtesy of NISSAN MOTOR CO., U.S.A.

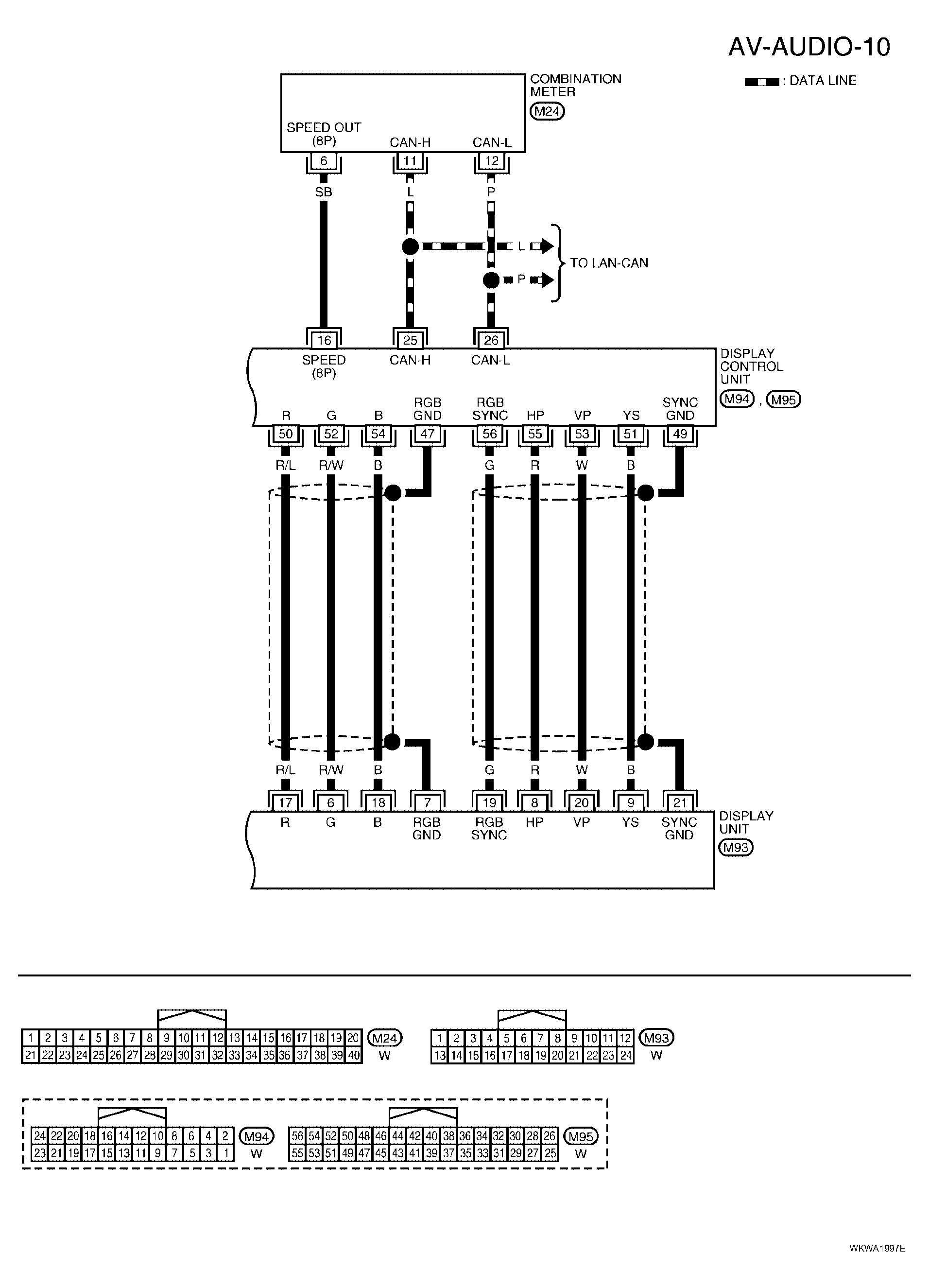

Fig 8: Wiring Diagram - AV-Audio-10 - (10 Of 12)

G04177609

Courtesy of NISSAN MOTOR CO., U.S.A.

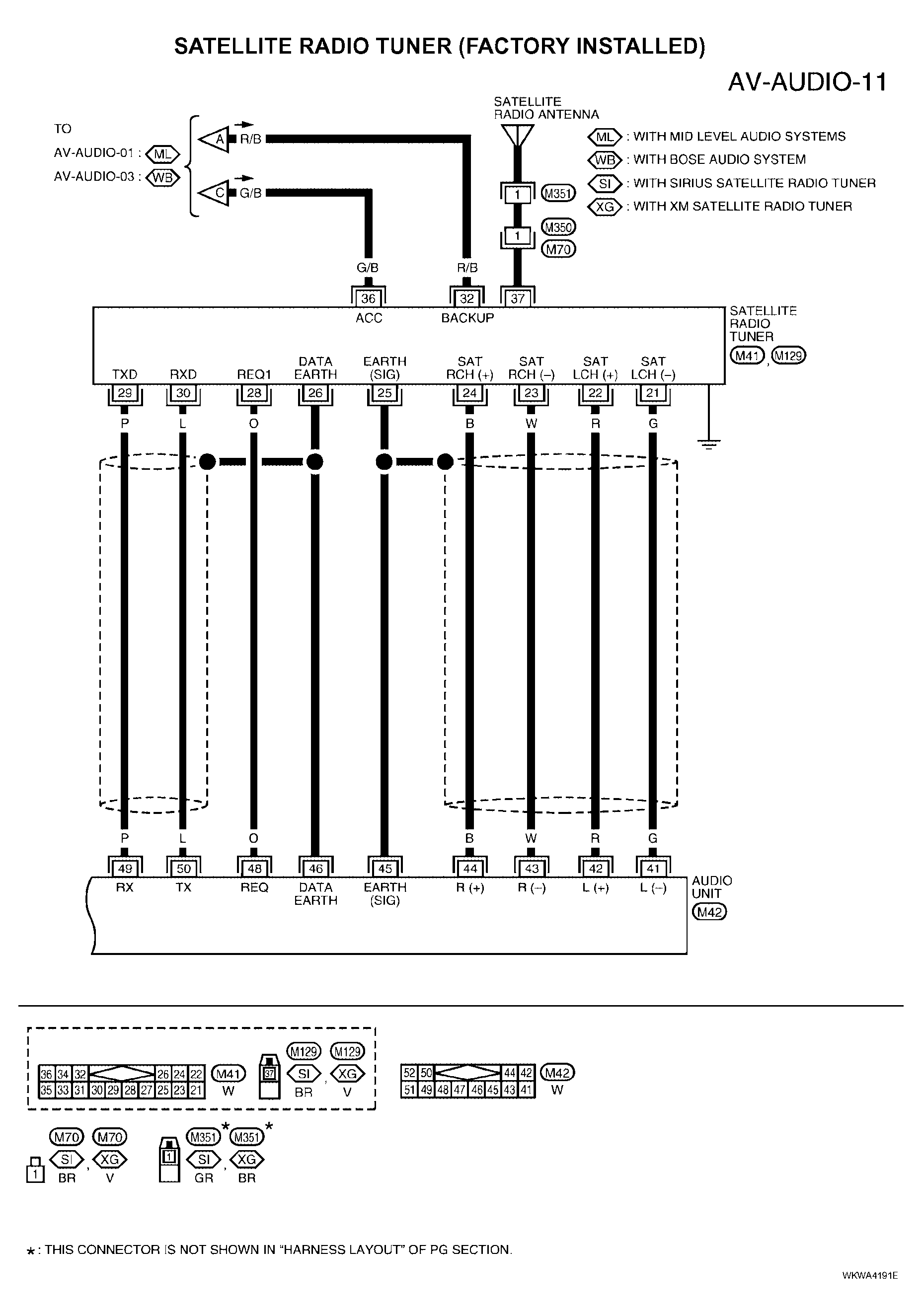

Fig 9: Wiring Diagram - AV-Audio-11 - (11 Of 12)

G04177610

Courtesy of NISSAN MOTOR CO., U.S.A.

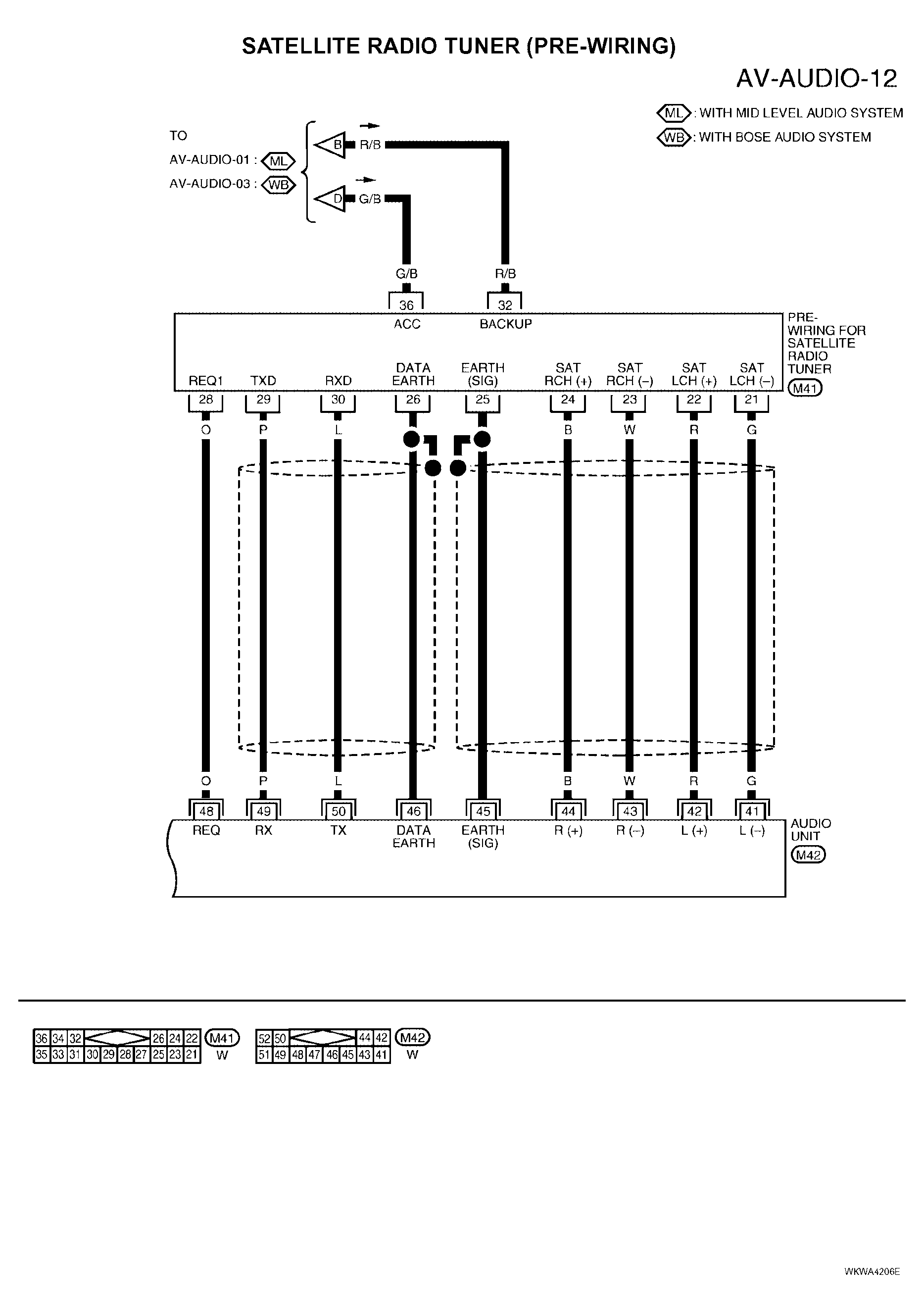

Fig 10: Wiring Diagram - AV-Audio-12 - (12 Of 12)

G04177611

Courtesy of NISSAN MOTOR CO., U.S.A.
