Element Check

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Attach probe circuit tester (ohm setting) to antenna terminal on each side.

Fig 1: Attaching Probe Circuit Tester (Ohm Setting) To Antenna Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
- When measuring continuity, wrap tin foil around the top of probe. Then, press the foil against the wire with your finger.

  Fig 2: Pressing Test Probe To Filament Grid
  Courtesy of NISSAN MOTOR CO., U.S.A.
If an element is broken, no continuity will exist.

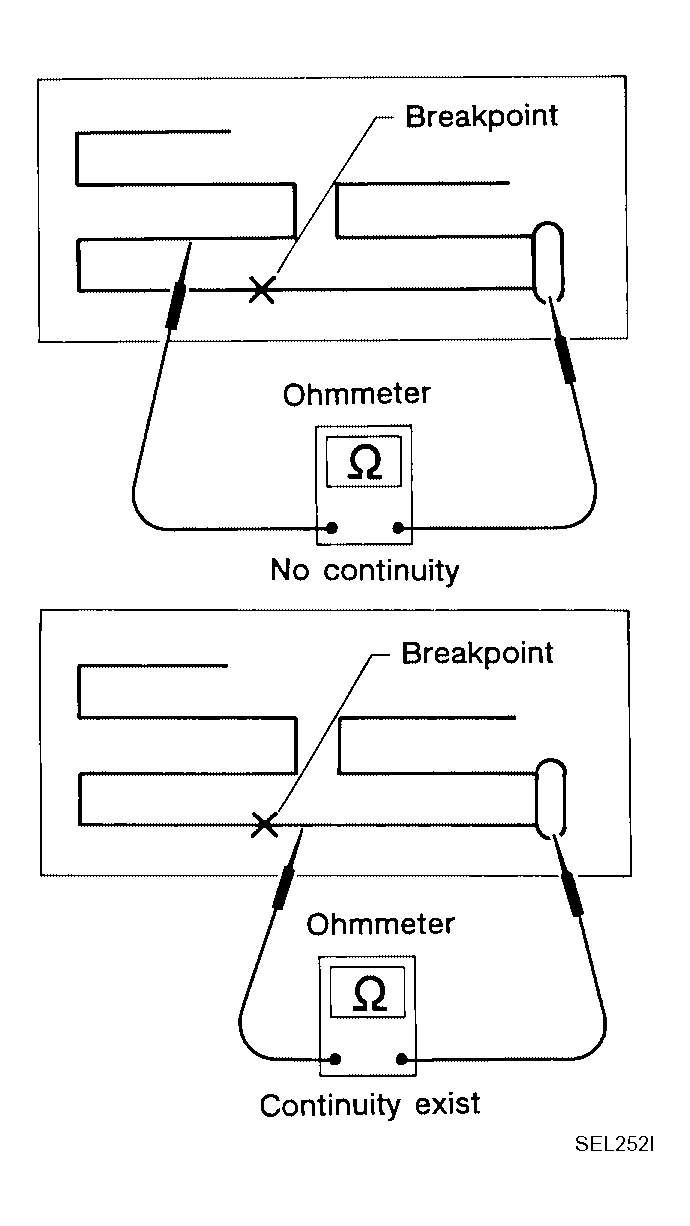

Fig 3: Identifying Break Points
Courtesy of NISSAN MOTOR CO., U.S.A.
To locate a break, move probe along element. Tester indication will change abruptly when probe passes the broken point.

Fig 4: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
