Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear bearing using Tools.

    Tool number A: KV38100500 ( - )

    B: ST30901000 (J-26010-01)

    Fig 1: Identifying Rear Bearing
    G04174990Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install the front bearing using Tools.

    Tool number A: KV38100500 ( - )

    B: ST30901000 (J-26010-01)

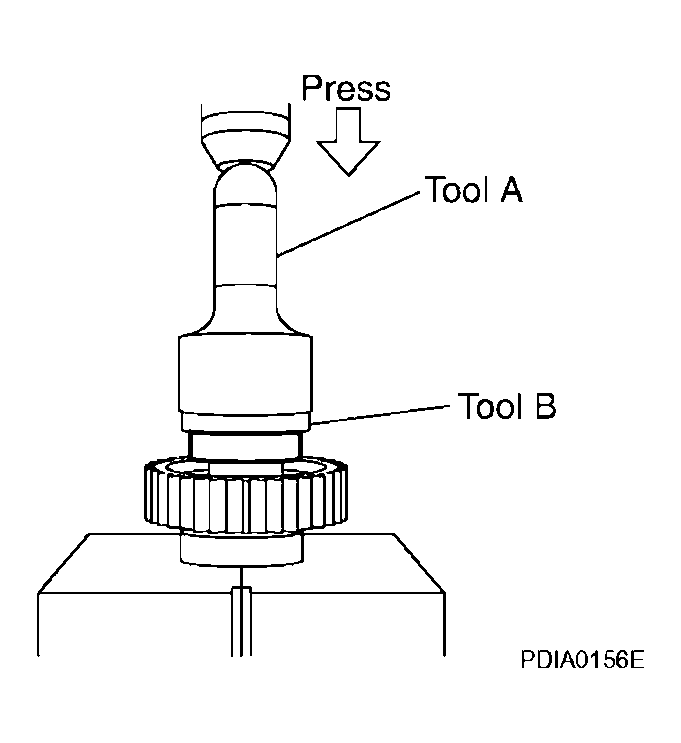

    Fig 2: Identifying Front Bearing
    G04174991Courtesy of NISSAN MOTOR CO., U.S.A.
