Component Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
  2. Disconnect neutral-4LO switch harness connector.
  3. Remove neutral-4LO switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".
  4. Push and release neutral-4LO switch and check continuity between neutral-4LO switch terminals 12 and 13.
    NEUTRAL-4LO SWITCH TERMINALS 12 AND 13

    Terminal Condition Continuity
    12 - 13 Push neutral-4LO switch Yes
    Release neutral-4LO switch No

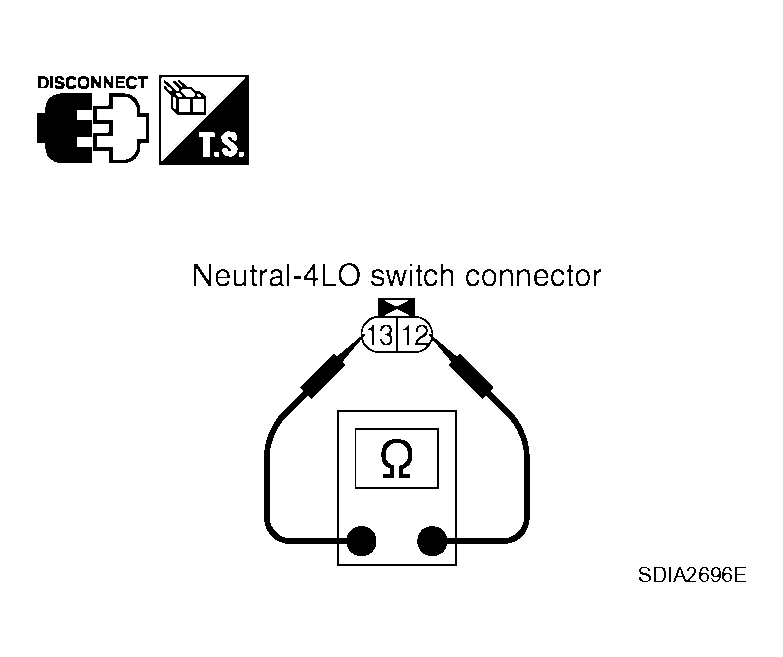

    Fig 1: Checking Continuity Between Neutral-4LO Switch Terminals 12 And 13
    G04174458Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If NG, replace the neutral-4LO switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".
