Oil Channel

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

2WD models

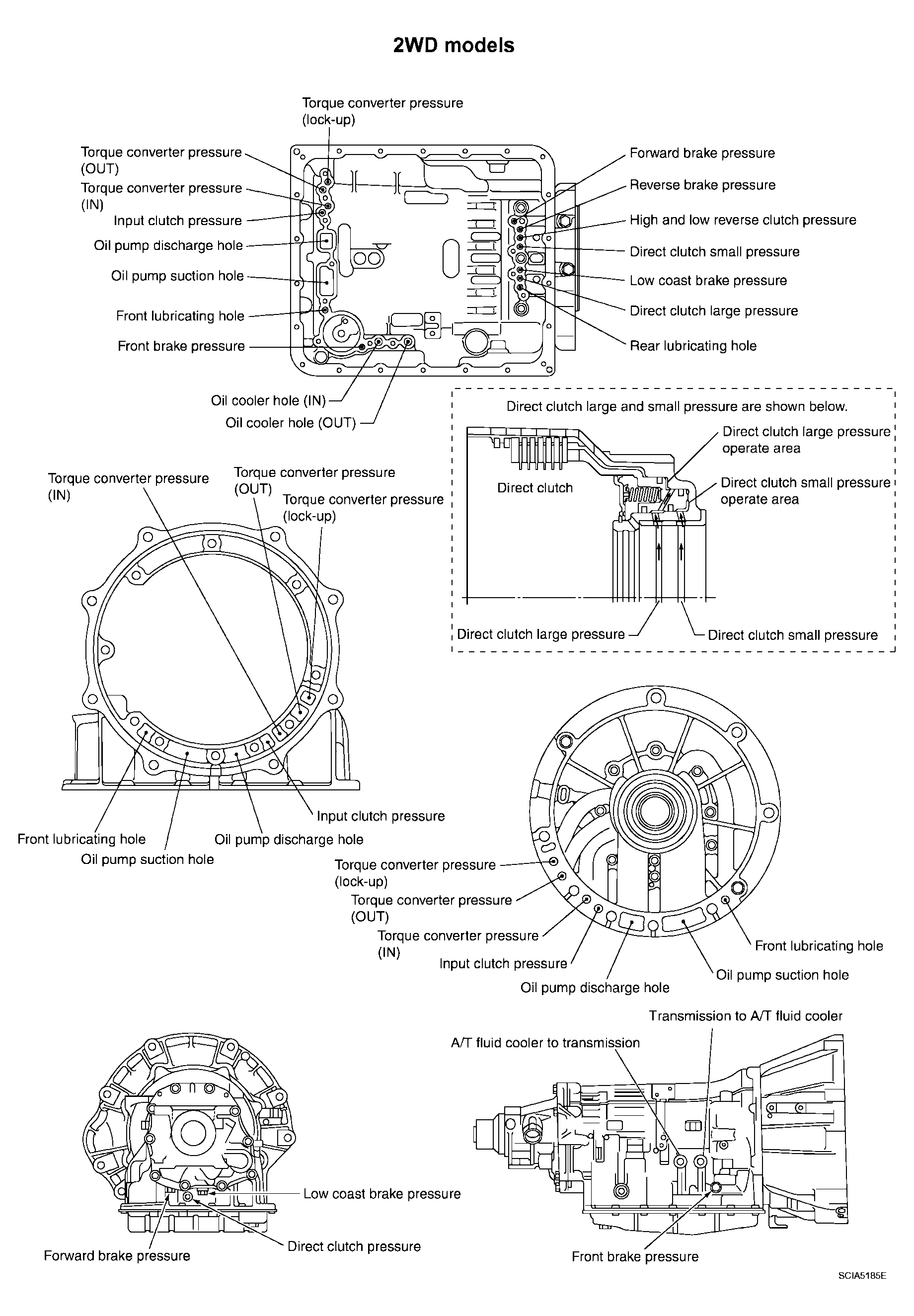

Fig 1: Identifying Oil Channel Components (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

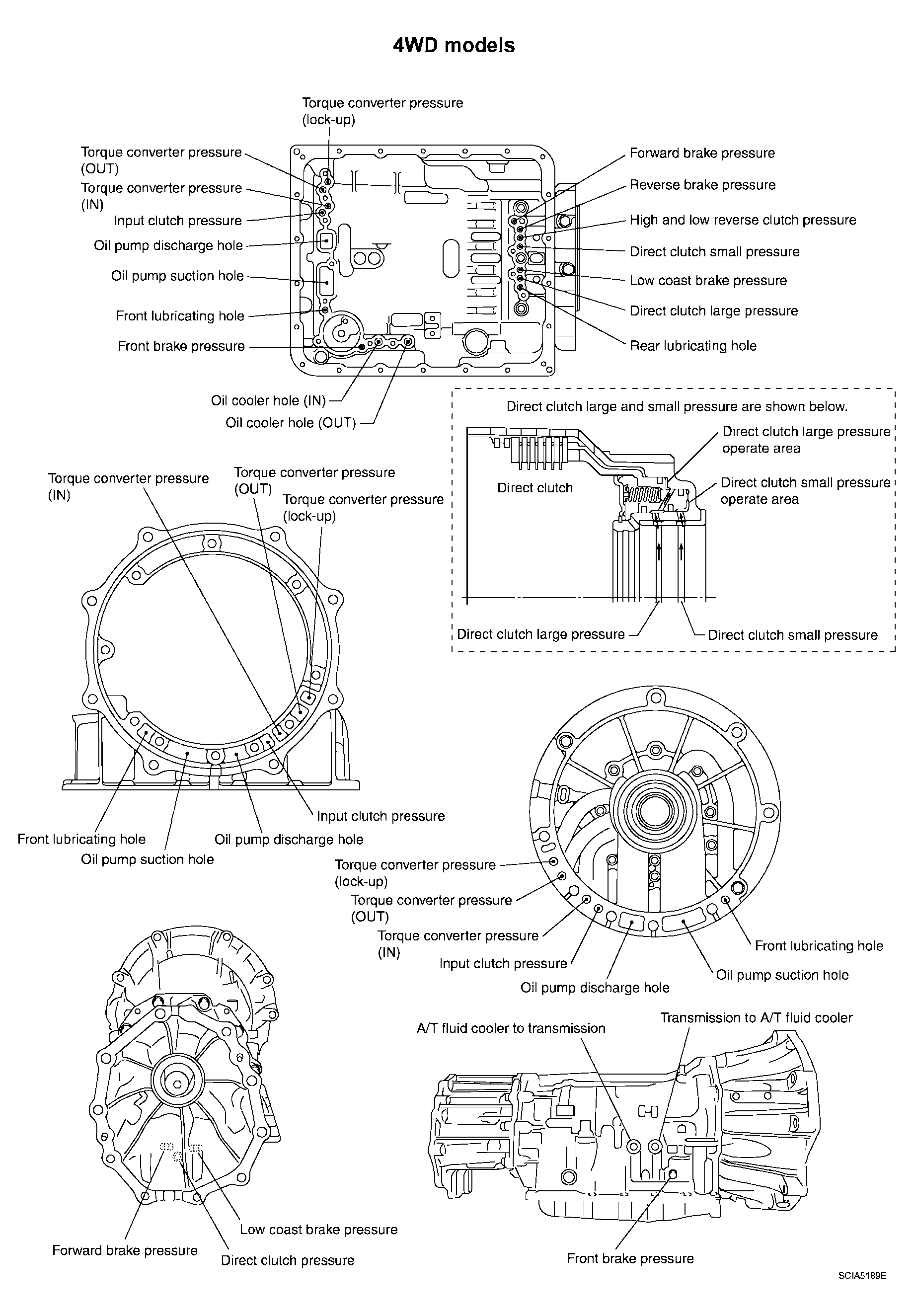

Fig 2: Identifying Oil Channel Components (4WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
