Combination Meter: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH ".
  3. Remove cluster lid A.
  4. Remove screws using power tool and remove the combination meter assembly.
    • Disconnect electrical connectors.

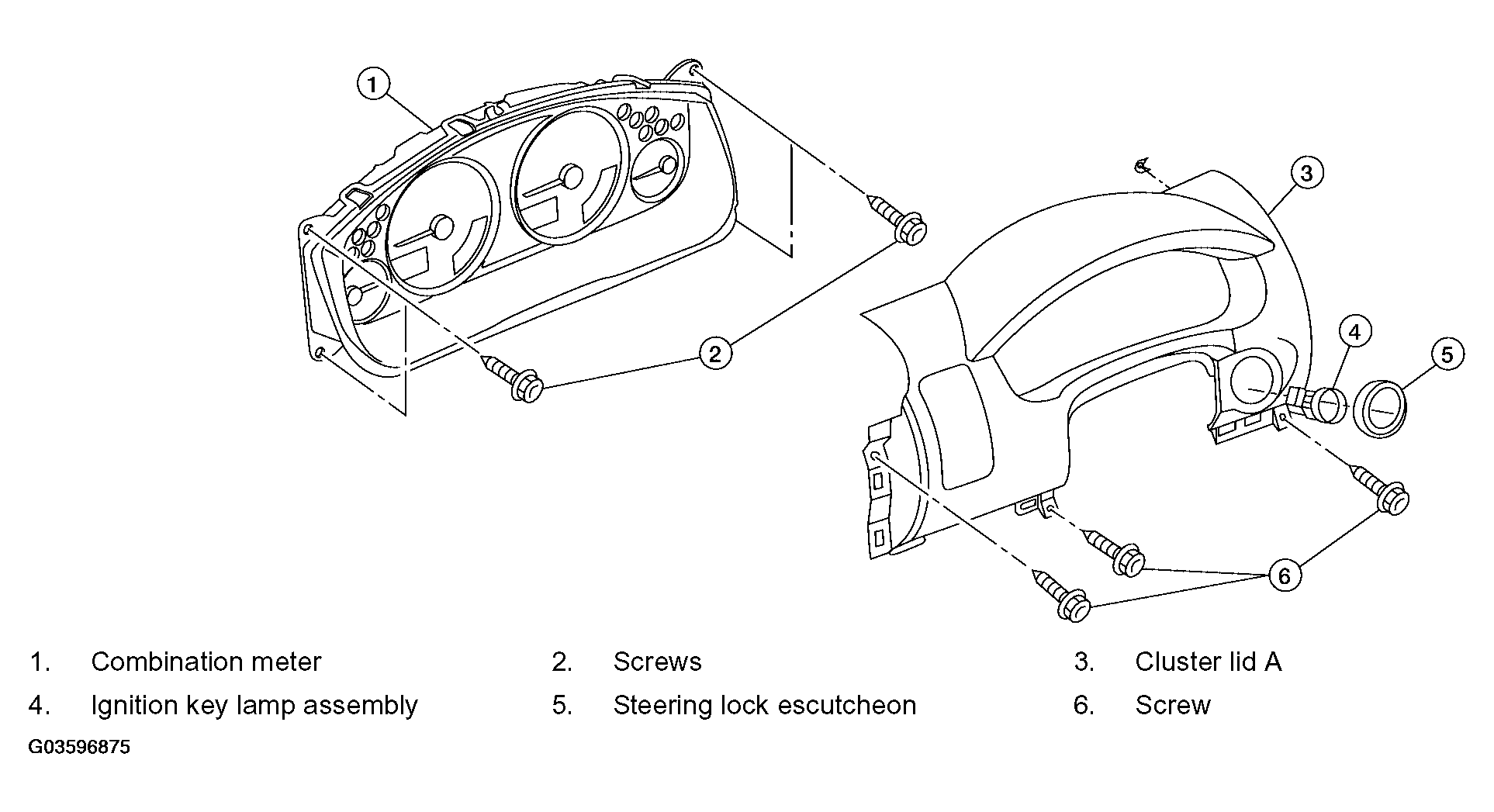

      Fig 1: Removing Combination Meter
      G03596875Courtesy of NISSAN MOTOR CO., U.S.A.
