Model 3S1330

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

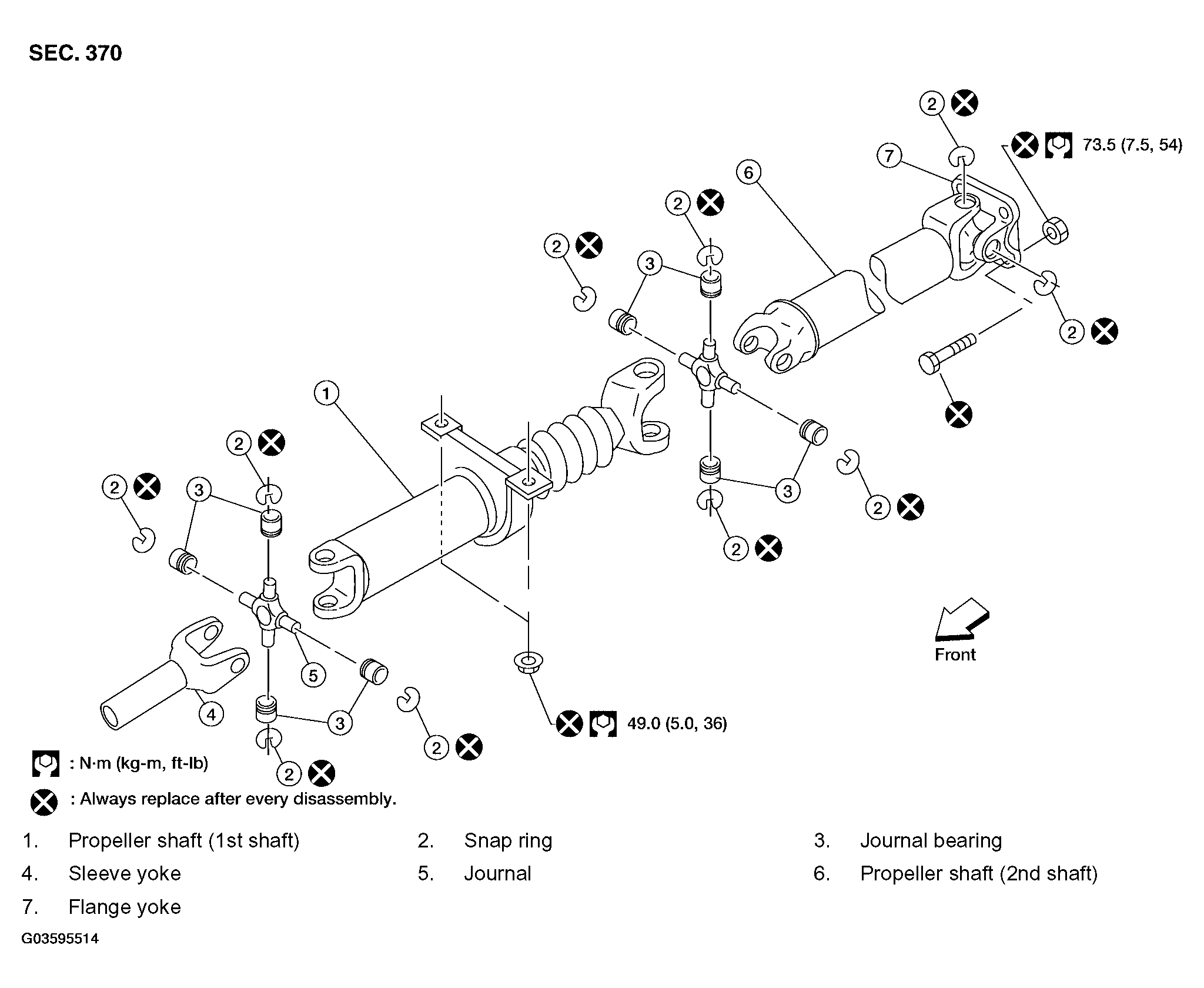

Fig 1: Propeller Shaft Replacement Components With Torque Specifications -- Model 3S1330
G03595514Courtesy of NISSAN MOTOR CO., U.S.A.
