Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the undercover using power tool.
  2. Put matching marks on the front propeller shaft flange yoke and the front final drive companion flange as shown.
    CAUTION: For matching marks, use paint. Never damage the flange yoke and companion flange of the front final drive.
  3. Put matching marks on the front propeller shaft flange yoke and the transfer companion flange.
    CAUTION: For matching marks, use paint. Never damage the flange yoke and companion flange of the front final drive.
  4. Remove the bolts and then remove the front propeller shaft from the front final drive and transfer.

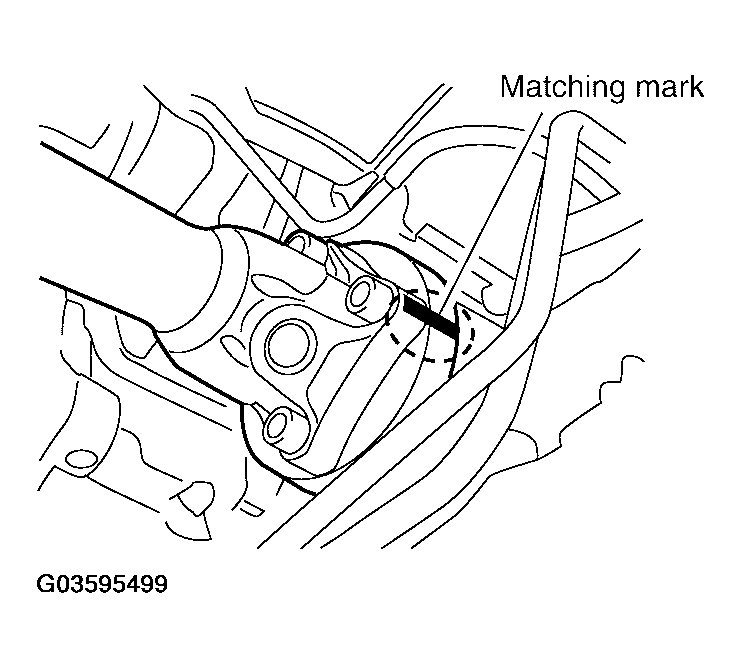

    Fig 1: Identifying Matching Marks On Front Propeller Shaft Flange Yoke And Transfer Companion Flange
    G03595499Courtesy of NISSAN MOTOR CO., U.S.A.
