Crew Cab

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Work with front pillar outer, front pillar reinforcement, center pillar outer, center pillar reinforcement, and rear pillar outer removed.

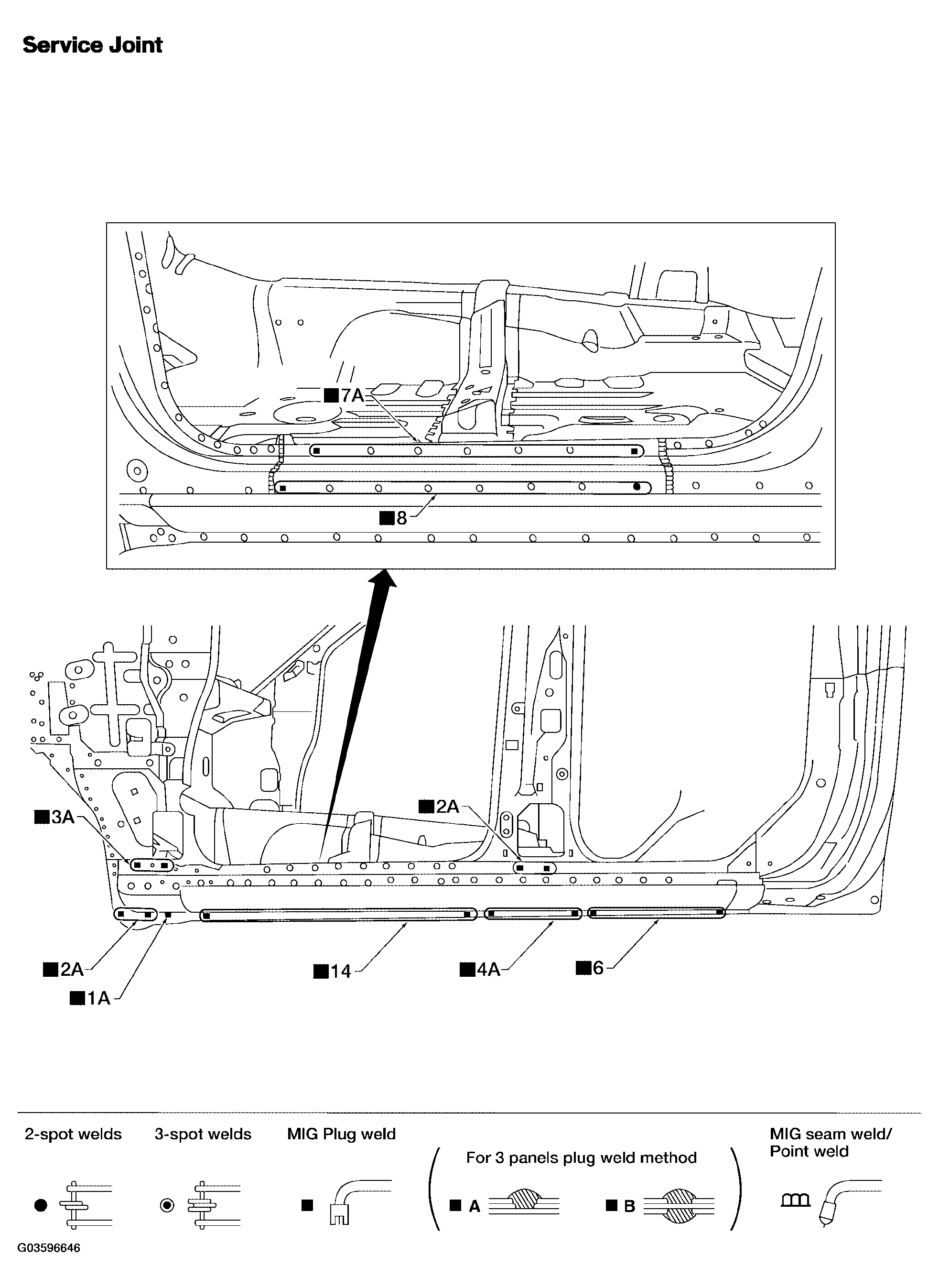

Fig 1: Identifying Outer Sill Service Joint (Crew Cab)
G03596646Courtesy of NISSAN MOTOR CO., U.S.A.
