Oil Channel

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

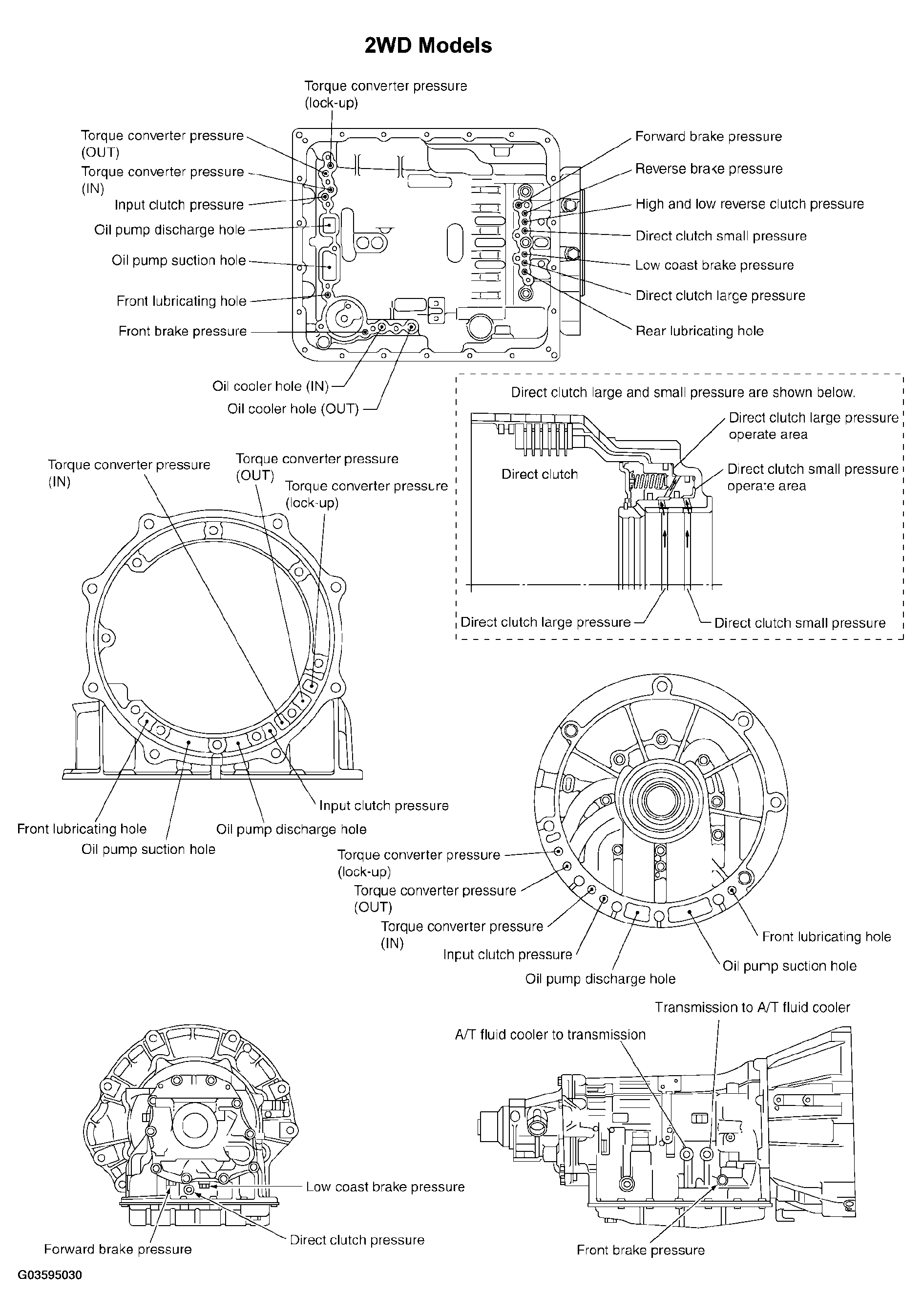

Fig 1: Identifying Transmission Oil Channels (2WD Models)
G03595030Courtesy of NISSAN MOTOR CO., U.S.A.

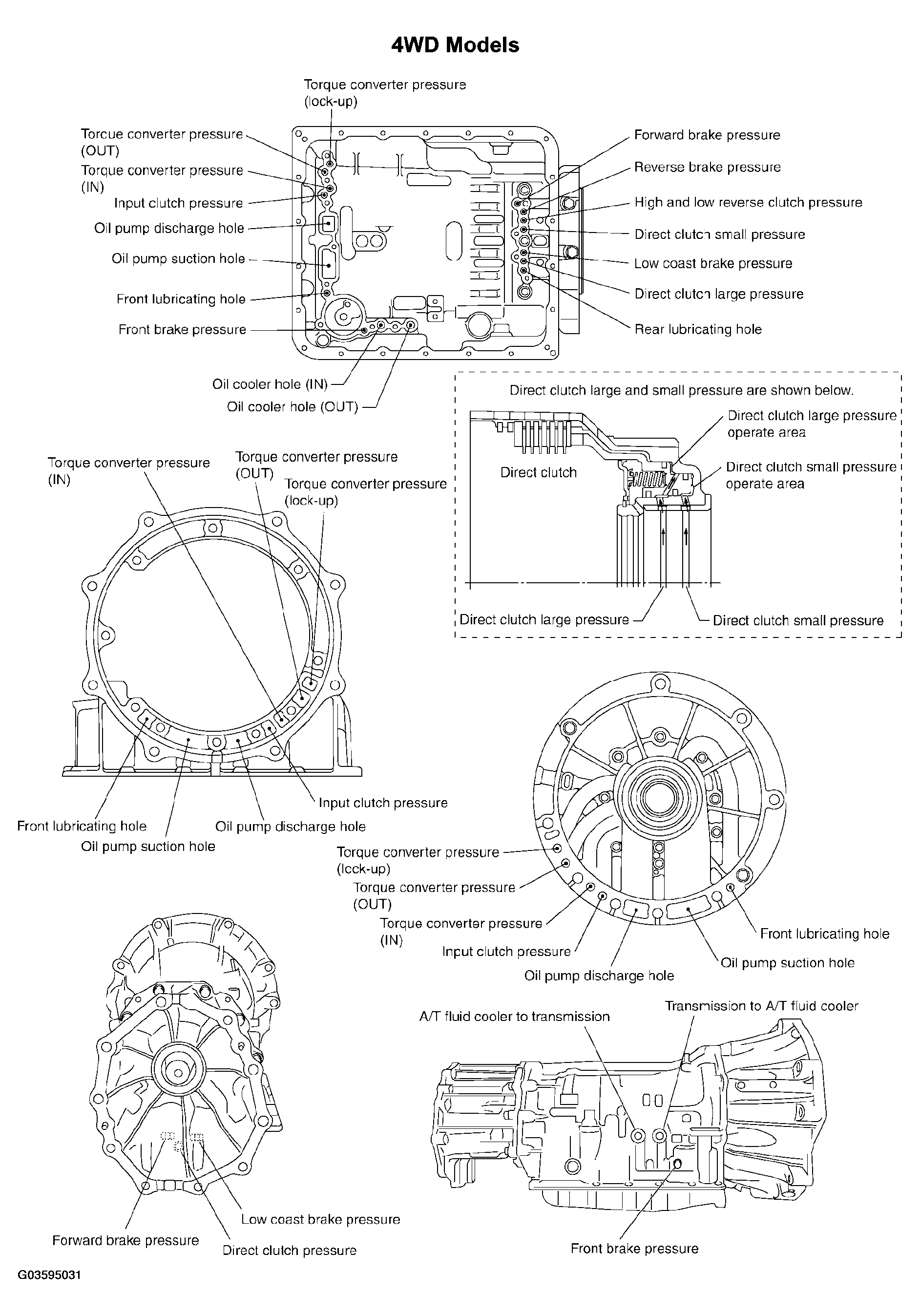

Fig 2: Identifying Transmission Oil Channels (4WD Models)
G03595031Courtesy of NISSAN MOTOR CO., U.S.A.
