With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  3. Start engine and wait for at least 6 seconds.

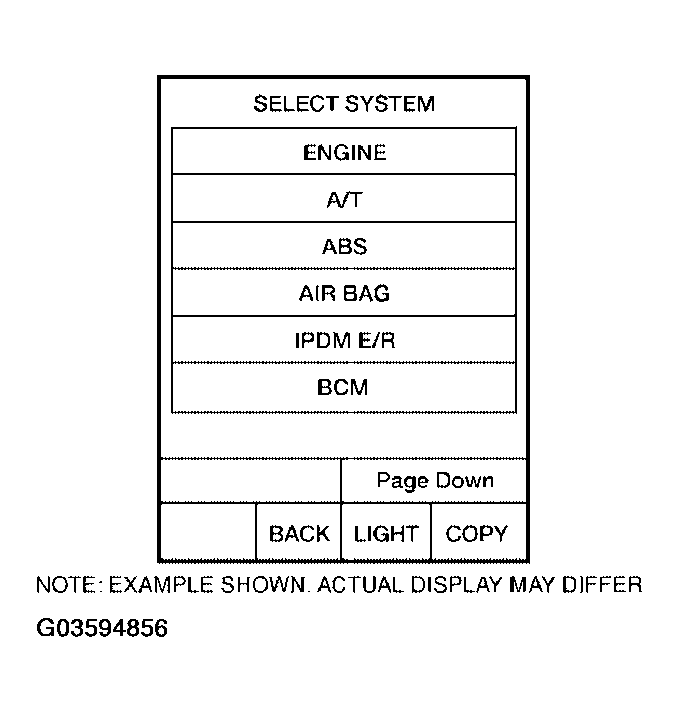

    Fig 1: CONSULT-II Display - Select System, Engine
    G03594856Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
