Changing Transfer Fluid: Draining

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Stop engine.
  2. Remove the drain plug and gasket. Drain the fluid.
  3. Install the drain plug with a new gasket to the transfer. Tighten to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse gasket.

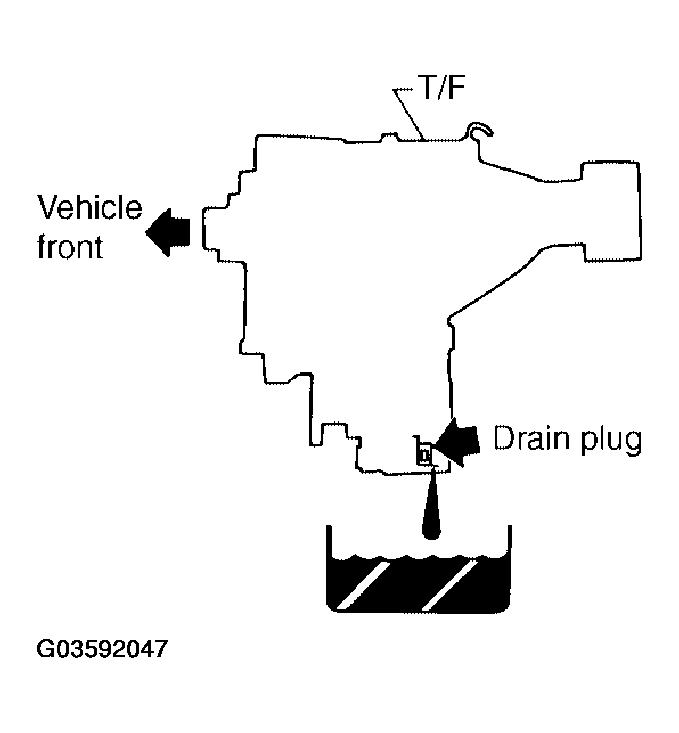

    Fig 1: Changing Transfer Fluid
    G03592047Courtesy of NISSAN MOTOR CO., U.S.A.
