Trouble Diagnoses with Battery/Starting/Charging System Tester: Notes

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To ensure a complete and thorough diagnosis, the battery, starter and generator test segments must be done as a set from start to finish.

Turn off all loads on the vehicle electrical system.
Perform battery test with Battery/Starting/Charging system tester. Refer to "TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER ".
Press "ENTER" to begin the starting system test.

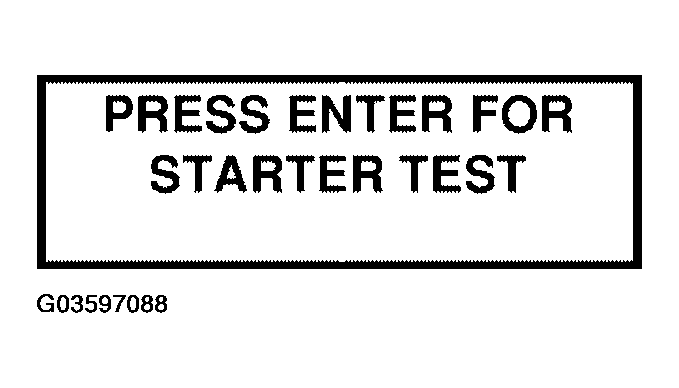

Fig 1: Trouble Diagnoses - Battery/Starting/Charging System Tester Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Start the engine.

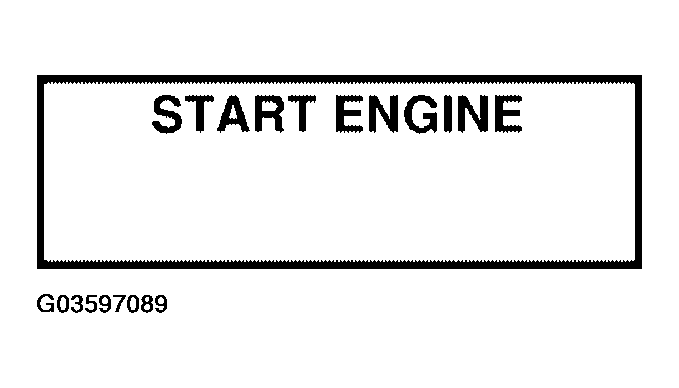

Fig 2: Trouble Diagnoses - Battery/Starting/Charging System Tester Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Diagnosis result is displayed on the tester. Refer to "DIAGNOSTIC RESULT ITEM CHART "
NOTE:
- If the starter performs normally but the engine does not start, perform engine diagnosis.
- For intermittent "NO CRANK" or "NO STARTER OPERATION" incidents, refer to "DIAGNOSTIC PROCEDURE 2 ".

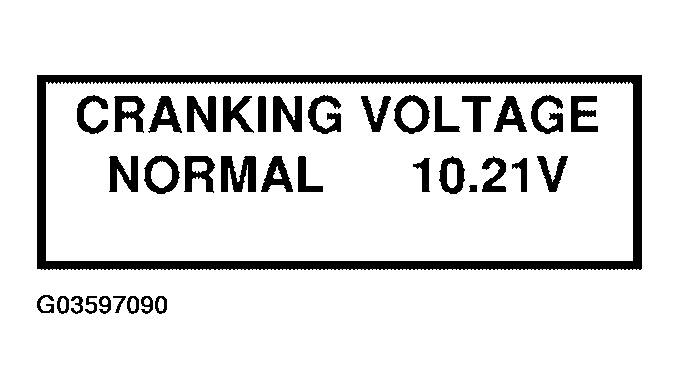

Fig 3: Trouble Diagnoses - Battery/Starting/Charging System Tester Display (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
